What is a cat.8 stp 5 angle field termination plug?

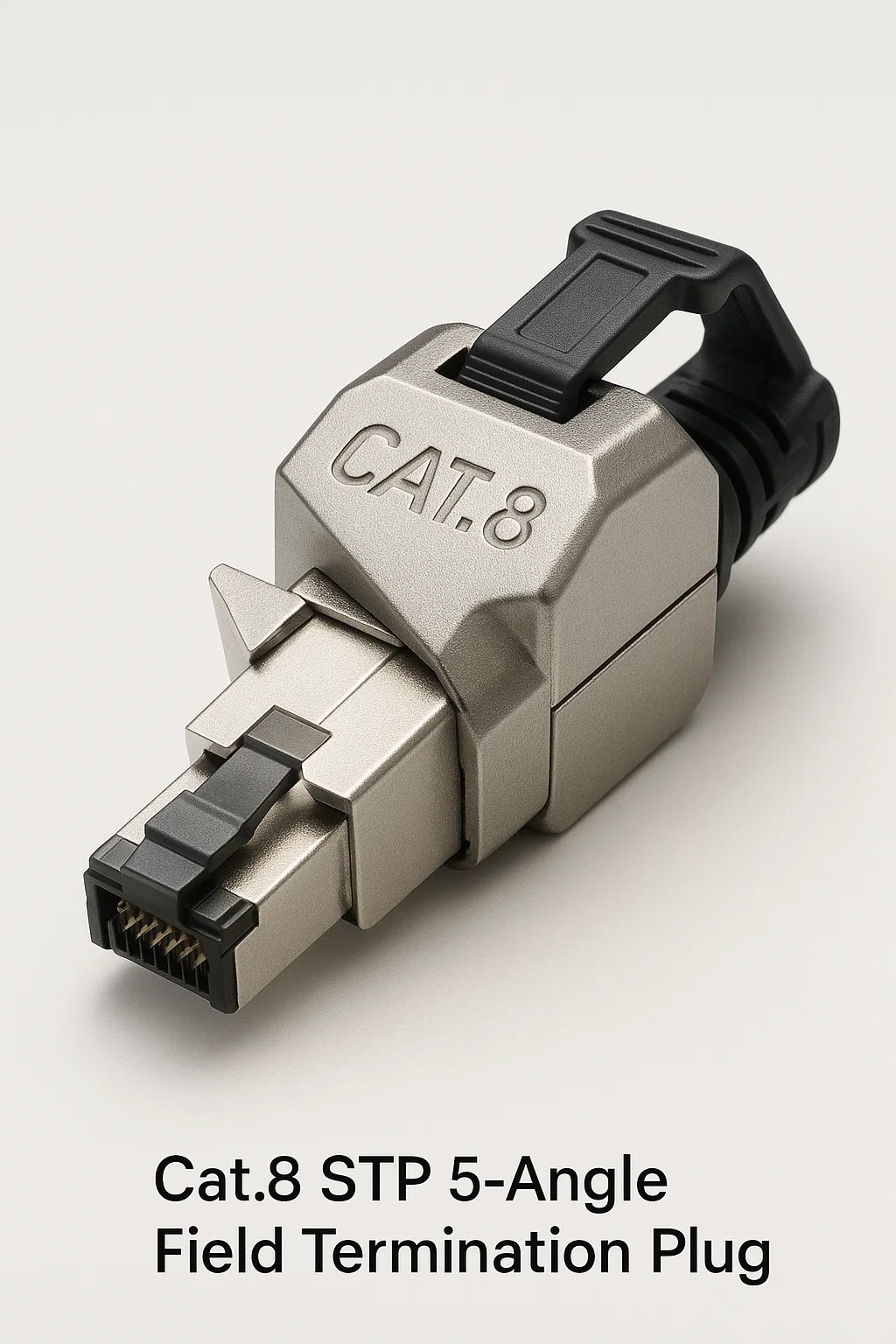

Cat.8 STP 5-Angle Field Termination Plug

1. Core Design Purpose
Space Optimization: 45° angled plug body routes cables sideways, avoiding obstruction in cramped installations (e.g., server rack rear ports).
High-Density Shielding: Combines dual-layer STP shielding (individual pair foil + overall braid) with angled grounding contacts to maintain EMI defense.

2. Structural Features
Precision Angled Insert
Metalized insert rotates signal paths 45° internally, preserving impedance without sharp bends.
Reinforced Strain Relief
Pivoting clamp secures cable while allowing ±30° directional adjustment post-installation.
Industrial Shell
Zinc alloy housing with IP67 seal (optional) resists impact, dust, and moisture.

3. Termination Process
Shield Preparation
Peel back overall braid, trim pair foils to expose 3mm for contact with plug’s grounding rings.
Conductor Handling
Insert wires into keyed IDC slots with < 0.3mm untwist – misalignment fails 40Gbps tuning.
Grounding Sequence
Secure pair shields to internal terminals.
Fold overall braid over grounding collar.
Snap-shut shield cap for 360° coverage.

4. Deployment Scenarios
Data Centers: Top-of-rack switches with vertically stacked ports.
Robotics: Articulated arms requiring cable flexibility.
Military/Aerospace: Vibration-heavy enclosures with space constraints.

5. Critical Advantages
Versus Straight Plugs    • Saves 60% lateral space• Reduces cable torque at ports
Versus Adapters    • Eliminates extra connection points• Preserves signal integrity for 2000MHz

6. Installation Warnings
Bend Radius Control
Maintain ≥8x cable diameter before/after plug; sharp bends induce return loss.
Grounding Verification
Test shield continuity (0.1Ω max) – angled designs risk ground gaps.
Tool Restrictions
Requires low-profile punch-down tool for side-access clearance.

7. Limitations
No Field Repairs: Damaged contacts require full plug replacement.
Port Compatibility: Fails in shallow-depth sockets (e.g., legacy switches).
Cost: 3× premium over standard Cat.8 plugs.

8. Manufacturer Notes
Specialized Brands: Siemon (360° MAX), TE Connectivity (Industrial iQ45), Panduit (Angled Twisted-Pair).
Avoid Generic Clones: Knockoffs lack impedance-matched internals.
