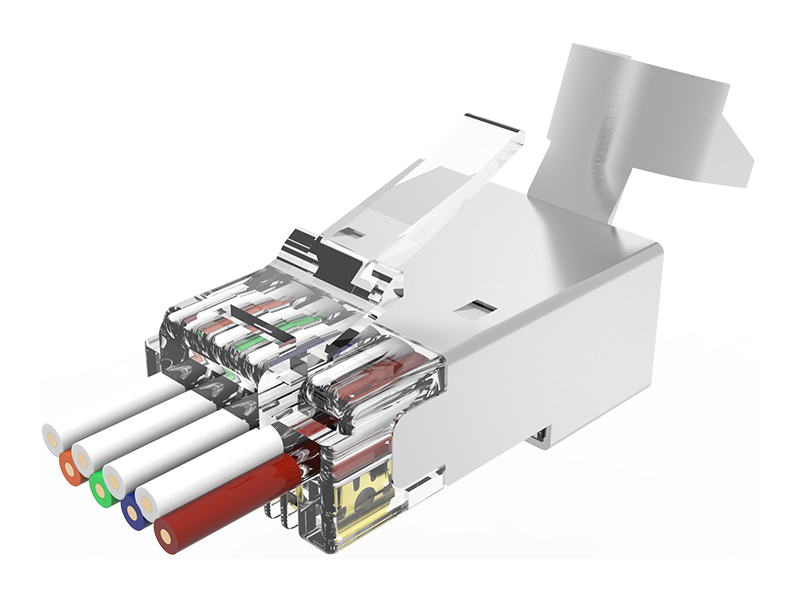

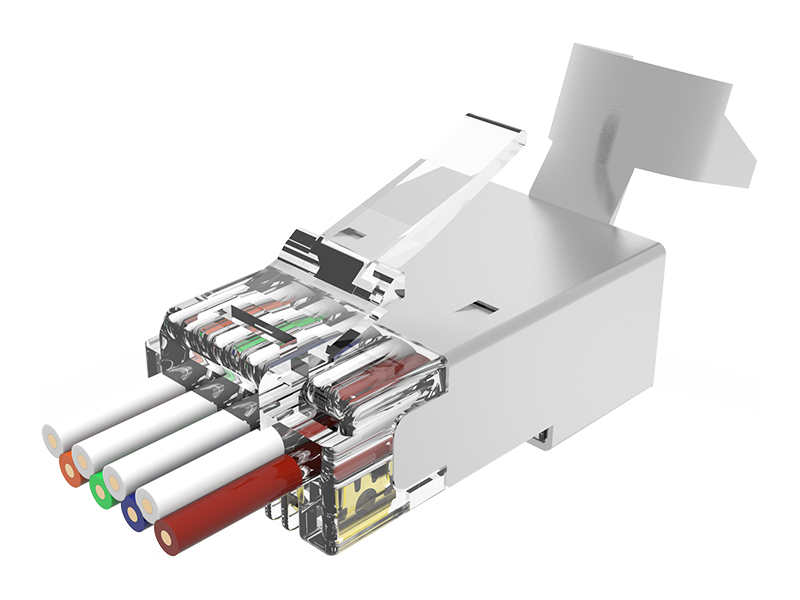

Fat OD Passthrough Plug

EXW high quality Passthrough type Cat.6A STP plug with pass through hole and it is easy for assembly.

EXW Big Cable Solution ( Big OD modular plug + Big OD strain relief + hand tool)

● Comply with ISO/IEC 11801-1 & ANSI/TIA-568.2-D

● Follow IEC 60603-7 series for RJ45 8-Way Connector

● Plug with 1.5MM Wire OD for Fat OD Cable
● Different Gold Thickness Available (50u",30u",15u",6u",3u" , flash)

● Mating Cycles: Up to 1200 Times

● Suitable for 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

● Cable Wire Gauge : 22AWG to 26AWG

● Cable Outer Diameter : 6.0 to 8.5mm

● UL / POE+ / CE Certified & Comply with RoHS & REACH

● Complete Solution for Fat OD Cable (with Special Designed Tool, Fat OD Boot, Fat OD Plug)

Each modular plug is inspected by AOI machine (Automatic Optic Inspection) to guarantee the quality. We have complete production lines with flexible lead-time.

Welcome OEM/ODM case. EXW is Your Best Choice!



Standards & Features

Features:

● Comply with ANSI/TIA-568.2-D & ISO/IEC 11801
● Suitable for 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications
● Comply with requirements of ANSI/TIA-1096-A (FCC Part 68)
● Comply with IEC 60603-7 series for RJ45 8-way connector
● Comply with UL 1863

Product Description

• Part No. & Description
P88R5Z50V2SIT-3YEZ : Fat OD EZ modular plug designed for  Cat.7/Cat.6A Solid & Stranded STP lan cable.
Quality Assurance
Each modular plug is inspected by AOI machine (Automatic Optic Inspection) to guarantee the quality.
Certificate
UL/4PPoE Certified & Comply with RoHS & REACH
Application
Meet the stringent requirement of LAN and sustain a consistent impedance at high frequencies up to 500MHz.
Different Color Available
Standard Package Rate

Spec.

Packing Rate (pcs)

N.W(KG)

G.W(KG)

Packing Method

Carton Size

Fat OD Plug

3,400

12.96

14.26

100pcs/blister box

516*362*320MM(0.06CBM)

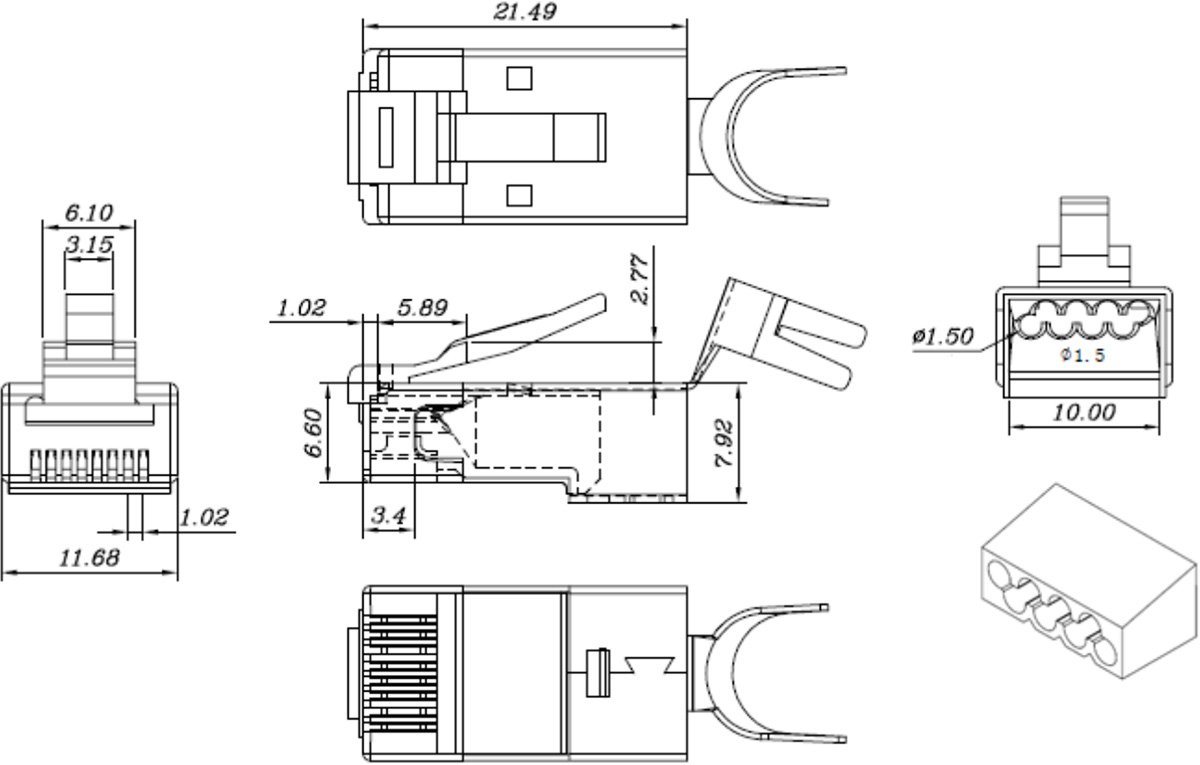

Product Constructure



 •Electrical Characteristics



UL Application:  250 Valts AC max, AT AMP
Dielectric Withstanding Voltage:   500 Volts AC
Insulation Resistance: 100MΩ
Termination: Resistance 20MΩ max after environmental testing.



 •Mechanical characteristics



Insertion Life:  750 mating cycles
Installation Temperature : 0/50℃
Operation & Storage Temperature : -20/60℃
Cable to Plug Tensile Strength: 20pound(min)
Pulling Force:    10N(max)



 •Component



Housing: Polycarbonate, UL94V-2 or UL94V-0
Gold Plating: 50u", 30u", 15u", 6u", 3u" or flash
Contact Blade: Copper Alloy
Contact: Stradded or Solid Wire, from 24 AWG to 26AWG
Color:  Transparent or other color

OEM/ODM Case

With more than 35 years history and profession R & D team,
EXW has rich experiences in producing OEM/ODM cases.
•  Customized Logo on  the Latch of Plug
•  Special Design on Package & Label
•  Different Package Rate Available
•  Different Color Available

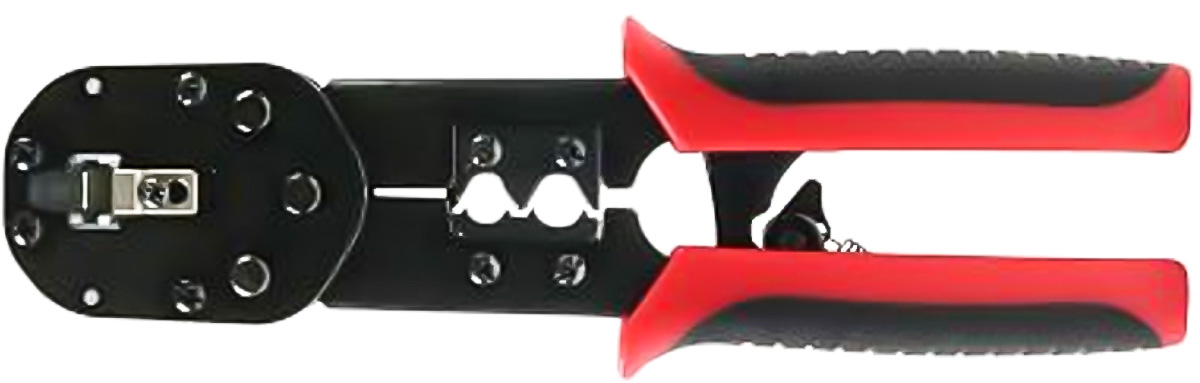

We also have the Crimping Tool for big OD plug.

Different Strain Reliefs fit with our Modular Plug.
   We also can design it according to our customer's specific demand!
