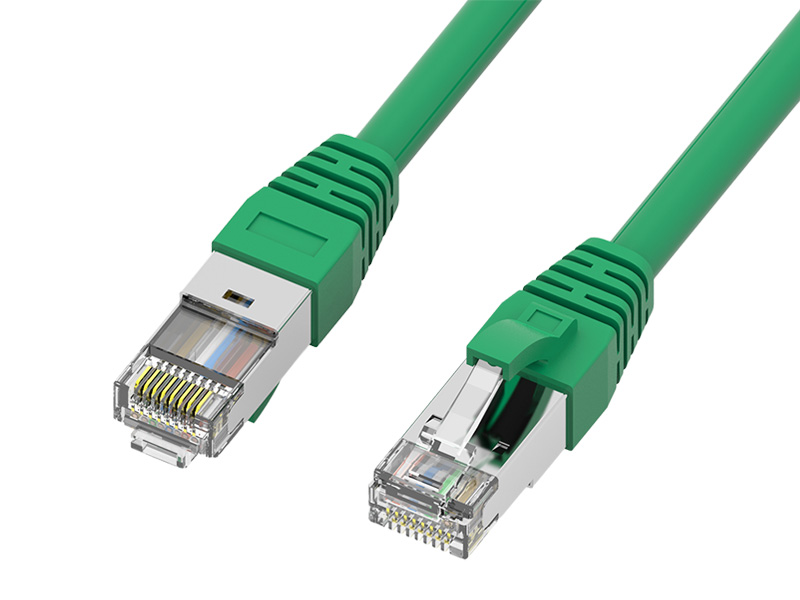

Shielded S/FTP 10G CAT.6A Patch Cord

EXW High quality Cat.6A S/FTP Patch Cord. Both ends with shielded 50U" gold thickness RJ45 male connectors. 100% component test to guarantee the quality.

● Follow ANSI/TIA-568.2-D & ISO/IEC 11801

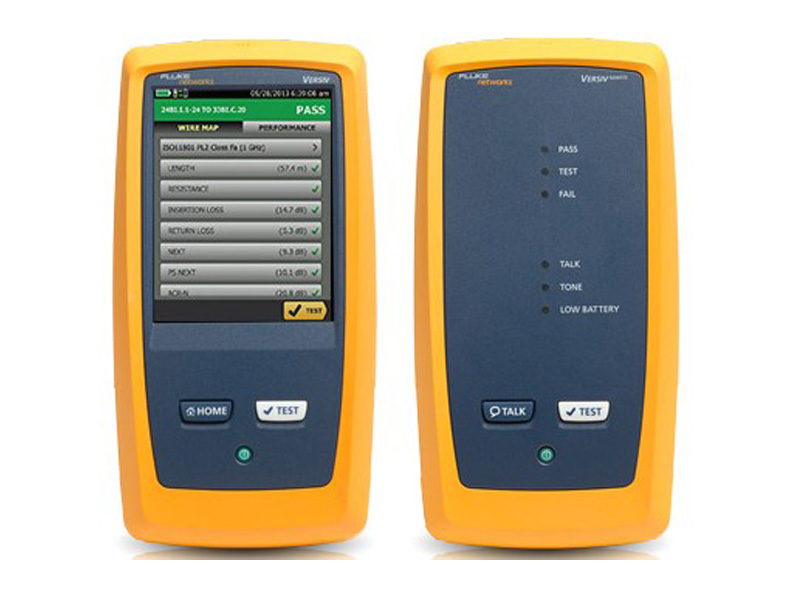

● 10G Cat.6A Patch Cord with 100% Component Test by DSX-8000 & DSX-5000

● Bare Copper with More Stable Performance

● 50U" Gold Plating RJ45 Plugs with Patented Design

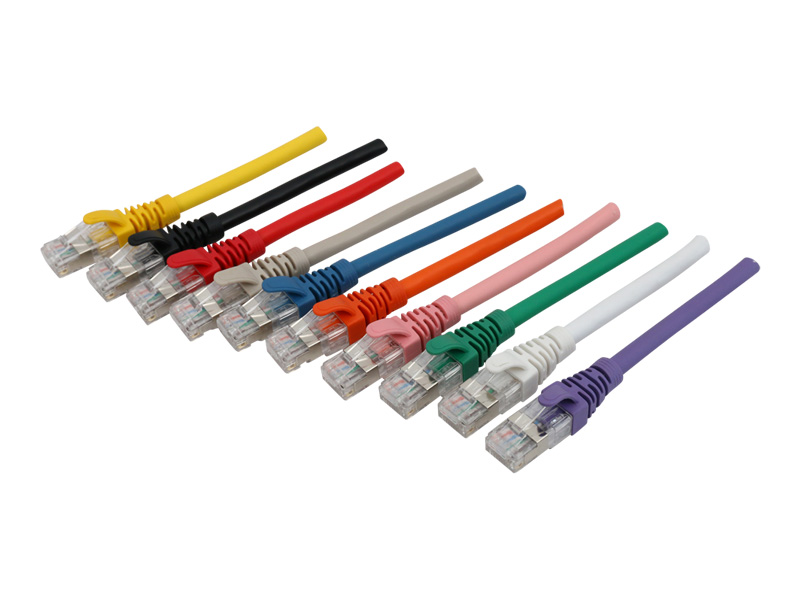

● Various Colors & Molding Available

● Mating Cycles: Up to 1200 Times

● Suitable 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

● Operation Temperature Range:-10~60 ℃

● UL / ETL / DELTA / 4PPoE / CE Certified & Comply with RoHS & REACH


Welcome OEM / ODM , EXW is Your Best Choice!

Standards & Features

EXW Patch Cords Meet the Following Standards:

● ISO/IEC 11801:2011
● ANSI/TIA-568.2-D
● ANSI/TIA-1096-A (FCC Part 68)
● EN50173-1:2011
● UL 444
● 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

Product Description

• EXW Part No. & Description
6ASSXX : Cat.6A S/FTP Stranded Round Patch Cord, Molded, PVC/LSOH/TPE/PUR
Quality Assurance
100% Cat.6A Component Test (provide original test data to our customer)
Certificate
UL/ETL/DELTA/4PPoE/CE Certified & Comply with RoHS & REACH
Application
* Ethernet Networking
* Computer Networking Project
* Audio & Data Transmission
* Digital Networking
* Broadband Networking Communication

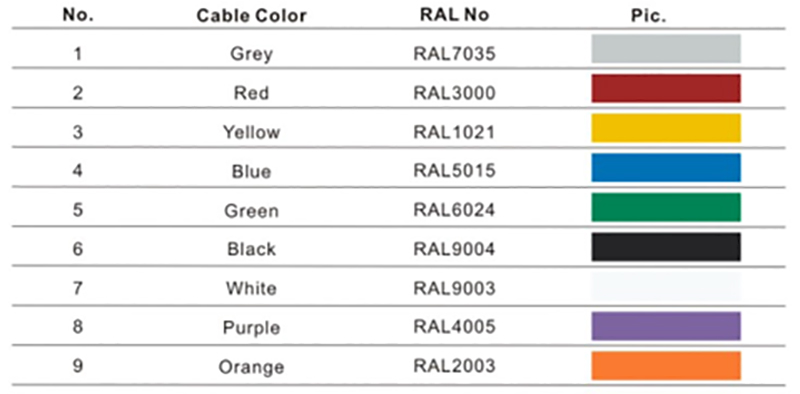

EXW Standard Color Code
 Standard Package Rate

Length(M)

Cat.6A S/FTP(pcs)

N.W(KG)

G.W(KG)

Packing Method

Carton Size

0.5

200

6.67

7.67

1pc/blank bag with label

400*375*290MM(0.0435CBM)

1

120

6.59

7.59

2

100

9.34

10.34

3

80

10.20

11.20

5

50

10.06

11.06

10

25

10.04

11.04

15

25

14.46

15.46

20

18

13.62

14.62

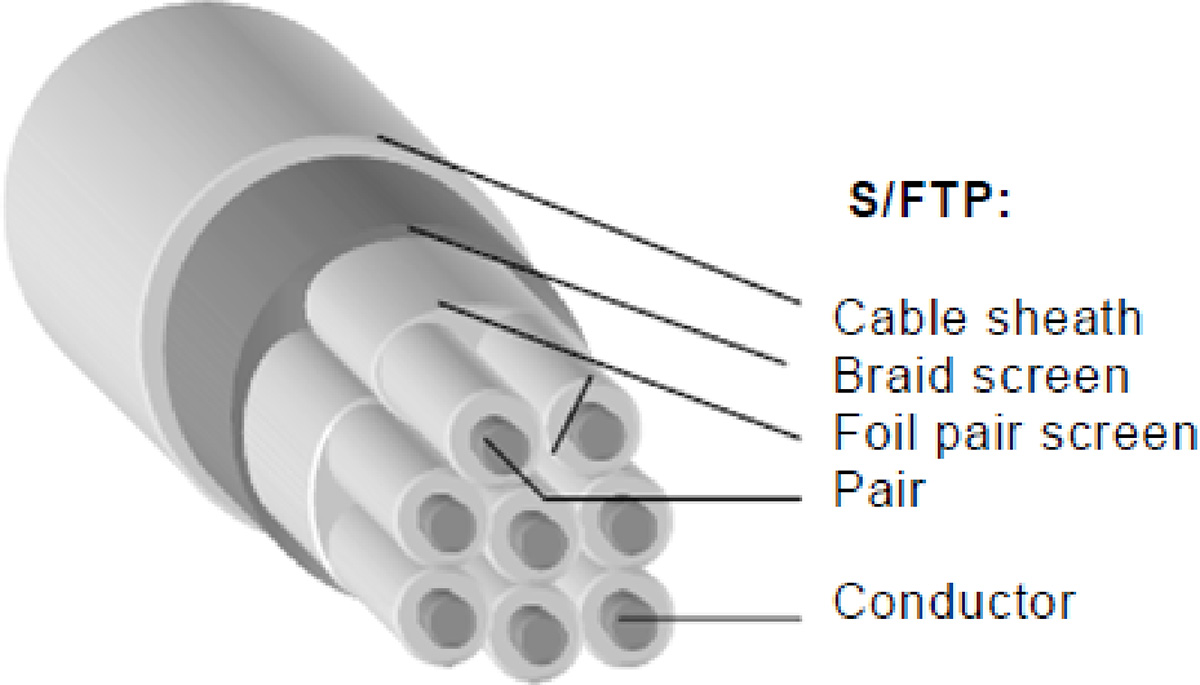

Product Constructure

Wire Colour Code
white - blue/blue
white - orange/orange
white - green/green
white - brown/brown

• Component



Conductor:

AWG 26 (Stranded Copper 7x 0.16mm),4-Pair ,8C

Insulators:

PE

Insulators Diameter:

1.02 ± 0.05mm

Braid Shield (Tinned Copper):

16/5/0.10T

Coverage:

≥40%

Jacket:

PVC/LSOH/TPE/PUR

Jacket Diameter:

6.2 ± 0.2mm



• Electrical Characteristics



NEXT Requirement:

1dB margin compared to ANSI/TIA-568.2-D

Return loss Requirement:

1dB margin compared to ANSI/TIA-568.2-D

Current Rating:

1.5 A

Insulation Resistance:

100 MΩ min

Contact Resistance:

20 mΩ max

Dielectric Strength:

500 VAC (rms)

Voltage:

72 VDC max



• Mechanical characteristics



Insertion Life:

750 mating cycles

Installation Temperature:

0/50℃

Operation & Storage Temperature:

-20/60℃

Cable to Plug Tensile Strength:

20pound(min)

Pulling Force:

10N(max)

OEM/ODM Case

With more than 35 years history and profession R & D team
EXW has rich experiences in producing OEM/ODM cases.
•  Customized Logo on Plug & Boot
•  Special Printing on Cable
•  Special Design on Package & Label

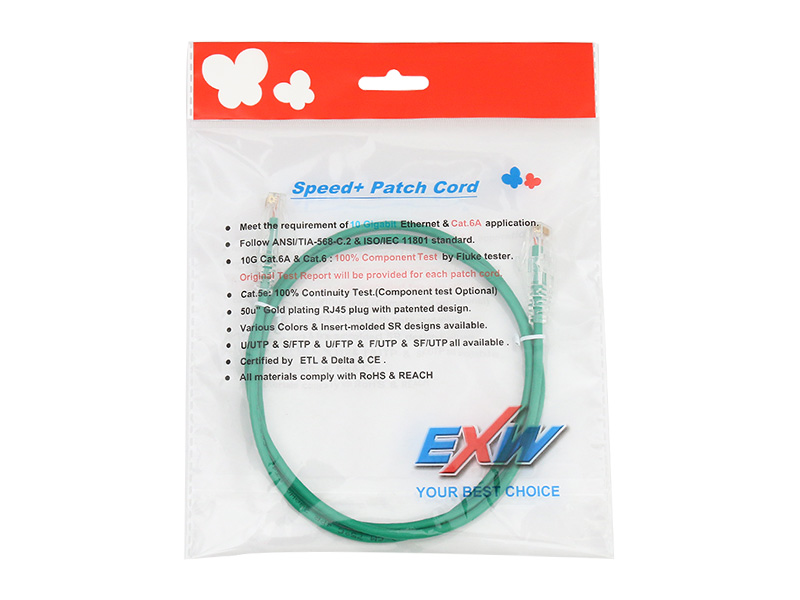

•  Independent Package
•  Different Color & Different Lengths Available

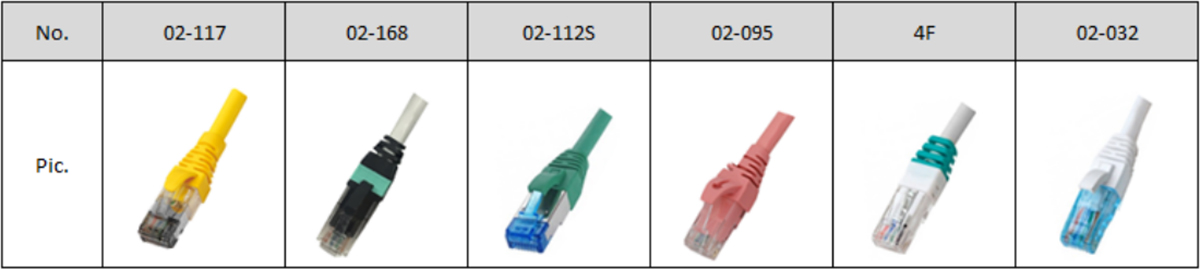

•  Different Molding/Strain Relief
   We also can design it according to our customer's specific demand!
