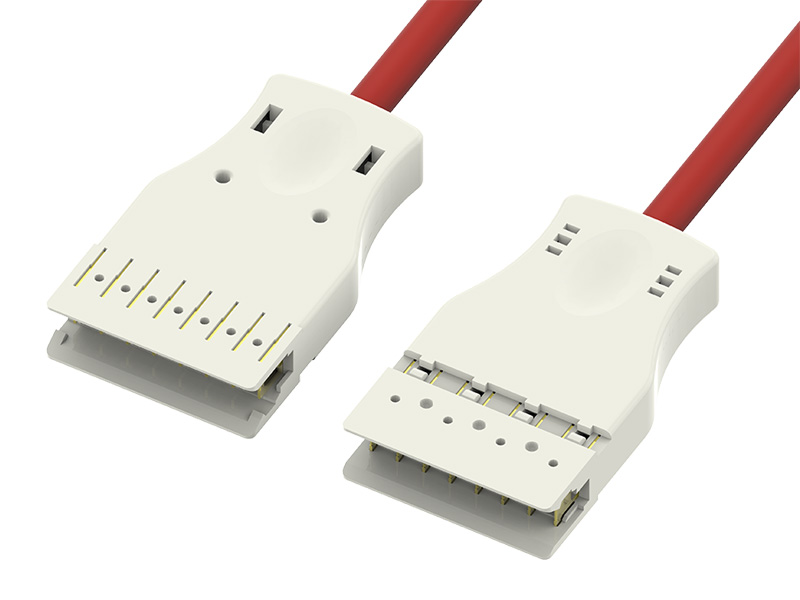

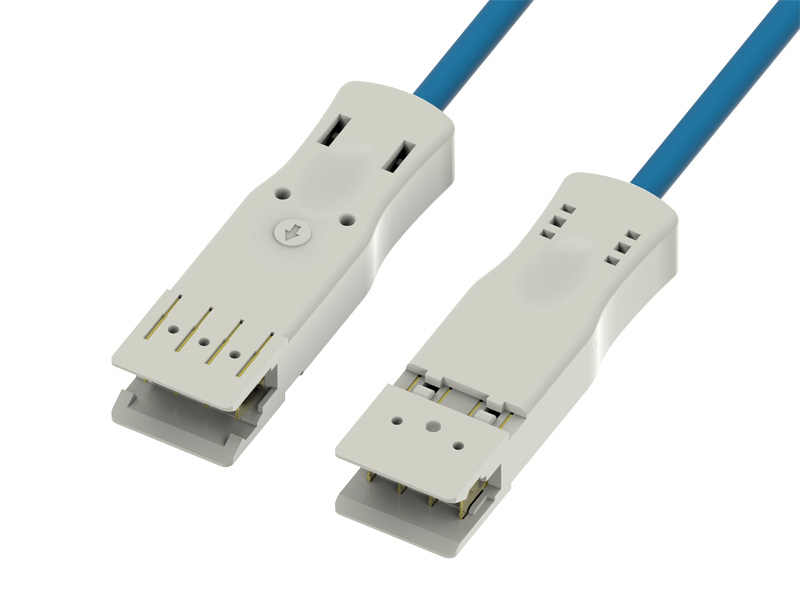

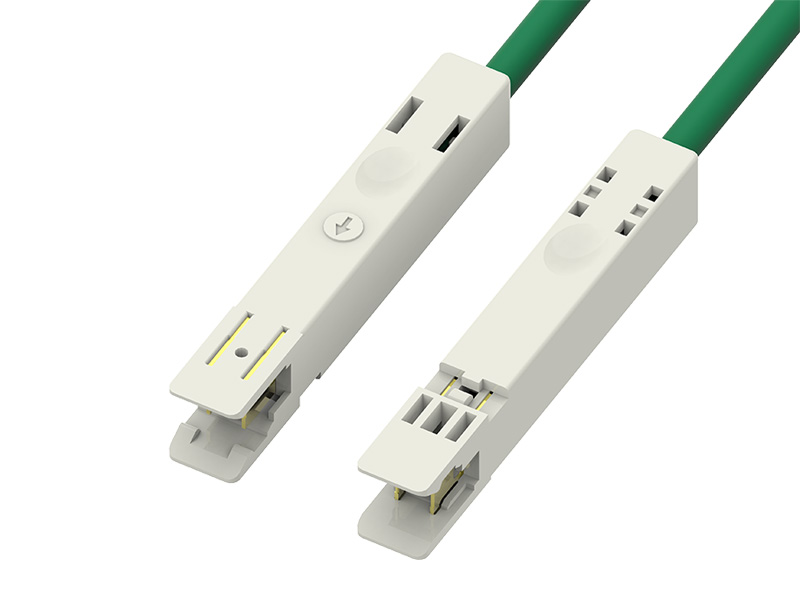

110 Patch Cord Manufacturers

Ningbo Excellence Communicated Connector Co.,Ltd.(Ningbo EXW) is a professional 110 Patch Cord Manufacturers, EXW enjoys a high reputation in the field of network accessories and is well-known all over the world! We have a complete production line including stamping, plating, injection molding, automatic insertion and assembly capabilities and an in-house engineering department and in-house tool shop. We can provide sufficient capacity and flexible delivery time. As an OEM/ODM 110 Patch Cord Factory, we specialize in wholesale 110 Patch Cord and other network accessories products, we have a strong R&D team, we design products, manufacture molds and maintain molds by ourselves. We have a reliable quality system including ISO9001, ISO14001 and ISO45001 certificates. We also have UL, DELTA, ETL, GHMT, CE and 4PPoE certificates for patch cords and modular plugs.

Industry Knowledge Development

A 110 patch cord is a type of network cable that is used to connect network devices, such as computers, switches, routers, and servers. It is called a "patch cord" because it is used to patch or connect two devices together temporarily.

The "110" in the name refers to the type of connector that is used on the ends of the cable. The 110 connector is a type of insulation displacement connector (IDC) that is commonly used in telecommunications and network wiring. It is a punch-down connector that allows wires to be terminated without the need for stripping or soldering.

A 110 patch cord typically has an RJ45 connector on one end, which is used to connect to the network device, and a 110 connector on the other end, which is used to punch the wires down onto a patch panel or wall jack. The cable itself is typically made of twisted pair copper wire and is available in various lengths.

110 patch cords are commonly used in structured cabling systems, which are designed to provide a reliable and flexible network infrastructure for businesses and organizations. They are often used to connect network devices to patch panels or wall jacks in a data center or telecommunications room, allowing for easy reconfiguration and troubleshooting.

The craft of making a 110 patch cord involves several steps, including:
Cutting the cable to the desired length: The first step is to cut the twisted pair copper cable to the desired length using a cable cutter or scissors. It is important to ensure that the ends of the cable are cut cleanly and evenly to ensure a good connection.

Stripping the cable: The next step is to strip the insulation off the ends of the cable to expose the individual wires. This can be done using a wire stripper or a sharp knife, taking care not to damage the wires.

Sorting and arranging the wires: Once the wires are exposed, they need to be sorted and arranged in the correct order. This is usually done according to the T568B or T568A standard, which specifies the color-coding for each wire.

Terminating the wires: The wires are then terminated onto the 110 connector using a punch-down tool. This involves inserting each wire into the appropriate slot on the connector and punching it down with the tool to make a secure connection.

Attaching the RJ45 connector: Finally, an RJ45 connector is attached to the other end of the cable using a crimping tool. The wires are inserted into the connector in the correct order, and the connector is crimped onto the cable to make a secure connection.

Overall, the craft of making a 110 patch cord requires skill and attention to detail to ensure a high-quality and reliable connection.
