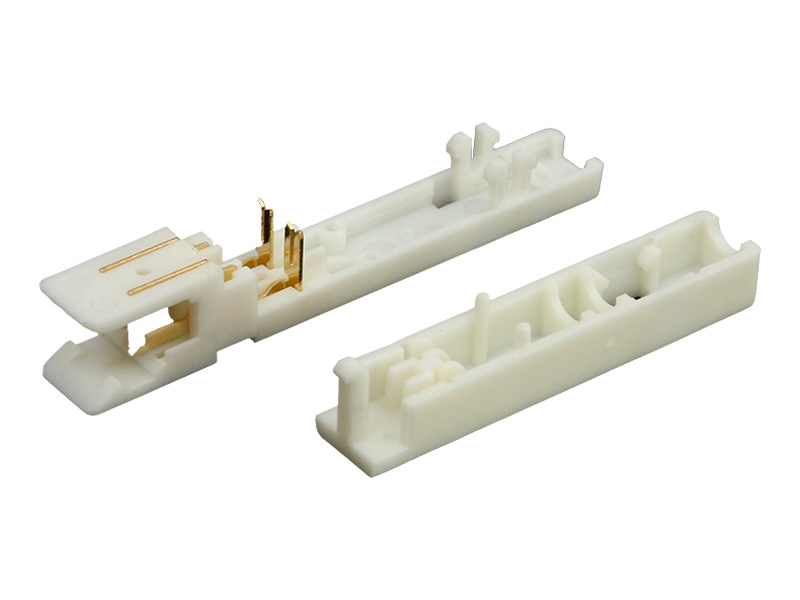

1 Pair 110 Patch Cord

EXW 110 patch cords include 4 pairs, 2 pairs, 1 pair.

Meet the date & fax & voice application. Different Colors are available.

● Meet the Date & Fax & Voice Application

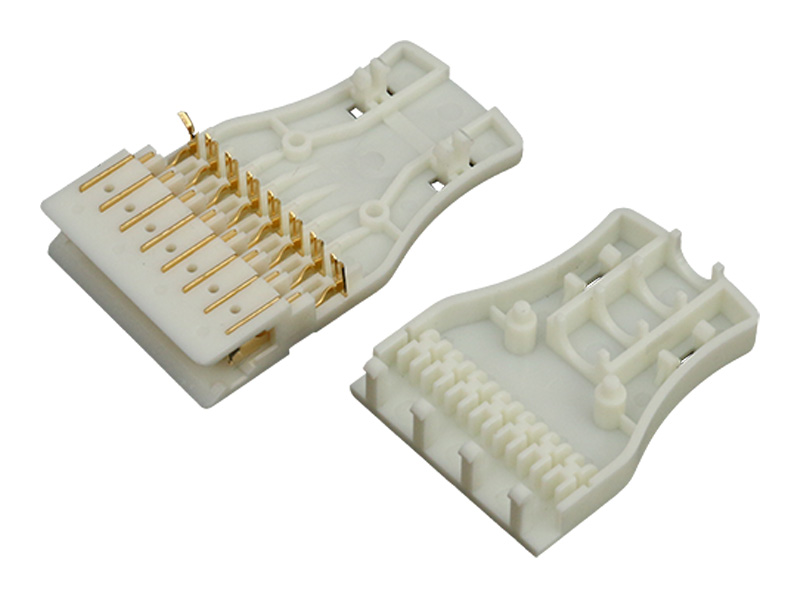

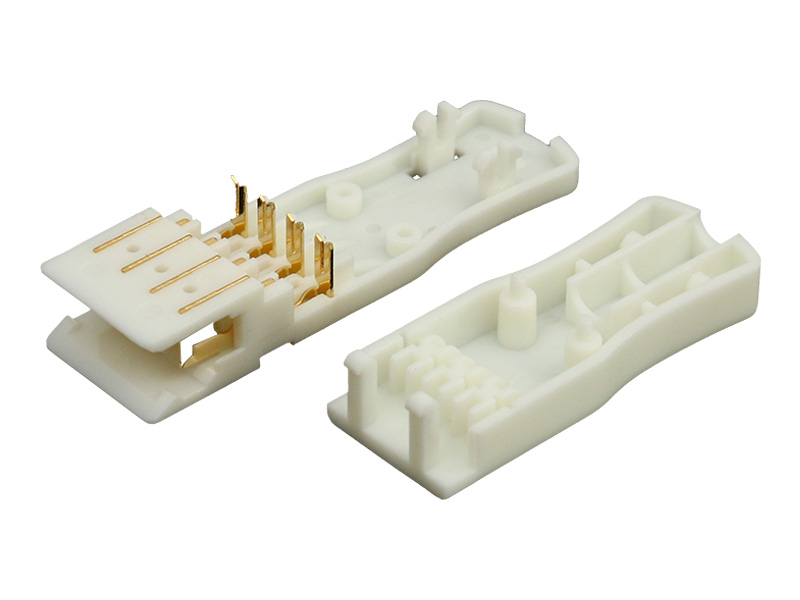

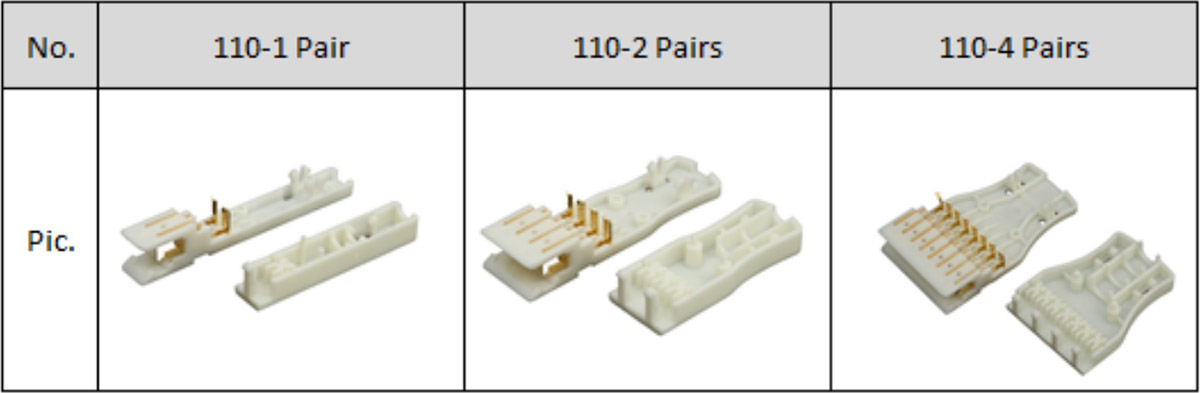

● 110 4Paris / 2 Pairs / 1 Pair Patch Cords Available

● Bare Copper with More Stable Performance

● Connector Color: Transparent / Ivory Color for Option

● Certified by CE

● Comply with RoHS & REACH

● Operation Temperature Range:-10~60 ℃

OEM/ODM Welcome, EXW is Your Best Choice!

Standards & Features

EXW 110 Patch Cords Meet the Following Standards:

● Comply with RoHS & REACH
● UL94 V0 or UL94 V2 Available
● 100% Inspection before Shipment
● 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

Product Description

• EXW Part No. & Description
5EUTXX110 : Cat.5E U/UTP 110-110 4Pairs  Stranded Round Patch Cord
Quality Assurance
100% Continuity Test (Component Test  Optional)
Certificate
UL/ETL/DELTA/4PPoE/CE Certified & Comply with RoHS & REACHCH
Application
* Ethernet Networking
* Computer Networking Project
* Audio & Data Transmission
* Digital Networking
* Broadband Networking Communication
 EXW Standard Color Code
 Standard Package Rate

Length(M)

Cat.SE UTP (pcs)

N.W(KG)

G.W(KG)

Packing Method

Carton Size

0.5

300

7.48

8.48

1pc/blank bag with label

400*375*290MM(0.0435CBM)

1

200

8.25

9.25

2

120

9.12

10.12

3

100

11.31

12.31

5

60

10.01

11.01

10

40

13.01

14.01

15

25

12.08

13.08

20

20

13.59

14.59

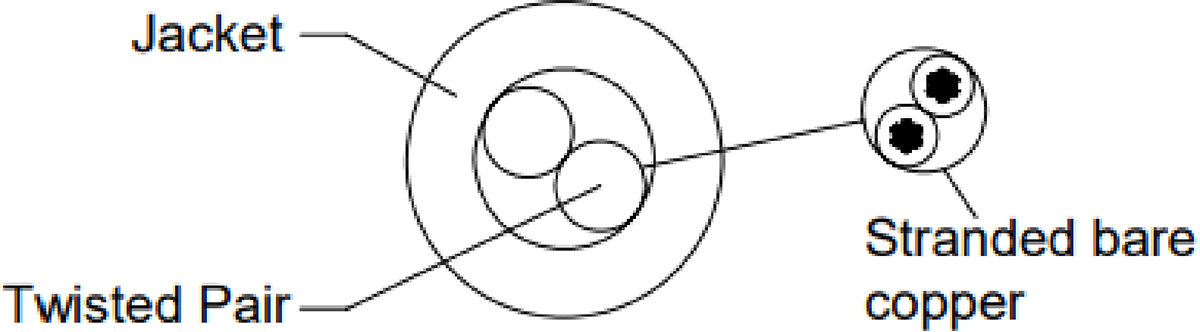

Product Constructure

Wire Colour Code
white - blue/blue
white - orange/orange
white - green/green
white - brown/brown

• Component



Conductor:

AWG 24 (Stranded Copper 7x 0.2mm),4-Pair ,8C

Insulators:

PE

Insulation Diameter:

0.97 ± 0.05mm

Nom. Thickness:

0.18mm

Jacket:

PVC/LSOH/TPE/PUR

Jacket Diameter:

5.5 ± 0.2mm



• Electrical Characteristics



NEXT Requirement:

1dB margin compared to ANSI/TIA-568.2-D

Return loss Requirement:

1dB margin compared to ANSI/TIA-568.2-D

Current Rating:

1.5 A

Insulation Resistance:

100 MΩ min

Contact Resistance:

20 mΩ max

Dielectric Strength:

500 VAC (rms)

Voltage:

72 VDC max



• Mechanical characteristics



Insertion Life:

750 mating cycles

Installation Temperature:

0/50℃

Operation & Storage Temperature:

-20/60℃

Cable to Plug Tensile Strength:

20pound(min)

Pulling Force:

10N(max)

OEM/ODM Case

With more than 35 years history and profession R & D team
EXW has rich experiences in producing OEM/ODM cases.
•  Customized Logo on Plug & Boot
•  Special Printing on Cable
•  Special Design on Package & Label
•  Independent Package
•  Different Color & Different Lengths Available
•  Different Molding/Strain Relief
   We also can design it according to our customer's specific demand!
