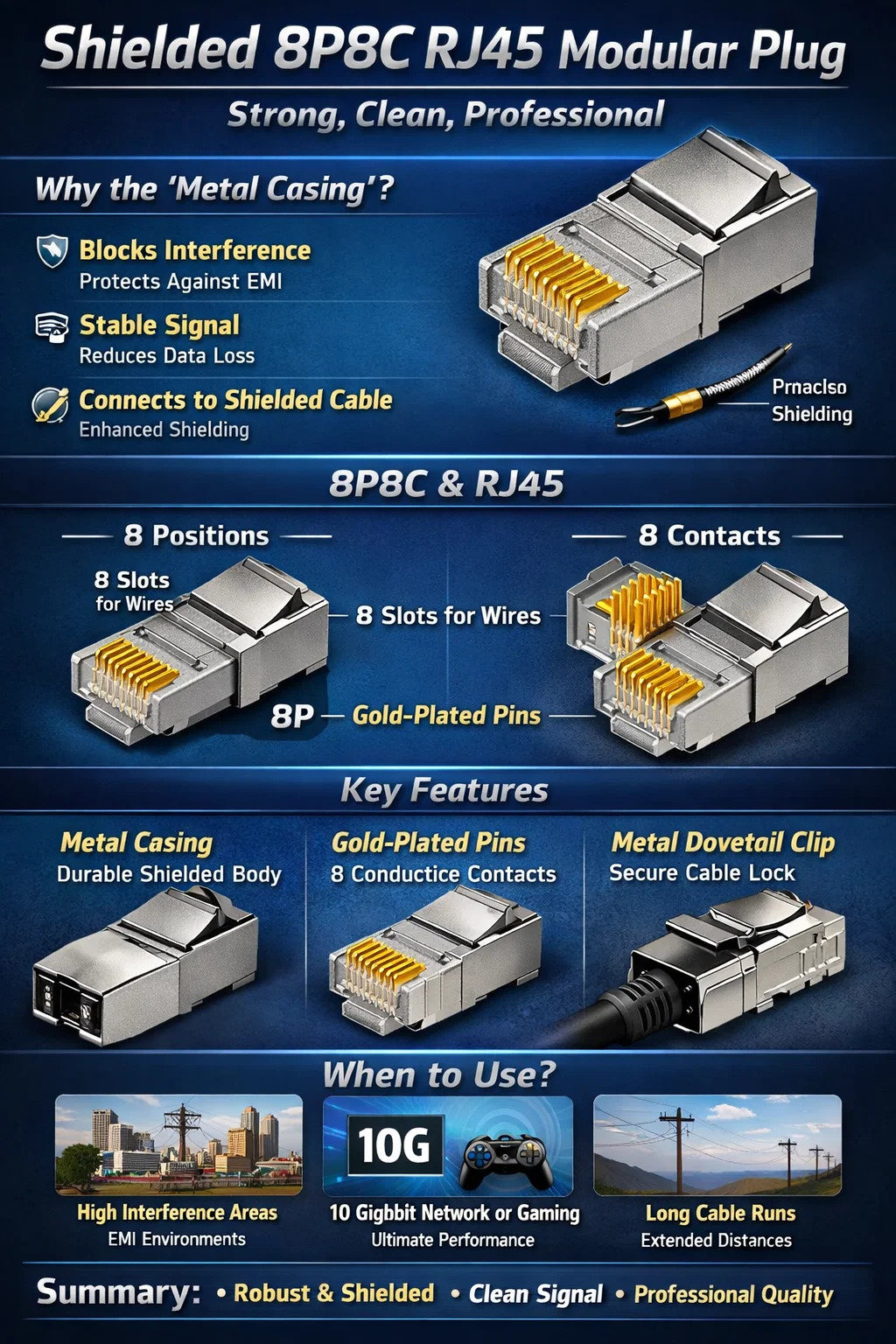

What is a shielded 8P8C RJ45 modular plug?

This shielded 8P8C RJ45 modular plug is commonly referred to as a "shielded crystal head" or "metal-cased network cable connector." Compared to the ordinary transparent type, its biggest difference is the shiny "metal casing" surrounding it.

1. Why the "metal casing"? (Shielding function)

Blocking interference: The "Shielded" in the name means shielding. This metal casing acts like a bulletproof vest for the network cable connector, specifically designed to block external electromagnetic interference (such as stray signals from nearby wires or noise from large motors).
Protecting the signal: With this casing, the data transmitted through the network cable is less susceptible to interference, resulting in a more stable network speed and fewer packet losses or disconnections.
Used with shielded cables: It is usually used with shielded network cables that have a foil layer. The shielding layer in the network cable is connected to this metal casing, which conducts away the stray electricity caused by interference.

2. What do "8P8C" and "RJ45" mean? (Specifications and style)

Standard shape: RJ45 refers to its rectangular connector shape; almost all network ports in the world are made in this shape.
Eight positions, eight contacts: 8P8C is more intuitive – this connector has 8 slots for wires (8P), and each of these 8 slots contains a conductive metal contact (8C). It's a standard 8-pin connector, specifically designed for the 8-core network cables used for computer networking.

3. What does it look like? (Structural details)

Metal casing: The most noticeable feature is the silver metal casing surrounding it. This casing not only shields the signal but also makes the entire connector more robust and less likely to be damaged or broken.
Gold-plated pins: At the front of the connector, there are 8 bright yellow metal contacts. These are usually plated with real gold to prevent rust and ensure good contact even after many years of use.
The tail: This shielded 8P8C RJ45 modular plug usually has a metal dovetail clip at the back, which securely holds the shielding layer and outer sheath of the network cable, providing both grounding and reinforcement.

4. When is it absolutely necessary to use it? (Use Cases)

In areas with strong electromagnetic interference: For example, when network cables and power cables are routed together in the same conduit, or in places with many electrical devices such as factories or server rooms.
For ultimate stability: If you have a 10 Gigabit network at home, or if you are a hardcore gamer who wants absolutely no network speed fluctuations, using this shielded connector will provide greater peace of mind.
For long-distance cabling: The longer the cable, the more susceptible it is to interference, and that's where this shielded connector comes in handy.

5. Summary of its characteristics

This shielded 8p8c RJ45 modular plug gives the impression of being:
More robust: Metal casing, solid feel, and wear-resistant.
Cleaner: Blocks out unwanted signals, allowing the network signal to run "cleanly."
More professional: Although installation is slightly more complicated than with ordinary transparent connectors (requires handling the shielding layer), the results are indeed more professional.
