Why Does a 15 m Cat6A Patch Cord Show 266 ft on a Fluke Report?

A customer orders a 15 m Cat6A patch cord, but the Fluke test report shows a length of 266 ft—approximately 81.1 m.

Does this mean the cable length is incorrect?

No. In this case, the patch cord was tested as part of a complete channel. The length shown in the report therefore represents the entire test channel, not the individual 15 m patch cord.

Start by Checking the Test Limit

When reading a Fluke report, do not look at the measured length alone. First, check the test limit shown on the report.

In this example, the selected limit was:

TIA Cat 6A Channel

The word Channel is important.

A channel test evaluates the complete connection between the main and remote test units. The setup may include the cable under evaluation, reference links, patch cords and multiple connection points.

The Fluke tester measures the combined electrical length of everything connected between the two test units.

A Real Cat6A Test Example

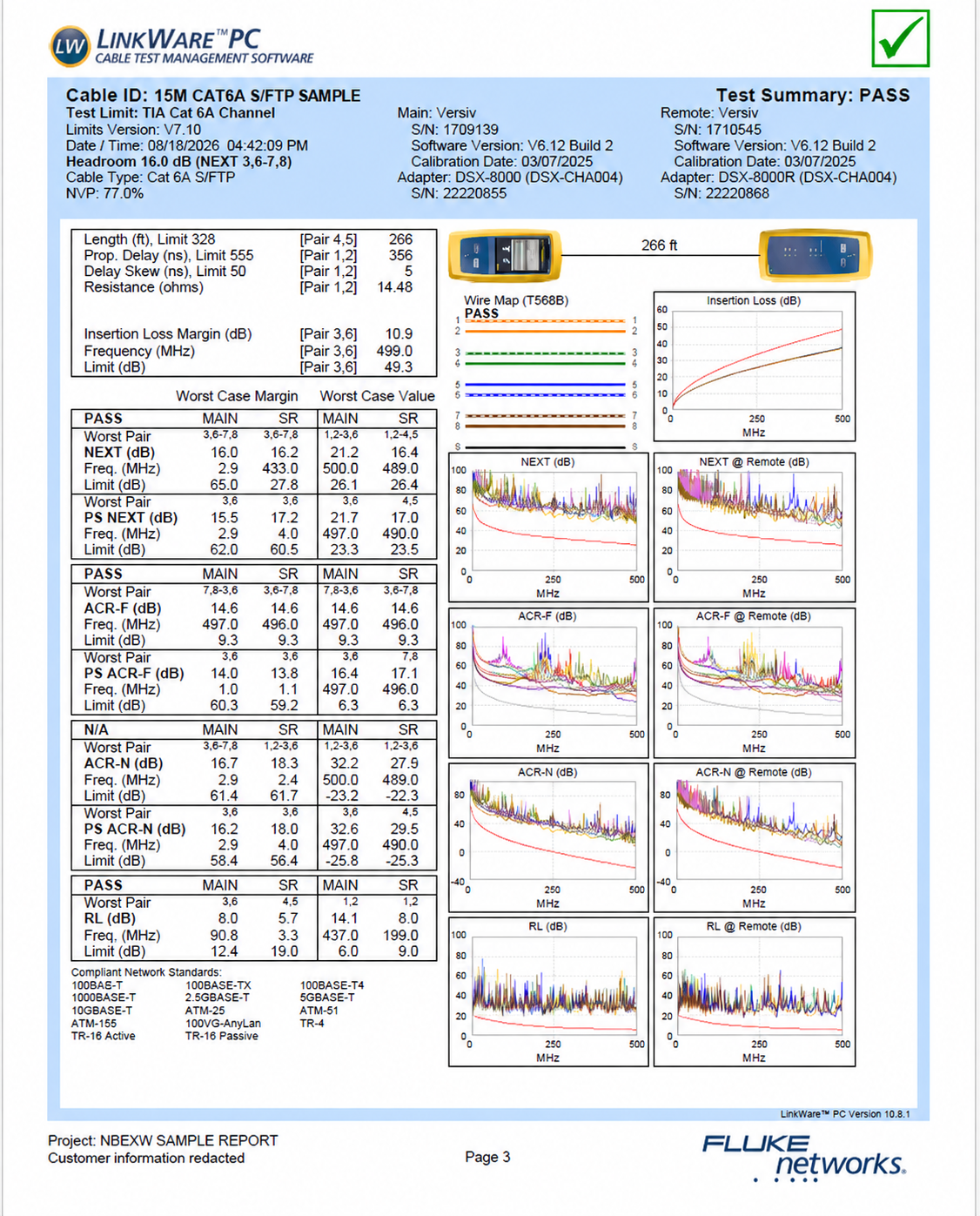

The cable ID in this report referred to a 15 m Cat6A S/FTP patch cord. The report contained the following information:

The reported length was much longer than 15 m because the patch cord was connected inside a complete channel test setup.

In simple terms:

15 m = the length of the individual patch cord
266 ft / 81.1 m = the measured length of the complete channel

The two numbers describe different things, so they do not conflict.

Why Use a Complete Channel for Testing?

A patch cord does not normally operate alone. In an installed network, it becomes part of a larger cabling system that may contain:

• Patch panels



• Horizontal cabling



• Outlets or connecting hardware



• Equipment cords



• Intermediate connection points



Channel testing helps evaluate whether the complete connection meets the selected Cat6A channel requirements.

It can also show how the patch cord performs when combined with other cabling components instead of being tested only as an individual assembly.

Does PASS Mean the Individual Patch Cord Passed a Component Test?

Not necessarily.

A Channel PASS means that the complete connected channel met the selected channel limit.

It should not automatically be described as a patch cord component test because the two test configurations evaluate different things.

• Channel test: evaluates the complete end-to-end cabling connection.



• Patch cord or component test: evaluates the individual factory-terminated cable assembly according to the selected product-level requirement.



When reviewing a report, buyers should confirm which test method was requested and which test limit was selected.

What Is the 16.0 dB Margin?

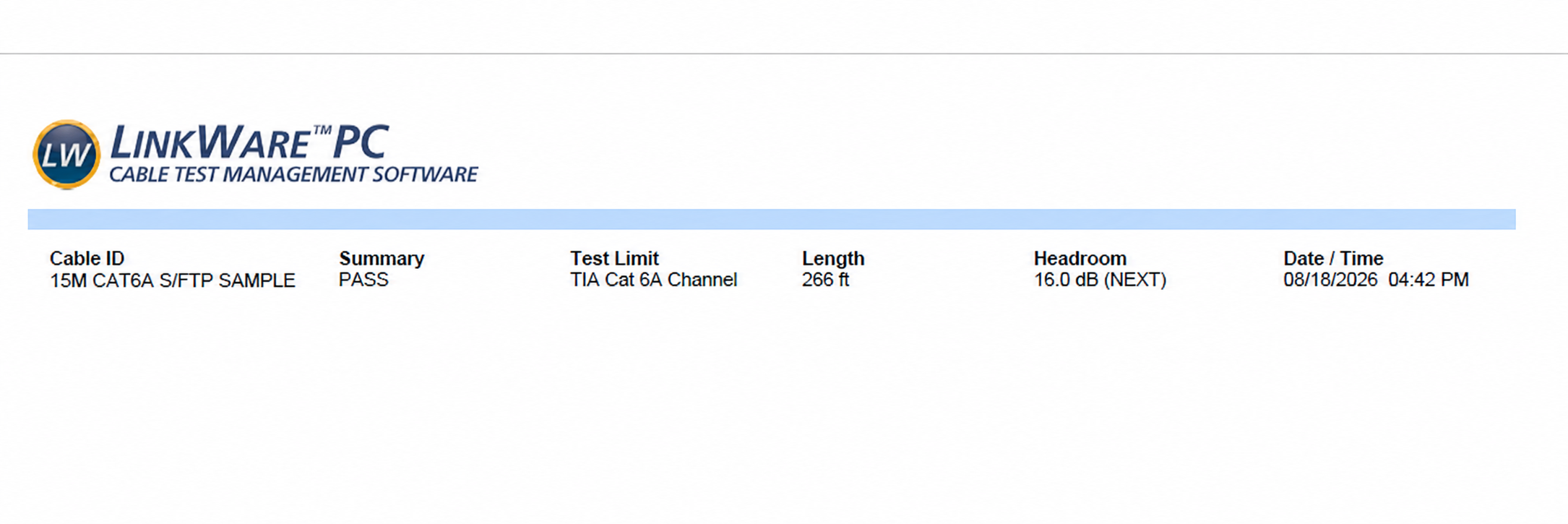

The report showed a worst margin of:

16.0 dB (NEXT)

NEXT means near-end crosstalk. It measures unwanted signal coupling between wire pairs.

The margin shows the difference between the measured result and the limit required by the selected test standard at the worst-performing point.

A positive margin indicates that the result remained within the selected requirement. In this example, the complete Cat6A channel received a PASS result.

However, margin should always be reviewed together with the test limit. A margin number alone does not explain whether the report is for a Channel, Permanent Link, Patch Cord or Component test.

What Should Buyers Check on a Fluke Report?

Before accepting a report, check the following information:

1. Cable ID



   Confirm that it matches the product, length or order reference.



2. Cable type



   Check the category and shielding construction, such as Cat6A S/FTP.



3. Test limit



   Look for Channel, Permanent Link, Patch Cord or Component.



4. Test adapter



   Confirm that the adapter matches the selected test configuration.



5. Measured length



   Determine whether it represents an individual cable or the complete channel.



6. Overall result



   Check whether the report shows PASS or FAIL.



7. Worst margin



   Review which parameter produced the lowest margin.



A report becomes much easier to understand once these fields are read together.

Why Test Requirements Should Be Confirmed Before Production

“Fluke tested” can mean different things to different customers.

One buyer may require a standard Channel test, while another may request an individual Component test or a specific minimum margin.

These requirements can affect:

• Test fixtures and adapters



• Production control



• Testing time



• Rework rates



• Report format



• Product pricing



For example, a customer-specified margin requirement may be more difficult to achieve than a standard PASS result. It should therefore be confirmed before quotation and production.

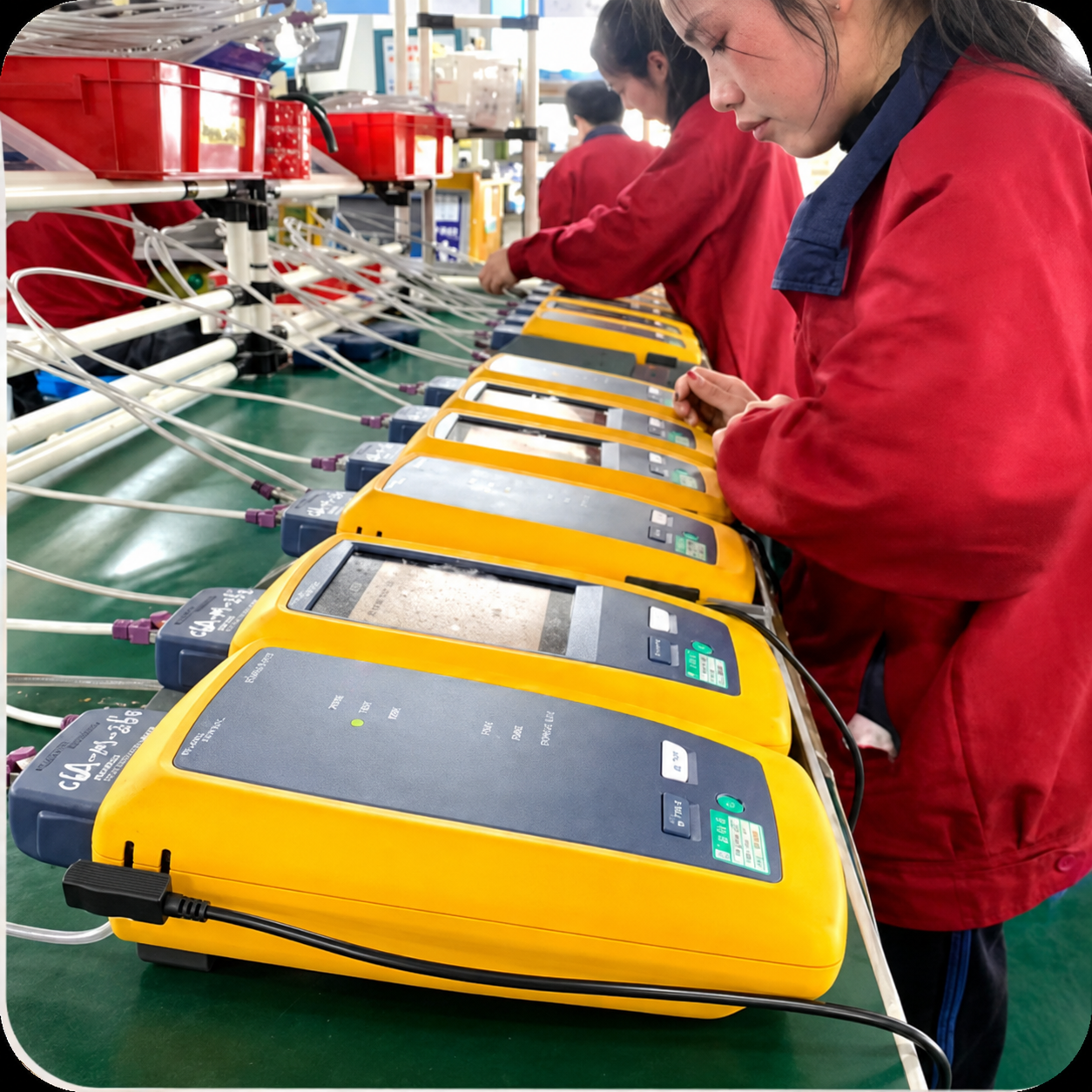

Cat6A Testing at Ningbo EXW

Ningbo EXW manufactures customized Cat6A patch cords in multiple shielding constructions, conductor sizes, colors and lengths.

Depending on the customer’s specification, testing options can include:

• Fluke DSX-8000 testing



• Channel testing



• Customer-specified component testing



• Customized cable IDs



• Individual test reports



• Customer-specified margin requirements



When sending an inquiry, please tell us which test method and report format you require. This helps ensure that the quotation, production process and final report match your project requirements.

Conclusion

A 15 m Cat6A patch cord can correctly appear in a Fluke report with a measured length of 266 ft.

The reason is simple: the patch cord was tested inside a complete channel, and the tester displayed the total electrical length between the main and remote units.

Therefore, always check the Test Limit before interpreting the reported length.

If the report says TIA Cat 6A Channel, the displayed length normally refers to the complete channel—not only the individual patch cord.
