1 pair 110 Connector

EXW has high quality 110 4 pairs & 110 2 pairs & 110 1 pair connector.

We have complete production lines with flexible lead-time.

● Meet the Date & Fax & Voice Application

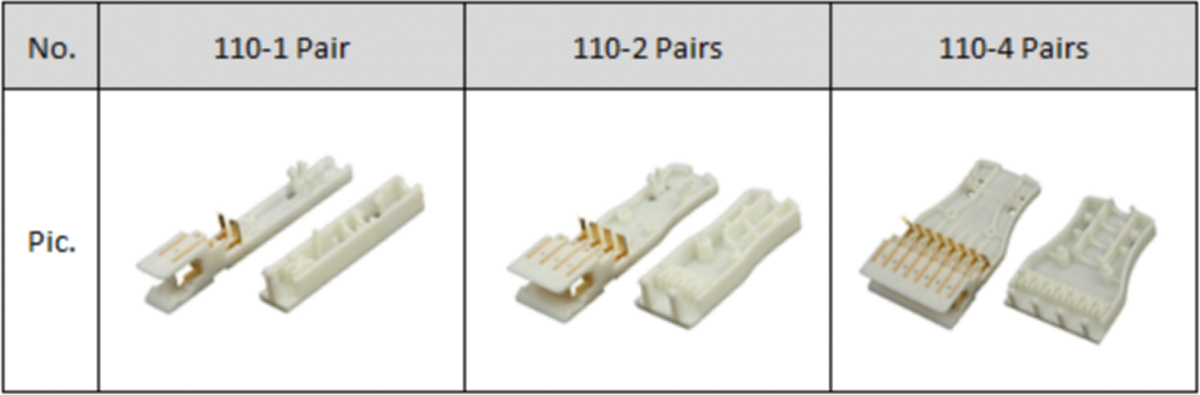

● 110 4Paris / 2 Pairs / 1 Pair Available

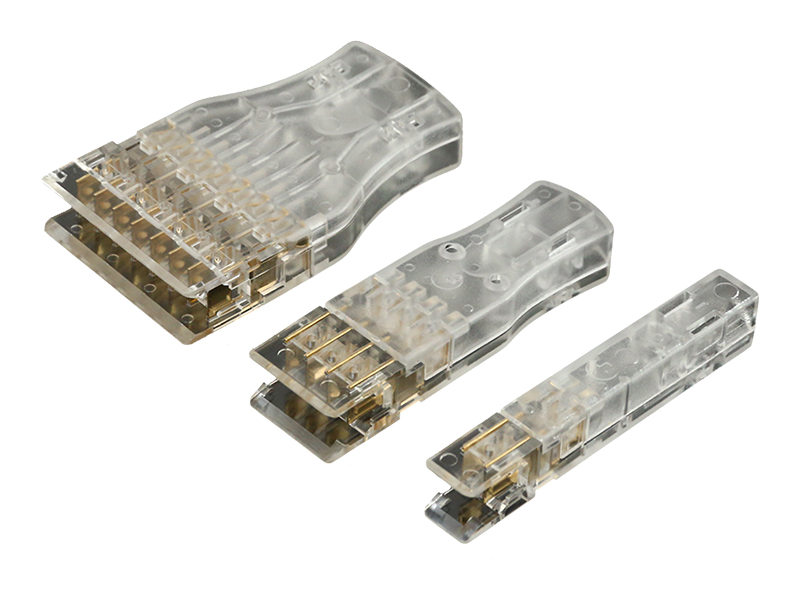

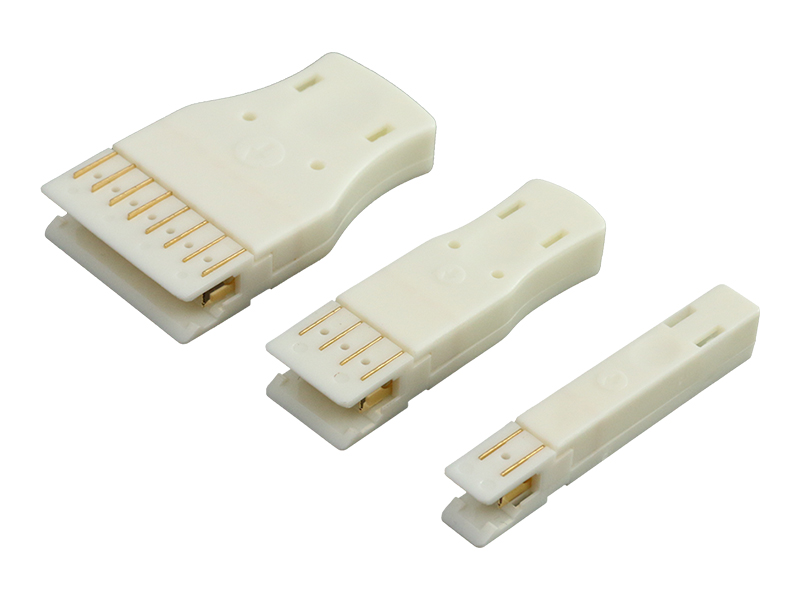

● Connector Color: Transparent / Ivory Color for Option

● Certified by CE

● Comply with RoHS & REACH

● Operation Temperature Range:-10~60 ℃.

Welcome OEM/ODM. EXW is Your Best Choice!

Features:

● Comply with RoHS & REACH

● 110 4Pairs,2Pairs,1Pairs are all available.

• Part No. & Description

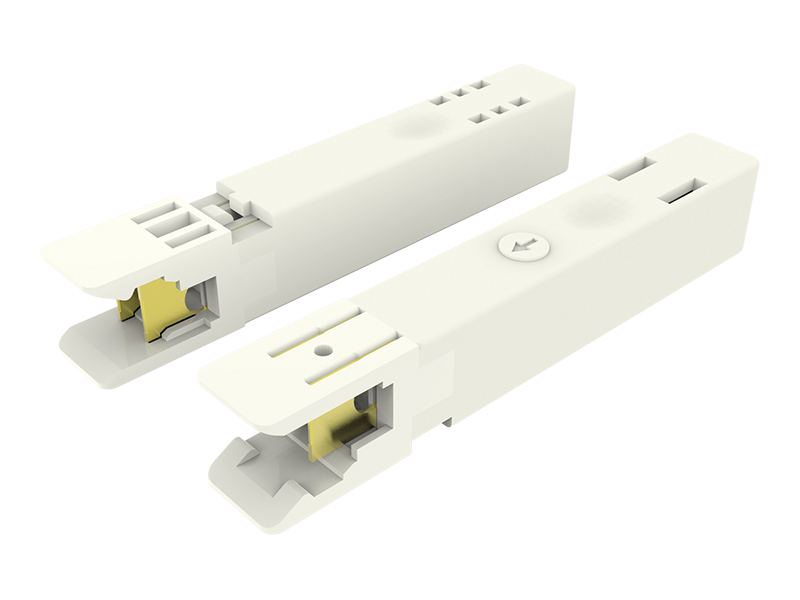

110 1Pair : 110 1 pair connector.

• Quality Assurance

100% inspection before shipment.

• Certificate

Comply with RoHS & REACH

• Application

Meet the stringent requirement of LAN and sustain a consistent impedance at high frequencies up to 100MHz.

• Different Color Available

• Standard Package Rate

Spec.	Packing Rate(pcs)	N.W(KG)	G.W(KG)	Packing Method	Carton Size
110 1PR Plug	3,000	7.75	8.75	1,000pcs/blank bag 2 inner boxes/Carton	496362265MM(0.05CBM)

•Electrical Characteristics

UL Application:	250 Valts AC max, AT AMP
Dielectric Withstanding Voltage:	500 Volts AC
Insulation Resistance:	100MΩ
Termination:	Resistance 20MΩ max after environmental testing

•Mechanical characteristics

Insertion Life:	750 mating cycles
Installation Temperature :	0/50℃
Operation & Storage Temperature :	-20/60℃
Cable to Plug Tensile Strength:	20pound(min)
Pulling Force:	10N(max)

•Component

Housing:	Polycarbonate, UL94V-2 or UL94V-0
Gold Plating:	3U / 0FU"
Contact Blade:	Copper Alloy
Contact:	Stradded or Solid Wire, from 24 AWG to 26AWG
Color:	Transparent or other color
