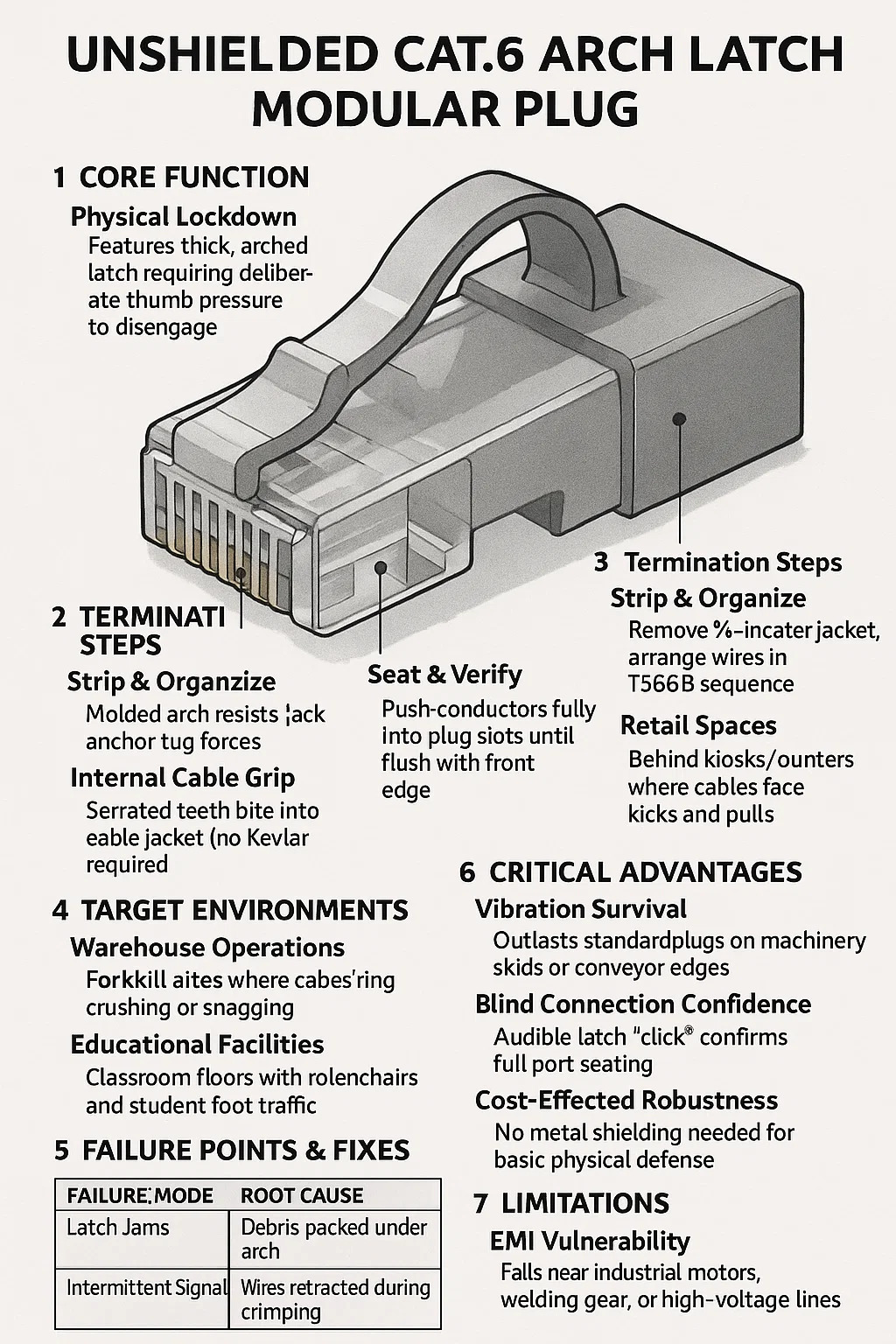

Unshielded Cat.6 Arch Latch Modular Plug

1. Core Function

Physical Lockdown: Features a thick, arched latch (ribbed or notched) requiring deliberate thumb pressure to disengage, preventing accidental unplugging in high-traffic zones.
Performance Handling: Supports 10Gbps Ethernet up to 55 meters, targeting environments where EMI is negligible but cables face physical abuse.

2. Structural Build

Reinforced Latch Design:
Molded arch resists snapping when kicked or snagged; withstands repeated impacts from carts/foot traffic.
Internal Cable Grip:
Serrated teeth bite into cable jacket (no Kevlar required), anchoring against tug forces up to 50 lbs.
Contact Integrity:
Gold-plated pins maintain oxidation-resistant connection despite dust/dirt buildup.

3. Termination Steps

Strip & Organize:
Remove ¾-inch outer jacket; arrange wires in T568B sequence with <13mm untwist.
Seat & Verify:
Push conductors fully into plug slots until flush with front edge.
Crimp Deployment:
Single crimp action locks wires, grips jacket, and snaps latch into armed position.

4. Target Environments

Warehouse Operations:
Forklift aisles where cables risk crushing or snagging.
Educational Facilities:
Classroom floors with rolling chairs and student foot traffic.
Retail Spaces:
Behind kiosks/counters where cables face kicks and pulls.

5. Failure Points & Fixes

Failure Mode Root Cause On-Site Mitigation
Latch Jams Debris packed under arch Blast compressed air under latch
Intermittent Signal Wires retracted during crimping Slice plug; re-terminate
Latch Wear Vertical disengagement attempts Replace plug after 5+ rough removals

6. Critical Advantages

Vibration Survival: Outlasts standard plugs on machinery skids or conveyor edges.
Blind Connection Confidence: Audible latch "click" confirms full port seating.
Cost-Effected Robustness: No metal shielding needed for basic physical defense.

7. Limitations

EMI Vulnerability: Fails near industrial motors, welding gear, or high-voltage lines.
Cat.6 Distance Cap: Not for 10Gbps runs beyond 55 meters.
No Shielding Path: Cannot retrofit shielded cables without breaking performance.
