Cat.6A Unbreakable U/UTP Patch Cord | Durable RJ45 Ethernet Cable for High-Flex Networks

EXW Cat.6A Unbreakable U/UTP Patch Cord is a durable Ethernet cable designed for hospitals, hotels, enterprise networks, and high-traffic network environments.

Featuring a reinforced plug latch design, this unbreakable patch cord supports over 80,000 times 180-degree bending tests for enhanced durability and long-term reliability.

Made with bare copper conductors and 50U" gold-plated RJ45 plugs, it delivers stable transmission and reliable network connectivity for daily network applications.

EXW provides OEM and ODM unbreakable patch cord solutions for global network brands.

Standards & Features

Key Features
● Unbreakable Cat.6A U/UTP Patch Cord
● Supports 10G Ethernet & 4PPoE Applications
● Over 80,000 Times 180° Bending Test
● Reinforced Plug Latch Design
● 50U" Gold-Plated RJ45 Connectors
● Bare Copper Conductors
● Stable Transmission Performance
● Up to 1200 Mating Cycles
● Operating Temperature: -10°C to 60°C
● Compliant with ISO/IEC 11801 & ANSI/TIA-568.2-E
● UL, ETL, DELTA, CE Certified; RoHS & REACH Compliant
● Cat.6A / Cat.6 / Cat.5E Versions Available
● OEM / ODM Customization Available

Product Description

• EXW Part No. & Description
6AUTXXUnbreakable : Cat.6A U/UTP Stranded Round Unbreakable Patch Cord, Molded, PVC/LSOH/TPE/PUR
Quality Assurance
100% Cat.6A Component Test (provide original test data to our customer)
Made by Cat.6A S/FTP Cable + Cat.6A UTP Plug , with better performance.
Certificate
UL/ETL/DELTA/4PPoE/CE Certified & Comply with RoHS & REACH
Application
* Ethernet Networking
* Computer Networking Project
* Audio & Data Transmission
* Digital Networking
* Broadband Networking Communication
 EXW Standard Color Code
 Standard Package Rate

Length(M)

Cat.6 S/FTP (pcs)

N.W(KG)

G.W(KG)

Packing Method

Carton Size

0.5

200

6.67

7.67

1pc/blank bag with label

400*375*290MM(0.0435CBM)

1

120

6.59

7.59

2

100

9.34

10.34

3

80

10.20

11.20

5

50

10.06

11.06

10

25

10.04

11.04

15

25

14.46

15.46

20

18

13.62

14.62

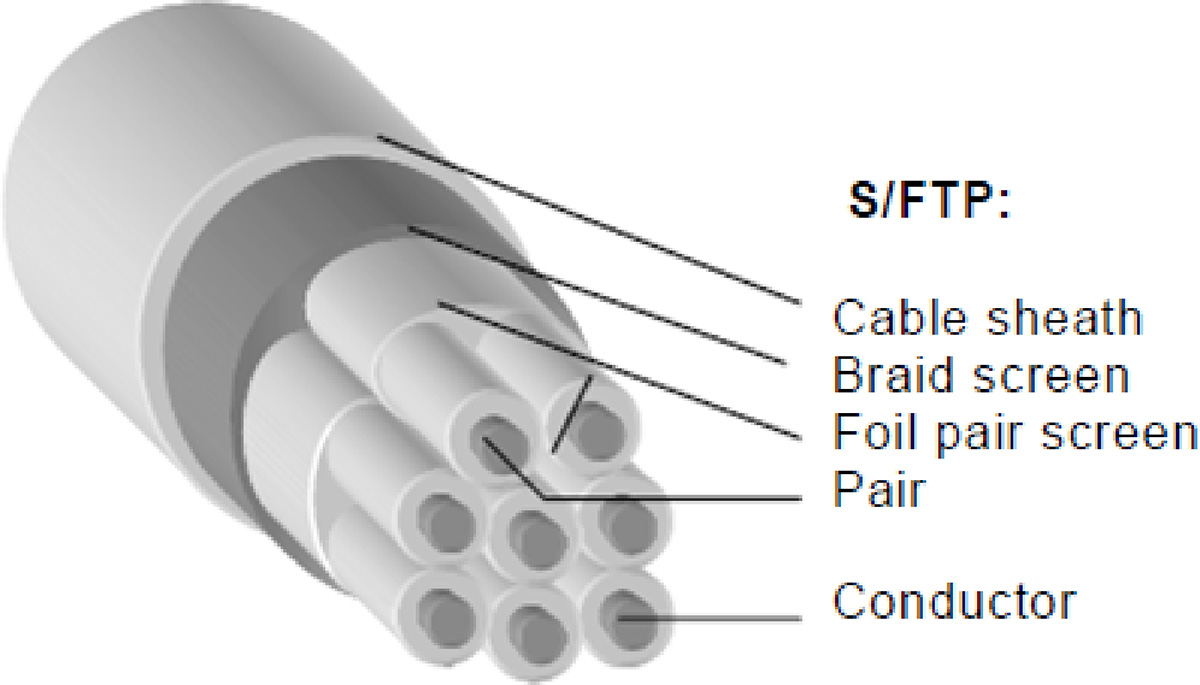

Product Constructure

Wire Colour Code
white - blue/blue
white - orange/orange
white - green/green
white - brown/brown

• Component



Conductor:

AWG 26 (Stranded Copper 7x 0.16mm),4-Pair,8C

Insulators:

PE

Insulators Diameter:

1.02 ± 0.01mm

Braid Shield (Tinned Copper):

16/5/0.10T

Coverage:

≥40

Jacket:

PVC/LSOH/TPE/PUR

Jacket Diameter:

6.2 ± 0.2mm



• Electrical Characteristics



NEXT Requirement:

1dB margin compared to ANSI/TIA-568.2-D

Return loss Requirement:

1dB margin compared to ANSI/TIA-568.2-D

Current Rating:

1.5 A

Insulation Resistance:

100 MΩ min

Contact Resistance:

20 mΩ max

Dielectric Strength:

500 VAC (rms)

Voltage:

72 VDC max



• Mechanical characteristics



Insertion Life:

750 mating cycles

Installation Temperature:

0/50℃

Operation & Storage Temperature:

-20/60℃

Cable to Plug Tensile Strength:

20pound(min)

Pulling Force:

10N(max)

OEM/ODM Case

With more than 40 years history and profession R & D team
EXW has rich experiences in producing OEM/ODM cases.
•  Customized Logo on Plug & Boot
•  Special Printing on Cable
•  Special Design on Package & Label
•  Independent Package
•  Different Color & Different Lengths Available
•  Different Molding/Strain Relief
   We also can design it according to our customer's specific demand!
