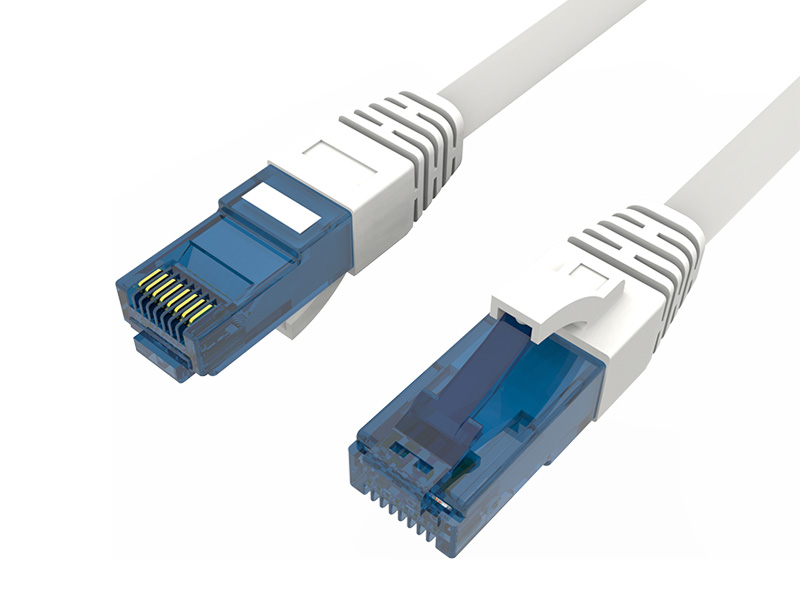

Cat.6 Unbreakable U/UTP Patch Cord | Durable RJ45 Ethernet Cable for High-Flex Networks

EXW Cat.6 Unbreakable U/UTP Patch Cord is a durable Ethernet cable designed for hospitals, hotels, enterprise networks, and high-traffic network environments.

Featuring a reinforced plug latch design, this unbreakable patch cord supports over 80,000 times 180-degree bending tests for enhanced durability and long-term reliability.

Made with bare copper conductors and 50U" gold-plated RJ45 plugs, it delivers stable transmission and reliable network connectivity for daily network applications.

EXW provides OEM and ODM unbreakable patch cord solutions for global network brands.

Key Features

● Unbreakable Cat.6 U/UTP Patch Cord
● Supports Gigabit Ethernet & 4PPoE Applications
● Over 80,000 Times 180° Bending Test
● Reinforced Plug Latch Design
● 50U" Gold-Plated RJ45 Connectors
● Bare Copper Conductors
● Stable Transmission Performance
● Up to 1200 Mating Cycles
● Operating Temperature: -10°C to 60°C
● Compliant with ISO/IEC 11801 & ANSI/TIA-568.2-E
● UL, ETL, DELTA, CE Certified; RoHS & REACH Compliant
● Cat.6A / Cat.6 / Cat.5E Versions Available
● OEM / ODM Customization Available

• EXW Part No. & Description

6UTXXUnbreakable : Cat.6 U/UTP Stranded Round Unbreakable Patch Cord, Molded, PVC/LSOH/TPE/PUR

• Quality Assurance

100% Cat.6 Component Test (provide original test data to our customer)

• Certificate

UL/ETL/DELTA/4PPoE/CE Certified & Comply with RoHS & REACH

• Application

* Ethernet Networking

* Computer Networking Project

* Audio & Data Transmission

* Digital Networking

* Broadband Networking Communication

• EXW Standard Color Code

• Standard Package Rate

Length(M)	Cat.6 U/UTP (pcs)	N.W(KG)	G.W(KG)	Packing Method	Carton Size
0.5	250	7.28	8.28	1pc/blank bag with label	400375290MM(0.0435CBM)
1	150	7.75	8.75
2	100	8.91	9.91
3	80	9.86	10.86
5	50	10.28	11.28
10	35	13.94	14.94
15	25	14.65	15.65
20	20	15.67	16.67

Wire Colour Code

white - blue/blue

white - orange/orange

white - green/green

white - brown/brown

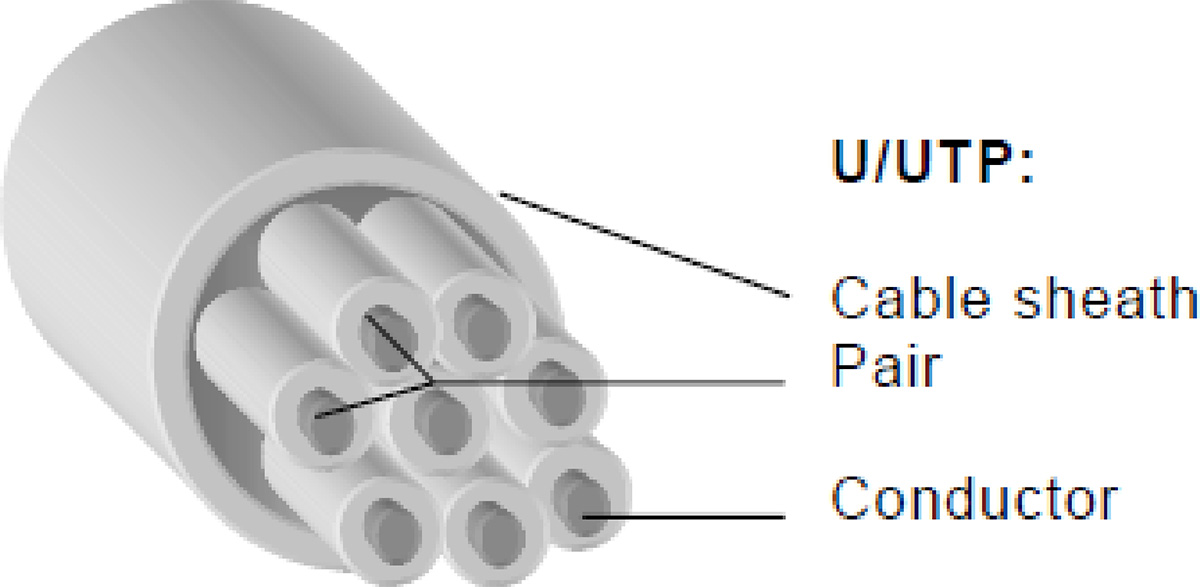

• Component

Conductor:	AWG 24 (Stranded Copper 7x 0.2mm),4-Pair ,8C
Insulators:	PE
Insulators Diameter:	0.97 ± 0.05mm
Nom. Thickness:	0.18mm
Separator:	PE Cross
Jacket:	PVC/LSOH/TPE/PUR
Jacket Diameter:	6.0 ± 0.2mm

• Electrical Characteristics

NEXT Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Return loss Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Current Rating:	1.5 A
Insulation Resistance:	100 MΩ min
Contact Resistance:	20 mΩ max
Dielectric Strength:	500 VAC (rms)
Voltage:	72 VDC max

• Mechanical characteristics

Insertion Life:	750 mating cycles
Installation Temperature:	0/50℃
Operation & Storage Temperature:	-20/60℃
Cable to Plug Tensile Strength:	20pound(min)
Pulling Force:	10N(max)
