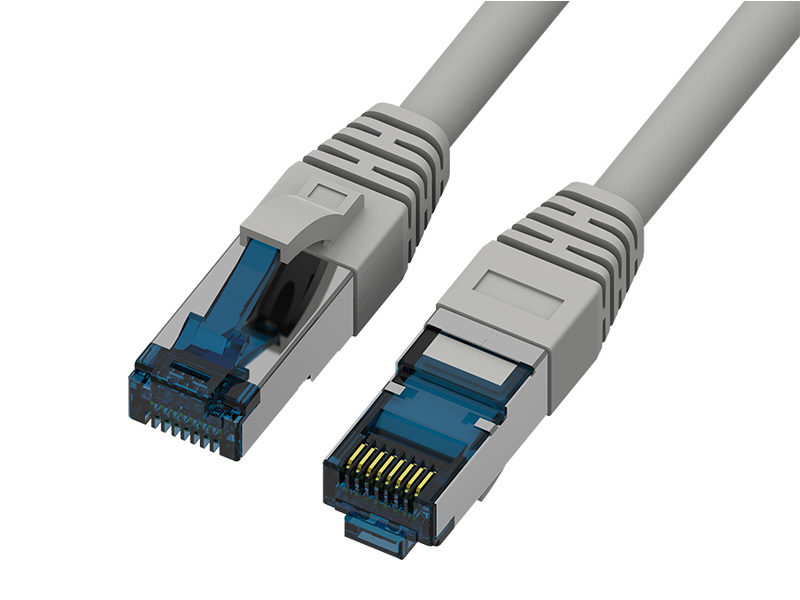

Shielded S/FTP CAT.6 Unbreakable Patch Cord

The plug is made by the special material and the bending test can up to 80,000 times. Especially this unbreakable patch cord is suitable for hospital & hotel & etc.

● Follow ANSI/TIA-568.2-D & ISO/IEC 11801

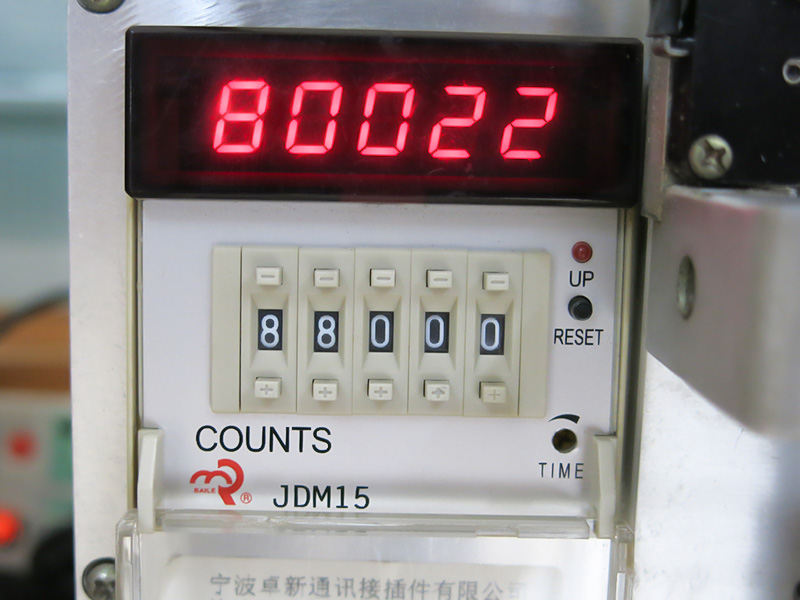

● The Latch of the Plug with More Than 80,000 Times 180 Degree Bending

● Cat.6A / Cat.6 / Cat.5E Available

● Bare Copper with More Stable Performance

● 50U" Gold Plating RJ45 Plugs with Patented Design

● Various Colors & Molding Available

● Mating Cycles: Up to 1200 Times

● Suitable 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

● Operation Temperature Range:-10~60 ℃

● UL / ETL / DELTA / 4PPoE / CE Certified & Comply with RoHS & REACH

The Most Durable Patch Cord in the Market!

Standards & Features

EXW Patch Cords Meet the Following Standards:

● ISO/IEC 11801:2011
● ANSI/TIA-568.2-D
● ANSI/TIA-1096-A (FCC Part 68)
● EN50173-1:2011
● UL 444
● 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

Product Description

• EXW Part No. & Description
6SSXXUnbreakable : Cat.6 S/FTP Stranded Round Unbreakable Patch Cord, Molded, PVC/LSOH/TPE/PUR
Quality Assurance
100% Cat.6 Component Test (provide original test data to our customer)
Certificate
UL/ETL/DELTA/4PPoE/CE Certified & Comply with RoHS & REACH
Application
* Ethernet Networking
* Computer Networking Project
* Audio & Data Transmission
* Digital Networking
* Broadband Networking Communication

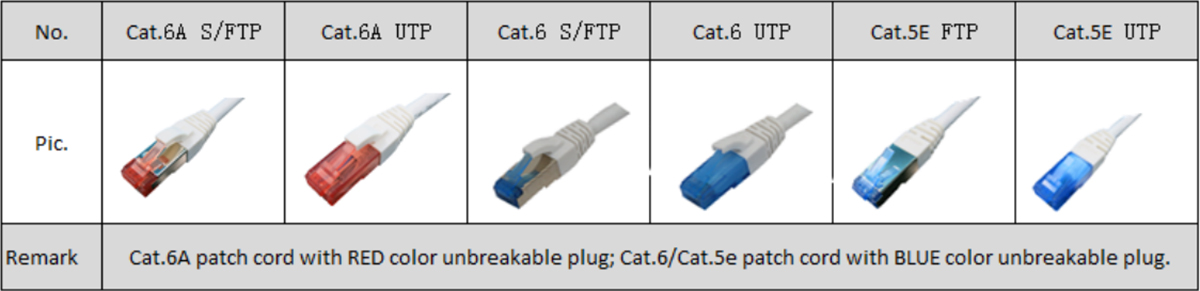

 EXW Standard Color Code
 Standard Package Rate

Length(M)

Cat.6 S/FTP (pcs)

N.W(KG)

G.W(KG)

Packing Method

Carton Size

0.5

200

6.67

7.67

1pc/blank bag with label

400*375*290MM(0.0435CBM)

1

120

6.59

7.59

2

100

9.34

10.34

3

80

10.20

11.20

5

50

10.06

11.06

10

25

10.04

11.04

15

25

14.46

15.46

20

18

13.62

14.62

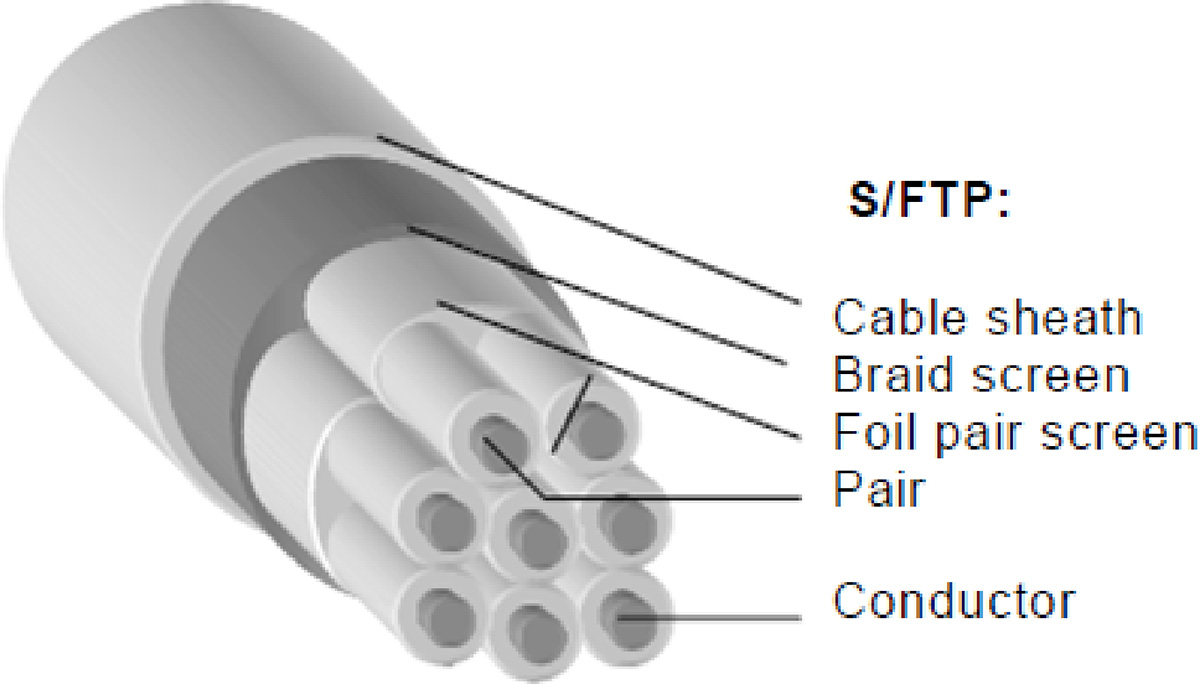

Product Constructure

Wire Colour Code
white - blue/blue
white - orange/orange
white - green/green
white - brown/brown

• Component



Conductor:

AWG 26 (Stranded Copper 7x 0.16mm),4-Pair ,8C

Insulators:

PE

Insulation Diameter:

1.02 ± 0.05mm

Braid Shield (Tinned Copper):

16/5/0.10T

Coverage:

≥40%

Jacket:

PVC/LSOH/TPE/PUR

Jacket Diameter:

6.2 ± 0.2mm



• Electrical Characteristics



NEXT Requirement:

1dB margin compared to ANSI/TIA-568.2-D

Return loss Requirement:

1dB margin compared to ANSI/TIA-568.2-D

Current Rating:

1.5 A

Insulation Resistance:

100 MΩ min

Contact Resistance:

20 mΩ max

Dielectric Strength:

500 VAC (rms)

Voltage:

72 VDC max



• Mechanical characteristics



Insertion Life:

750 mating cycles

Installation Temperature:

0/50℃

Operation & Storage Temperature:

-20/60℃

Cable to Plug Tensile Strength:

20pound(min)

Pulling Force:

10N(max)

OEM/ODM Case

With more than 35 years history and profession R & D team
EXW has rich experiences in producing OEM/ODM cases.
•  Customized Logo on Plug & Boot
•  Special Printing on Cable
•  Special Design on Package & Label
•  Independent Package
•  Different Color & Different Lengths Available
•  Different Molding/Strain Relief
   We also can design it according to our customer's specific demand!
