6P6C Telephone Plug

EXW high quality RJ11 6P6C telephone plugs are made by imported raw materials.

● Meet FCC Standard

● Different Gold Thickness Available (50u",30u",15u",6u",3u" , flash)

● Mating Cycles: Up to 1200 Times

● Suitable for 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

● Cable Wire Gauge : 24AWG to 26AWG

● UL / POE+ / CE Certified & Comply with RoHS & REACH

● With Special Designed Boot

Each modular plug is inspected by AOI machine (Automatic Optic Inspection) to guarantee the quality. We have complete production lines with flexible lead-time.

Welcome OEM/ODM. EXW is Your Best Choice!

Standards & Features

Features:

● Suitable for 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications
● Comply with RoHS & REACH

Product Description

Part No. & Description
P66FE50V2 : RJ11 6P6C UTP telephone plug designed for  flat telephone cable.
P66RE50V2 : RJ11 6P6C UTP telephone plug designed for round telephone cable.
Quality Assurance
Each modular plug is inspected by AOI machine (Automatic Optic Inspection) to guarantee the quality.
Certificate
UL/4PPoE Certified & Comply with RoHS & REACH
Application
Meet the stringent requirement of LAN and sustain a consistent impedance at high frequencies up to 100MHz.
Different Color Available
Standard Package Rate

Spec.

Packing Rate (pcs)

N.W(KG)

G.W(KG)

Packing Method

Carton Size

6P6C plug UTP

20,000

17.24

18.38

1,000pcs/blank bag 2 inner boxes/Carton

496*362*265MM(0.05CBM)

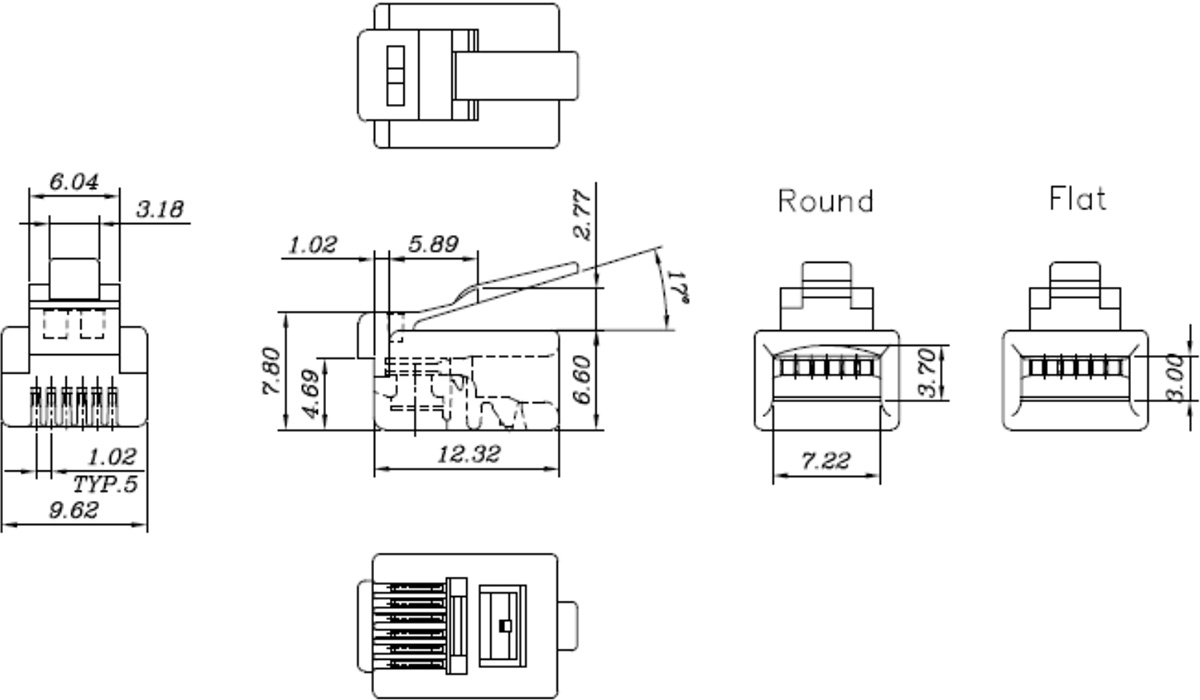

Product Constructure



 •Electrical Characteristics



UL Application:  250 Valts AC max, AT AMP
Dielectric Withstanding Voltage:   500 Volts AC
Insulation Resistance: 100MΩ
Termination: Resistance 20MΩ max after environmental testing



 •Mechanical characteristics



Insertion Life:  750 mating cycles
Installation Temperature : 0/50℃
Operation & Storage Temperature : -20/60℃
Cable to Plug Tensile Strength: 20pound(min)
Pulling Force:    10N(max)



 •Component



Housing: Polycarbonate, UL94V-2 or UL94V-0
Gold Plating: 50u", 30u", 15u", 6u", 3u" or flash
Contact Blade: Copper Alloy
Contact: Stradded or Solid Wire, from 24 AWG to 26AWG
Color:  Transparent or other color

OEM/ODM Case

With more than 35 years history and profession R & D team,
EXW has rich experiences in producing OEM/ODM cases.
•  Customized Logo on  the Latch of Plug
•  Special Design on Package & Label
•  Different Package Rate Available
•  Different Color Available

Different Telephone Plugs are available.
