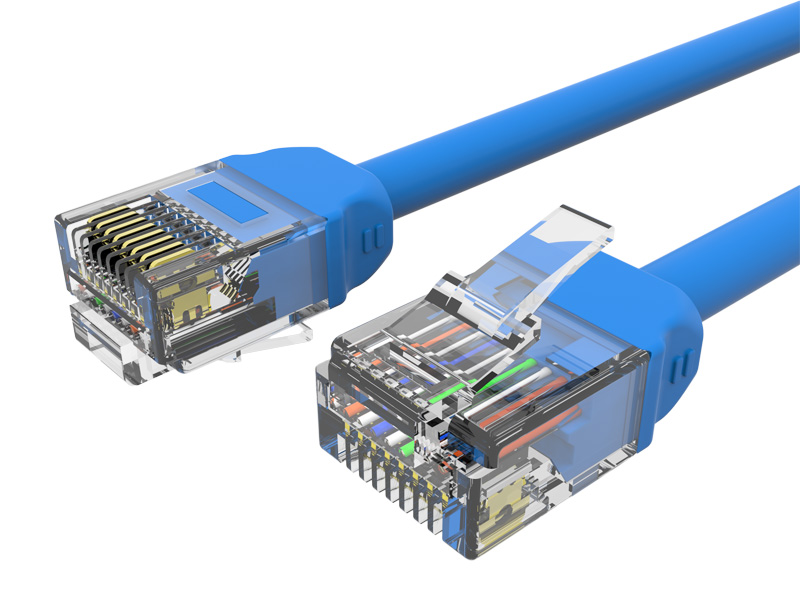

Cat.6 ESG U/UTP Patch Cord 32AWG | Ultra Slim Low-Carbon Ethernet Cable for High-Density Cabling

EXW Cat.6 ESG U/UTP Patch Cord is an ultra slim 32AWG Ethernet cable designed for high-density cabling, enterprise networks, and sustainable network infrastructure.

With a smaller cable diameter and lightweight design, this ESG patch cord helps save installation space, improve cable management, and reduce material usage and carbon footprint.

It delivers stable network transmission and flexible installation performance for modern network environments and compact cabling applications.

EXW is committed to sustainable manufacturing and ESG development, providing OEM and ODM ESG patch cord solutions for global network brands.

Key Features

● ESG Cat.6 U/UTP Ultra Slim Patch Cord
● Ultra Slim 32AWG Design for High-Density Cabling
● Supports Gigabit Ethernet & 4PPoE Applications
● Reduced Carbon Footprint Design
● Space-Saving & Lightweight Cable Structure
● 32AWG / 30AWG / 28AWG Available
● 50U" Gold-Plated RJ45 Connectors
● Bare Copper Conductors
● Stable Transmission Performance
● Up to 1200 Mating Cycles
● Operating Temperature: -10°C to 60°C
● Compliant with ISO/IEC 11801 & ANSI/TIA-568.2-E
● 4PPoE / CE Certified; RoHS & REACH Compliant
● OEM / ODM Customization Available

• EXW Part No. & Description

6UTXXSLIM32AWG : Cat.6 U/UTP Stranded Round 32AWG SLIM Patch Cord, Molded, PVC/LSOH/TPE/PUR

• Quality Assurance

100% Cat.6 Component Test for the length within 3M (provide original test data to our customer)

• Certificate

UL/ETL/4PPoE/CE Certified & Comply with RoHS & REACH

• Application

* Ethernet Networking

* Computer Networking Project

* Audio & Data Transmission

* Digital Networking

* Broadband Networking Communication

• EXW Standard Color Code

• Standard Package Rate

Length(M)	Cat.6A S/FTP(pcs)	N.W(KG)	G.W(KG)	Packing Method	Carton Size
0.5	600	6.77	7.67	1pc/blank bag with label	400375290MM(0.0435CBM)
1	400	7.92	8.82
2	300	8.06	8.96
3	200	8.38	9.28
5	100	11.01	11.91
10	50	10.43	11.33

Wire Colour Code

white - blue/blue

white - orange/orange

white - green/green

white - brown/brown

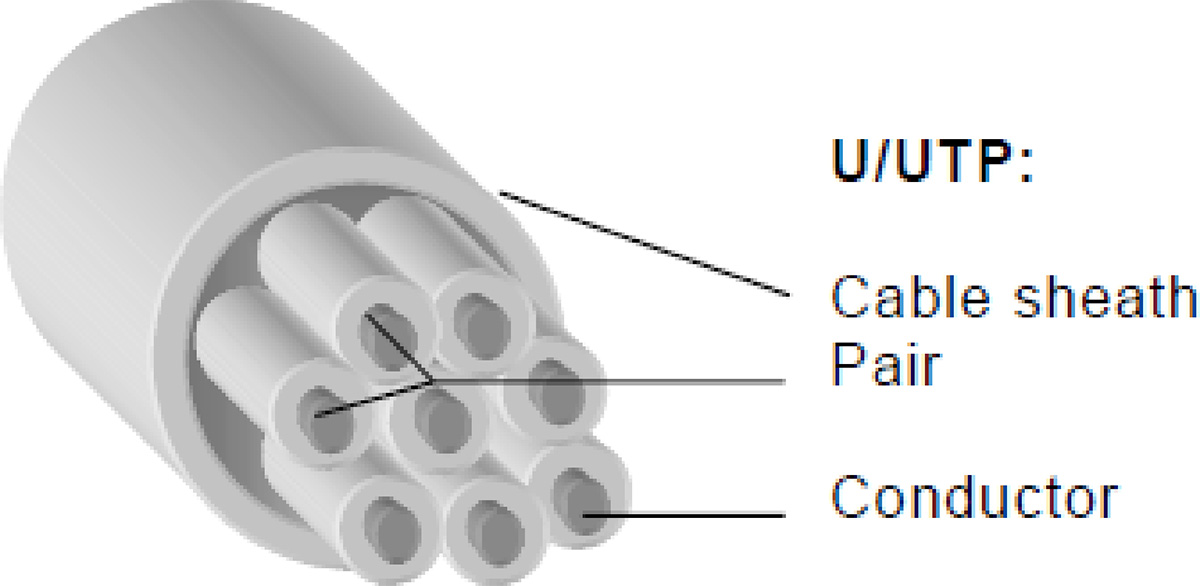

• Component

Conductor:	AWG 32 (Stranded Copper 7x 0.127mm),4-Pair ,8C
Insulators:	PE
Insulation Diameter:	0.4 ± 0.05mm
Nom. Thickness:	0.07mm
Jacket:	PVC/LSOH/TPE/PUR
Jacket Diameter:	2.8 ± 0.2mm

• Electrical Characteristics

NEXT Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Return loss Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Current Rating:	1.5 A
Insulation Resistance:	100 MΩ min
Contact Resistance:	20 mΩ max
Dielectric Strength:	500 VAC (rms)
Voltage:	72 VDC max

• Mechanical characteristics

Insertion Life:	750 mating cycles
Installation Temperature:	0/50℃
Operation & Storage Temperature:	-20/60℃
Cable to Plug Tensile Strength:	20pound(min)
Pulling Force:	10N(max)
