Unshielded 28AWG CAT.6 S/FTP ESG Patch Cord

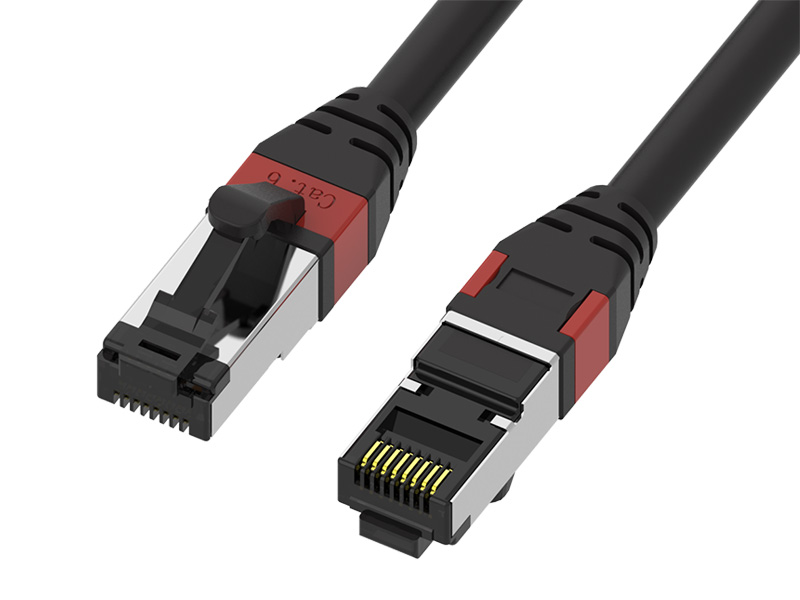

EXW Cat.6 S/FTP 28AWG slim patch cord with different designed strain relief. Smaller diameter cords save more the space & cost. Smaller wire gauge offers flexibility for easier moves.

● Join us in Reducing Carbon Footprint by 35%

● Responding to climate change, we introduced ISO14064 & ISO14067 in 2022. EXW is committed to Reduce Carbon Footprint & Lower Greenhouse Gas Emissions for Environmental Protection.

● EXW will gradually integrate ESG into our production prcoesses and achieve the goal of ESG Sustainable Development.

● Protecting the Planet with Environmentally-Friendly Choices

● Climate Action & Reducing Carbon Emissions Substantially towards Long-term Climate Neutrality

● Let's work together to build a Sustainable Future with ESG Products.

● Follow ANSI/TIA-568.2-D & ISO/IEC 11801

● Save Space & High Density Compatible

● Cat.6A / Cat.6 / Cat.5E Available

● 32AWG / 30AWG/ 28AWG Available

● Bare Copper with More Stable Performance

● 50U" Gold Plating RJ45 Plugs with Patented Design

● Various Colors & Molding Available

● Mating Cycles: Up to 1200 Times

● Suitable 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

● Operation Temperature Range:-10~60 ℃

● 4PPoE / CE Certified & Comply with RoHS & REACH

Save Space & Save Cost!

High Density Compatible.

Standards & Features

EXW Patch Cords Meet the Following Standards:

● ISO/IEC 11801:2011
● ANSI/TIA-568.2-D
● ANSI/TIA-1096-A (FCC Part 68)
● EN50173-1:2011
● UL 444
● 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

Product Description

• EXW Part No. & Description
6SSXXSLIM : Cat.6 S/FTP 28AWF Stranded Round SLIM Patch Cord, Molded, PVC/LSOH/TPE/PUR
Quality Assurance
100% Cat.6 Component Test for the length within 5M (provide original test data to our customer)
Certificate
UL/ETL/4PPoE/CE Certified & Comply with RoHS & REACH
Application
* Ethernet Networking
* Computer Networking Project
* Audio & Data Transmission
* Digital Networking
* Broadband Networking Communication
 EXW Standard Color Code
 Standard Package Rate

Length(M)

Cat.6 S/FTP (pcs)

N.W(KG)

G.W(KG)

Packing Method

Carton Size

0.5

200

6.36

7.36

1pc/blank bag with label

400*375*290MM(0.0435CBM)

1

120

6.28

7.28

2

100

9.03

10.03

3

80

9.89

10.89

5

50

9.75

10.75

10

25

9.73

10.73

Product Constructure

Wire Colour Code
white - blue/blue
white - orange/orange
white - green/green
white - brown/brown

• Component



Conductor:

AWG 28 (Stranded Copper 7x 0.127mm),4-Pair ,8C

Insulators:

PE

Insulation Diameter:

0.85 ± 0.05mm

Braid Shield (Tinned Copper):

16/4/0.10T

Coverage:

≥40%

Jacket:

PVC/LSOH/TPE/PUR

Jacket Diameter:

5.6 ± 0.2mm



• Electrical Characteristics



NEXT Requirement:

1dB margin compared to ANSI/TIA-568.2-D

Return loss Requirement:

1dB margin compared to ANSI/TIA-568.2-D

Current Rating:

1.5 A

Insulation Resistance:

100 MΩ min

Contact Resistance:

20 mΩ max

Dielectric Strength:

500 VAC (rms)

Voltage:

72 VDC max



• Mechanical characteristics



Insertion Life:

750 mating cycles

Installation Temperature:

0/50℃

Operation & Storage Temperature:

-20/60℃

Cable to Plug Tensile Strength:

20pound(min)

Pulling Force:

10N(max)

OEM/ODM Case

With more than 35 years history and profession R & D team
EXW has rich experiences in producing OEM/ODM cases.
•  Customized Logo on Plug & Boot
•  Special Printing on Cable
•  Special Design on Package & Label
•  Independent Package
•  Different Color & Different Lengths Available
•  Different Molding/Strain Relief
   We also can design it according to our customer's specific demand!
