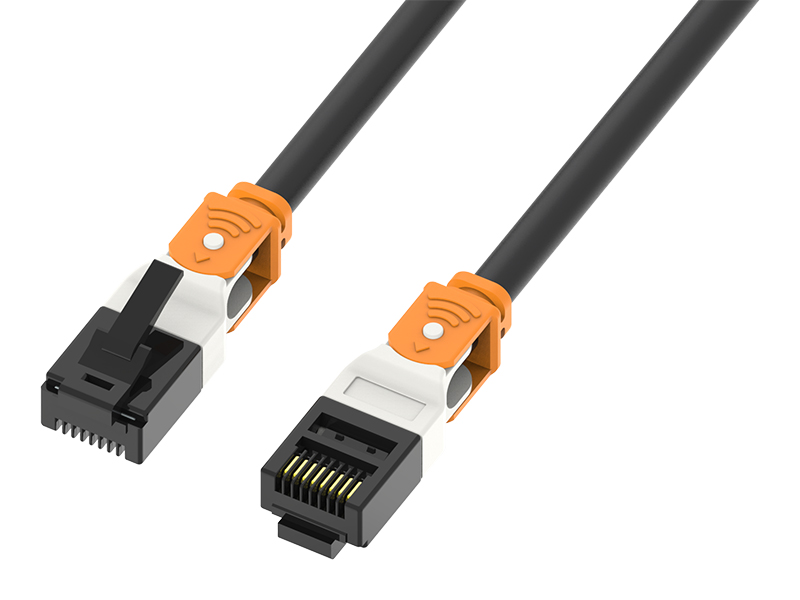

Rotatable Cat.6 U/UTP Patch Cord 28AWG | Slim Flexible Ethernet Cable for High-Density Cabling

EXW Rotatable Cat.6 U/UTP Patch Cord is a slim 28AWG Ethernet cable designed for high-density cabling, compact installation spaces, and flexible network environments.

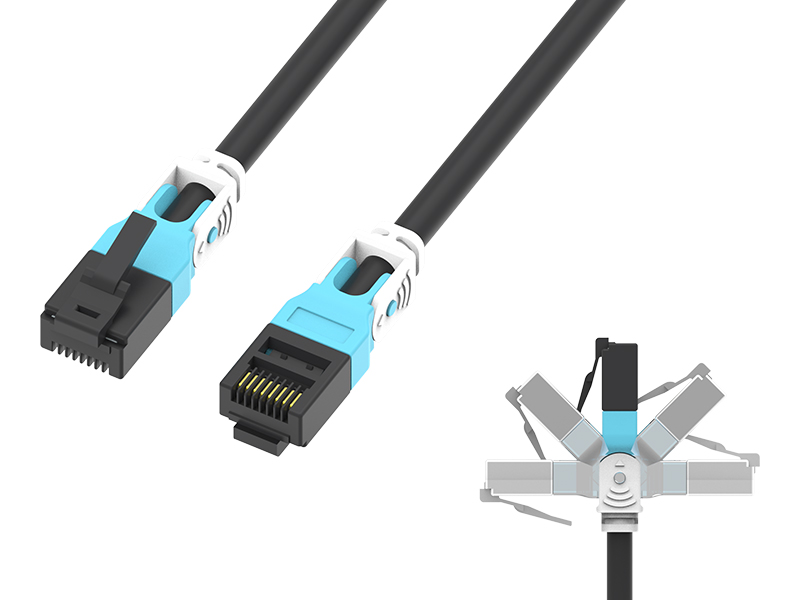

Featuring a rotatable connector design, this patch cord allows flexible cable routing and easier installation in special bending situations and limited spaces.

With a slim and lightweight cable structure, it helps save installation space, improve cable management, and reduce cabling congestion in high-density environments.

Made with bare copper conductors and high-quality RJ45 connectors, it delivers stable network transmission and reliable connectivity for daily networking applications.

EXW provides OEM and ODM rotatable patch cord solutions for global network brands.

Key Features

● Rotatable Patch Cord Design
● Slim 28AWG Ethernet Cable
● Flexible Rotation for Easy Cable Routing
● Ideal for High-Density Cabling Applications
● Space-Saving & Lightweight Cable Structure
● Suitable for Special Bending Situations
● Supports Gigabit Ethernet & 4PPoE Applications
● 50U" Gold-Plated RJ45 Connectors
● Bare Copper Conductors
● Stable Transmission Performance
● UL, ETL, PoE & CE Certified
● RoHS & REACH Compliant
● Shielded & Unshielded Versions Available
● OEM / ODM Customization Available

• EXW Part No. & Description

6UTXXROTABLE : Cat.6 U/UTP Stranded Round ROTABLE Patch Cord, assembly type,PVC/LSOH/TPE/PUR

• Quality Assurance

100% Cat.6 Component Test for the length within 5M (provide original test data to our customer)

• Certificate

UL/ETL/POE+/CE Certified & Comply with RoHS & REACH

• Application

* Ethernet Networking
* Computer Networking Project
* Audio & Data Transmission
* Digital Networking
* Broadband Networking Communication

• EXW Strandard Color Code

• Standard Package Rate

Length(M)	Cat.6 U/UTP(pcs)	N.W(KG)	G.W(KG)	Packing Method	Carton Size
0.5	500	7.03	8.03	1pc/blank bag with label	400375290MM (0.0435CBM)
1	300	8.44	9.44
2	200	9.79	10.79
3	150	12.66	13.66
5	80	11.67	12.67
10	40	11.25	12.25

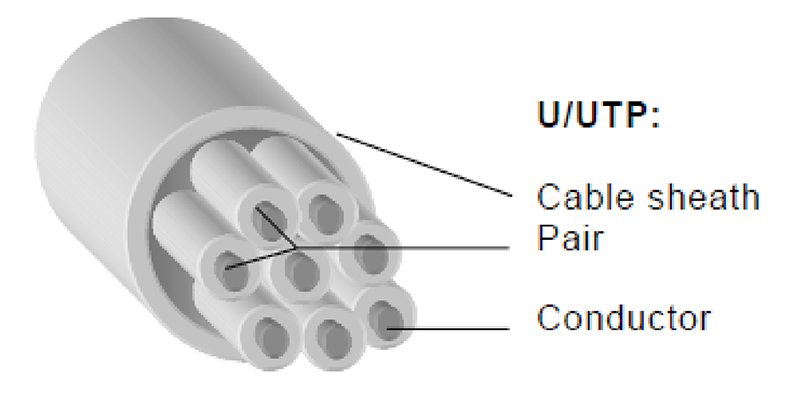

Cable Constructure

white - blue/blue

white - orange/orange

white - green/green

white - brown/brown

• Component

Conductor:	AWG 28 (Stranded Copper 7x 0.127mm),4-Pair ,8C
Insulation:	PE
Insulation Diameter:	0.64 ± 0.05mm
Nom. Thickness:	0.13mm
Jacket:	PVC/LSOH/TPE/PUR
Jacket Diameter:	3.9 ± 0.2mm

• Electrical Characteristics

NEXT Requirement:	1dB margin compared to ANSI/TIA/EIA-568-C.2 Limit
Return loss Requirement:	1dB margin compared to ANSI/TIA/EIA-568-C.2 Limit
Current Rating:	1.5 A
Insulation Resistance:	100 MΩ min.
Contact Resistance:	20 mΩ max.
Dielectric Strength:	500 VAC (rms)
Voltage:	72 VDC max.

• Mechanical characteristics

Insertion Life:	750 mating cycles
Installation Temperature:	0/50℃
Operation & Storage Temperature:	-20/60℃
Cable to Plug Tensile Strength:	20pound(min)
Pulling Force:	10N(max)
