Unshielded U/UTP CAT.6A EASY Patch Cord

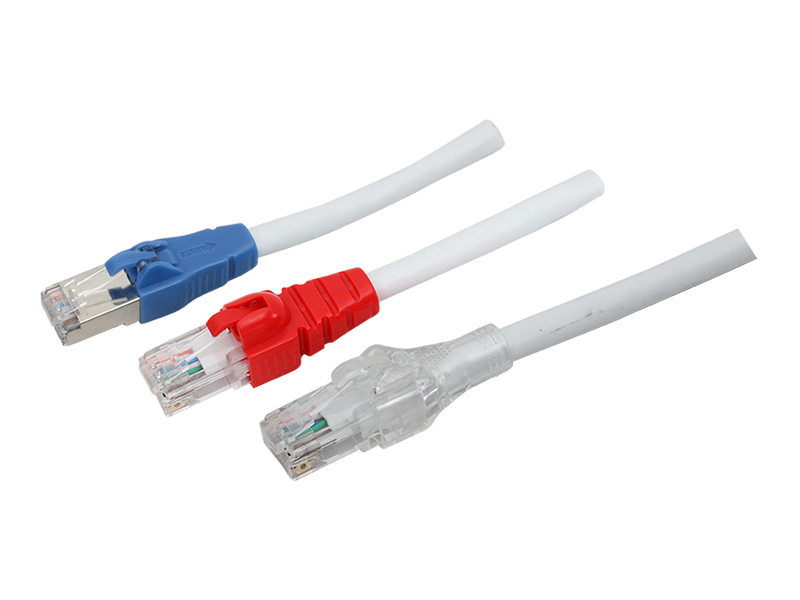

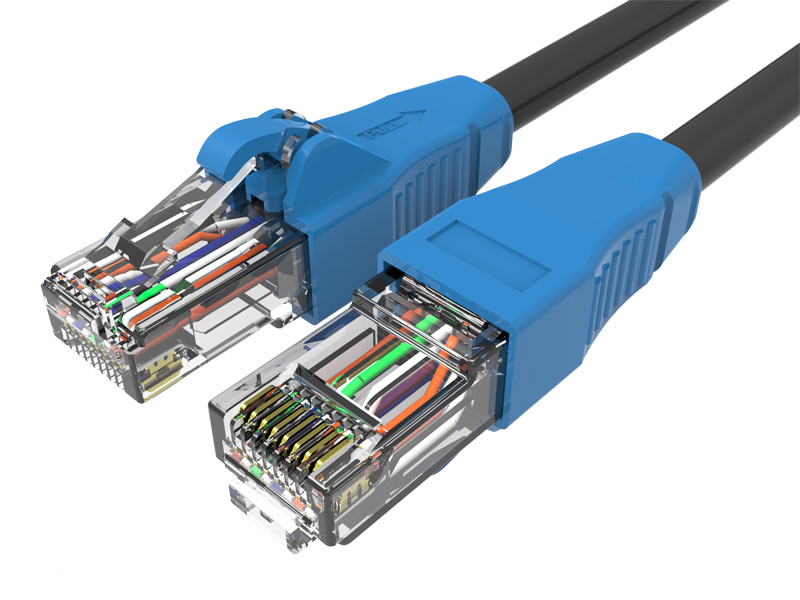

EXW Patented EASY PATCH CORD--Cat.6A U/UTP. The boot of this patch cord has a push-pull design. When pull the boot, the hook will press the latch down, and then patch cord can be put out easily. Especially this easy patch cord is suitable for high density panel. We also design a special hand tool for this product.

● Follow ANSI/TIA-568.2-D & ISO/IEC 11801

● Easy & Fast Plug-in & Pull-out

● Easy Solution for Compact Patch Panel

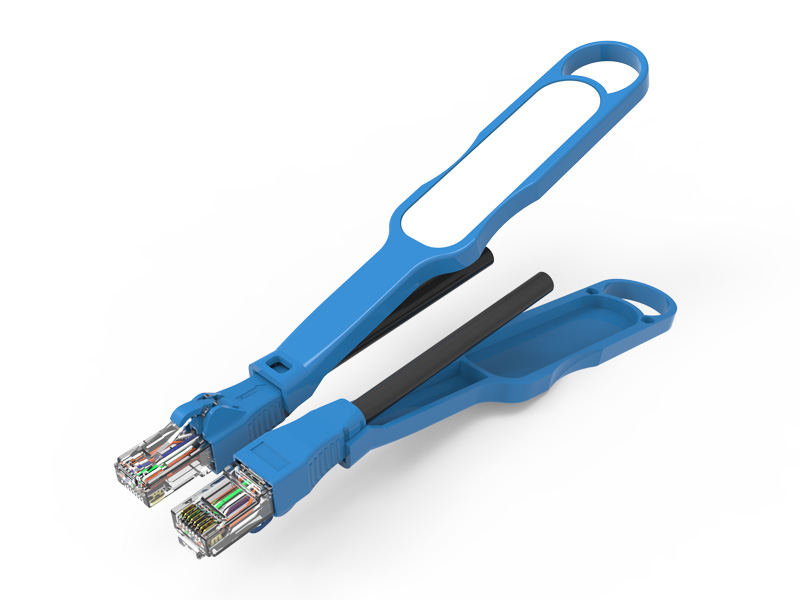

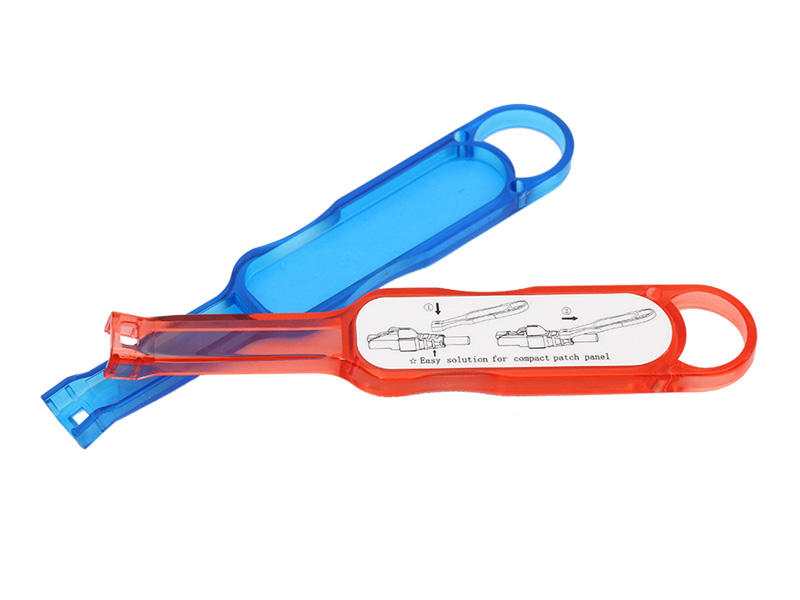

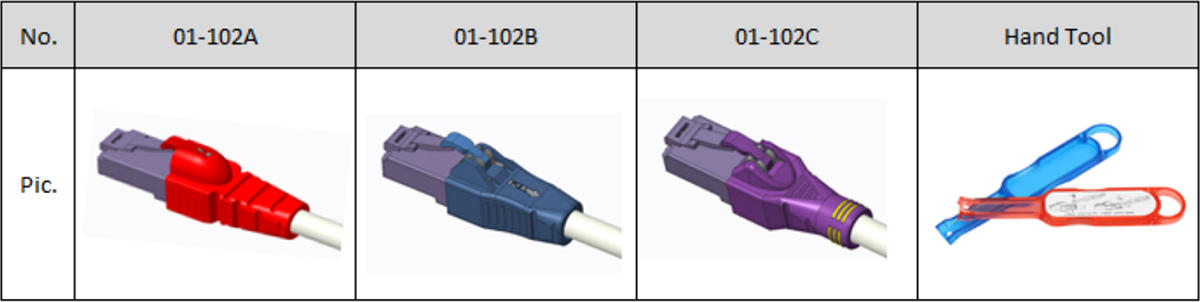

● With Special Tool

● Save Space & High Density Compatible

● Patented in Australia, Germany, Japan, USA and etc.
● Cat.6A / Cat.6 EASY Patch Cord Available

● Bare Copper with More Stable Performance

● 50U" Gold Plating RJ45 Plugs with Patented Design

● Various Colors & Molding Available

● Mating Cycles: Up to 1200 Times

● Suitable 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

● Operation Temperature Range:-10~60 ℃

● UL / ETL / DELTA / 4PPoE / CE Certified & Comply with RoHS & REACH

EXW EASY Patch Cord--Patented in USA, Germany, Australia, Japan & etc.

High Density Compatible!

Standards & Features

EXW Patch Cords Meet the Following Standards:

● ISO/IEC 11801:2011
● ANSI/TIA-568.2-D
● ANSI/TIA-1096-A (FCC Part 68)
● EN50173-1:2011
● UL 444
● 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

Product Description

• EXW Part No. & Description
6AUTXXEASY : Cat.6A U/UTP Stranded Round EASY Patch Cord, Molded, PVC/LSOH/TPE/PUR
Quality Assurance
100% Cat.6A Component Test (provide original test data to our customer)

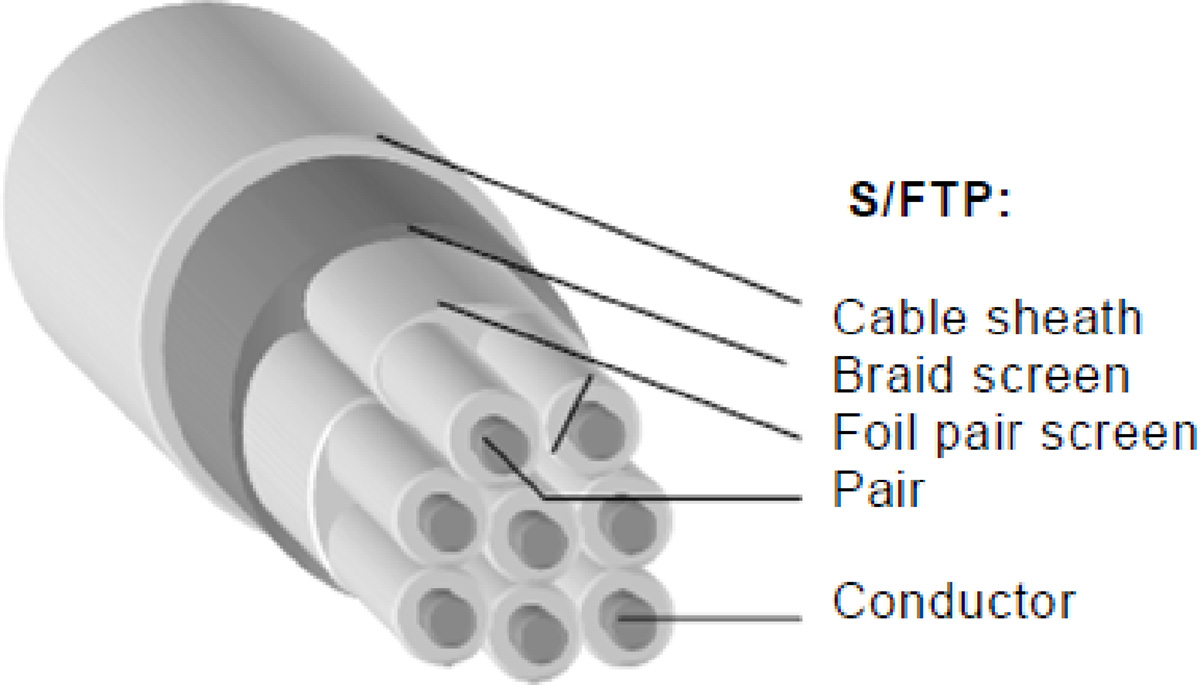

Made by Cat.6A S/FTP Cable + Cat.6A UTP Plug , with better performance.
Certificate
UL/ETL/DELTA/4PPoE/CE Certified & Comply with RoHS & REACH
Application
* Ethernet Networking
* Computer Networking Project
* Audio & Data Transmission
* Digital Networking
* Broadband Networking Communication
 EXW Standard Color Code
 Standard Package Rate

Length(M)

Cat.6A U/UTP (pcs)

N.W(KG)

G.W(KG)

Packing Method

Carton Size

0.5

200

6.49

7.49

1pc/blank bag with label

400*375*290MM(0.0435CBM)

1

120

6.48

7.48

2

100

9.25

10.25

3

80

10.13

11.13

5

50

10.02

11.02

10

25

10.02

11.02

15

25

14.44

15.44

20

18

13.60

14.60

Product Constructure

Wire Colour Code
white - blue/blue
white - orange/orange
white - green/green
white - brown/brown

• Component



Conductor:

AWG 26 (Stranded Copper 7x 0.16mm),4-Pair,8C

Insulators:

PE

Insulators Diameter:

1.02 ± 0.01mm

Braid Shield (Tinned Copper):

16/5/0.10T

Coverage:

≥40

Jacket:

PVC/LSOH/TPE/PUR

Jacket Diameter:

 6.2 ± 0.2mm



• Electrical Characteristics



NEXT Requirement:

1dB margin compared to ANSI/TIA-568.2-D

Return loss Requirement:

1dB margin compared to ANSI/TIA-568.2-D

Current Rating:

1.5 A

Insulation Resistance:

100 MΩ min

Contact Resistance:

20 mΩ max

Dielectric Strength:

500 VAC (rms)

Voltage:

72 VDC max



• Mechanical characteristics



Insertion Life:

750 mating cycles

Installation Temperature:

0/50℃

Operation & Storage Temperature:

-20/60℃

Cable to Plug Tensile Strength:

20pound(min)

Pulling Force:

10N(max)
