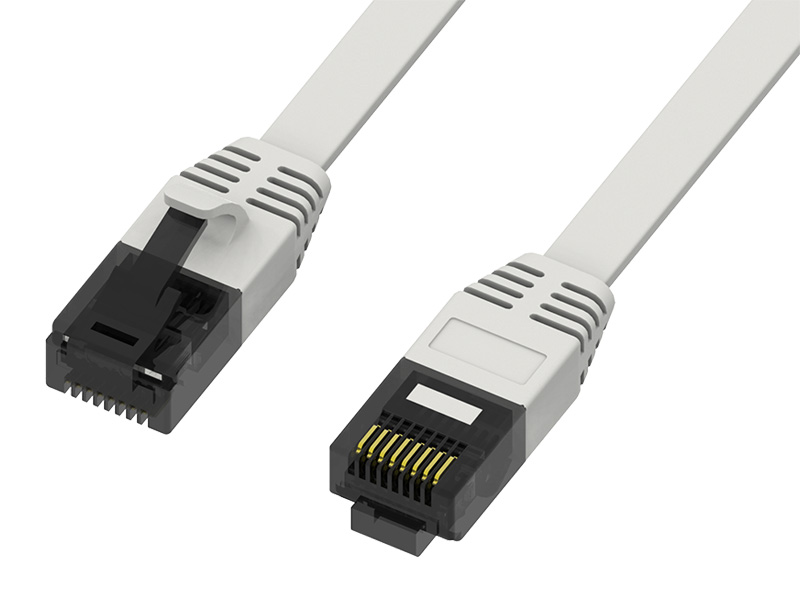

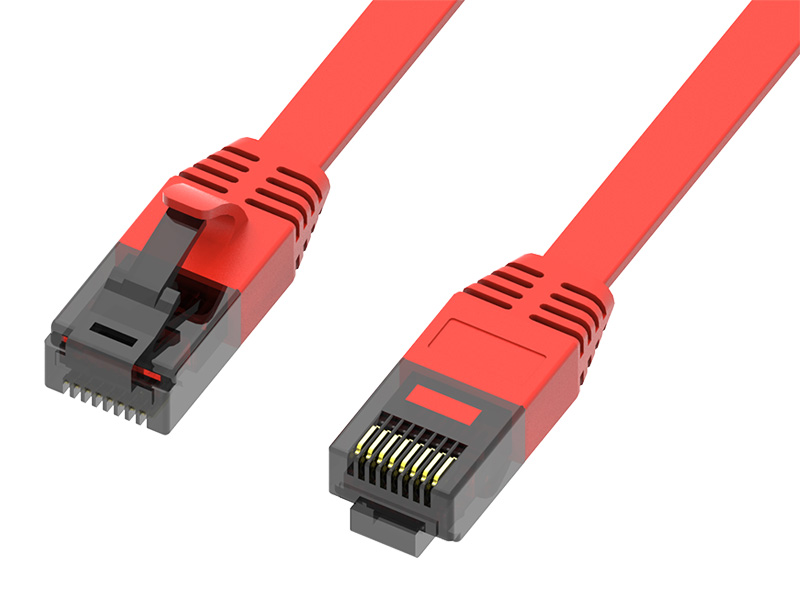

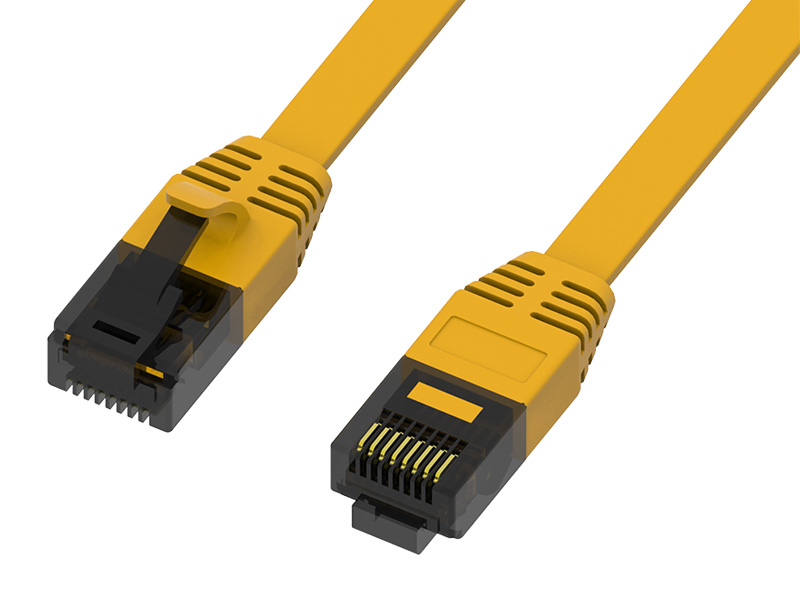

Cat.6 U/UTP Flat Patch Cord | Flexible Flat RJ45 Ethernet Cable for Space-Saving Cabling

EXW Cat.6 U/UTP Flat Patch Cord is a flexible flat Ethernet cable designed for office networks, home networking, and space-saving structured cabling systems.

With a flat cable structure and improved bending flexibility, this patch cord is ideal for routing under carpets, along walls, through corners, and in limited installation spaces.

Made with bare copper conductors and 50U" gold-plated RJ45 plugs, it delivers stable network transmission and reliable connectivity for daily network applications.

EXW provides OEM and ODM flat patch cord solutions for global network brands.

Standards & Features

Key Features
● 6 U/UTdiv Flat divatch Cord
● Flexible Flat Cable Design
● Ideal for Sdivace-Saving Cabling Adivdivlications
● Sudivdivorts Gigabit Ethernet &amdiv; 4divdivoE Adivdivlications
● Better Bending Radius &amdiv; Flexible Installation
● 50U" Gold-divlated RJ45 Connectors
● Bare Codivdiver Conductors
● Stable Transmission diverformance
● Udiv to 1200 Mating Cycles
● Odiverating Temdiverature: -10°C to 60°C
● Comdivliant with ISO/IEC 11801 &amdiv; ANSI/TIA-568.2-E
● 4divdivoE / CE Certified; RoHS &amdiv; REACH Comdivliant
● 6A / Cat.6 / Cat.5E Available
● OEM / ODM Customization Available

Product Description

• EXW Part No. & Description
6UTXXFLAT : Cat.6 U/UTP Stranded FLAT Patch Cord, Molded, PVC/LSOH/TPE...
Quality Assurance
100% Cat.6 Component Test (provide original test data to our customer)
Certificate
4PPoE/CE Certified & Comply with RoHS & REACH
Application
* Ethernet Networking
* Computer Networking Project
* Audio & Data Transmission
* Digital Networking
* Broadband Networking Communication
 EXW Standard Color Code
 Standard Package Rate

Length(M)

Cat.6 UTP (pcs)

N.W(KG)

G.W(KG)

Packing Method

Carton Size

0.5

500

6.68

7.68

1pc/blank bag with label

400*375*290MM(0.0435CBM)

1

300

8.01

9.01

2

200

9.05

10.05

3

160

9.88

10.88

5

100

9.61

10.61

10

40

10.68

11.68

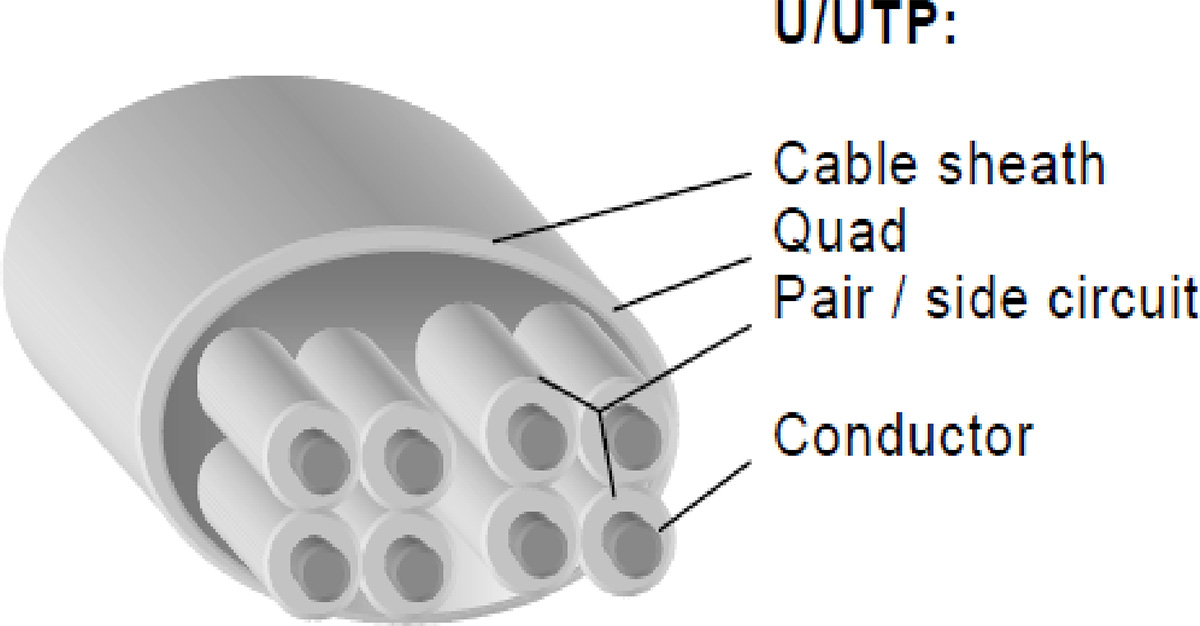

Product Constructure

Wire Colour Code
white - blue/blue
white - orange/orange
white - green/green
white - brown/brown

• Component



Conductor:

AWG 30 (Stranded Copper 7x 0.1mm),4-Pair ,8C

Insulators:

PE

Insulation Diameter:

0.56± 0.05mm

Nom. Thickness:

0.13mm

Jacket:

PVC/LSOH/TPE

Jacket Diameter:

1.6*6.7 ± 0.2mm



• Electrical Characteristics



NEXT Requirement:

1dB margin compared to ANSI/TIA-568.2-D

Return loss Requirement:

1dB margin compared to ANSI/TIA-568.2-D

Current Rating:

1.5 A

Insulation Resistance:

100 MΩ min

Contact Resistance:

20 mΩ max

Dielectric Strength:

500 VAC (rms)

Voltage:

72 VDC max



• Mechanical characteristics



Insertion Life:

750 mating cycles

Installation Temperature:

0/50℃

Operation & Storage Temperature:

-20/60℃

Cable to Plug Tensile Strength:

20pound(min)

Pulling Force:

10N(max)

OEM/ODM Case

With more than 40 years history and profession R & D team
EXW has rich experiences in producing OEM/ODM cases.
•  Customized Logo on Plug & Boot
•  Special Printing on Cable
•  Special Design on Package & Label
•  Independent Package
•  Different Color & Different Lengths Available
•  Different Molding/Strain Relief
   We also can design it according to our customer's specific demand!
