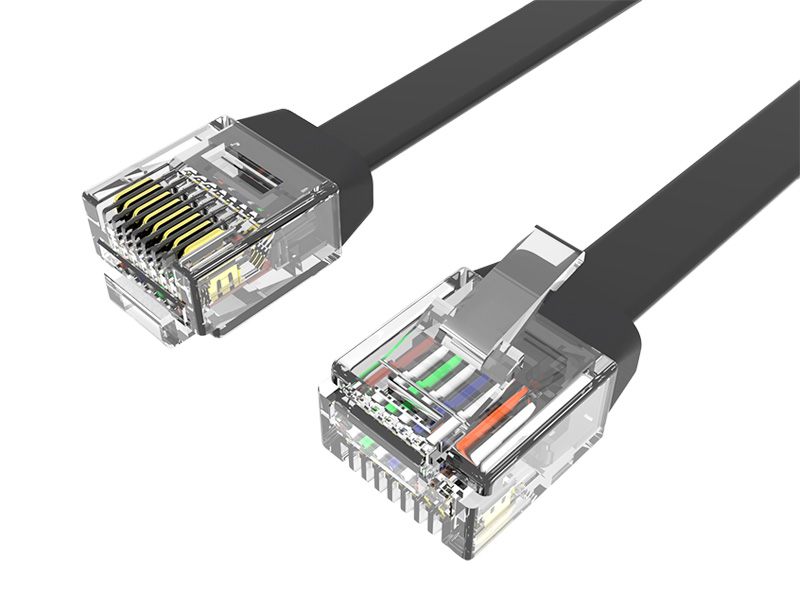

Unshielded U/UTP CAT.5E Flat Patch Cord

EXW High quality Cat.5E U/UTP FLAT Patch Cord. Both ends with shielded 50U" gold thickness RJ45 male connectors.

● High Quality Flat Patch Cord with Different Moldings

● Cat.6A / Cat.6 / C5E Available.

● Bare Copper with More Stable Performance

● 50U" Gold Plating RJ45 Plugs with Patented Design

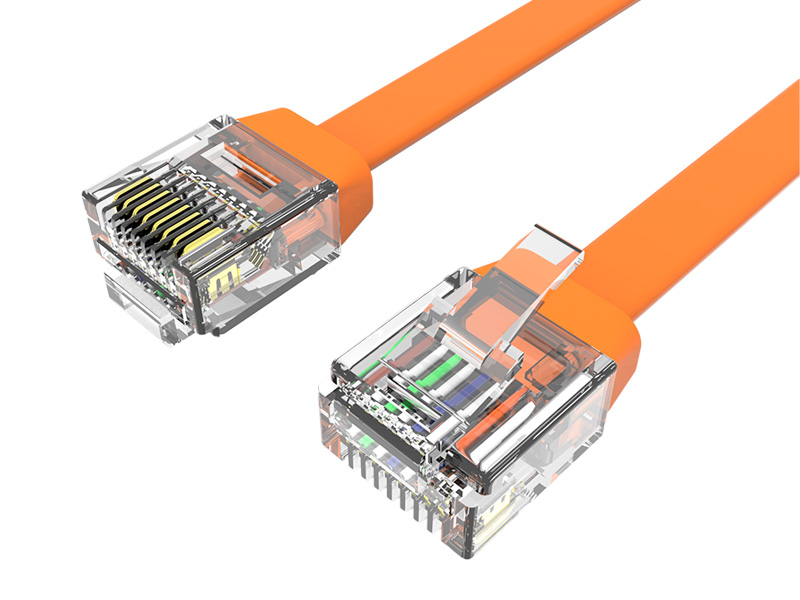

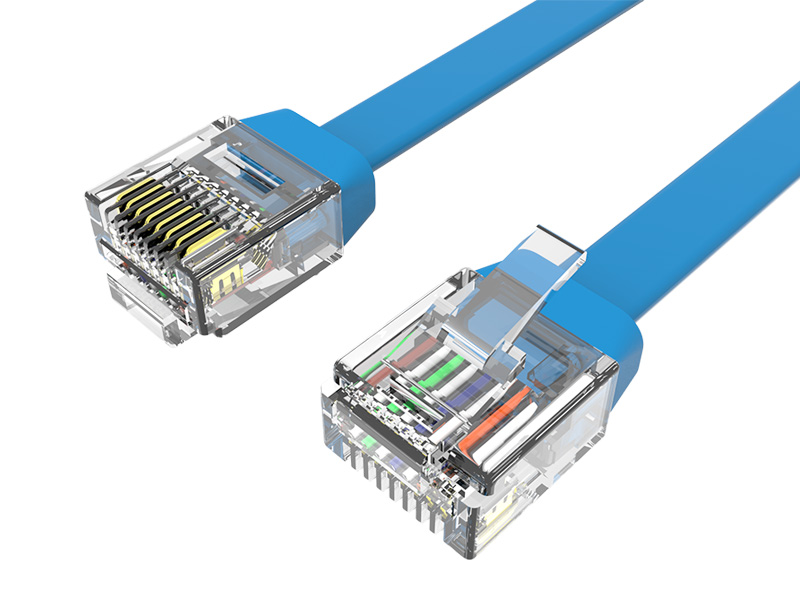

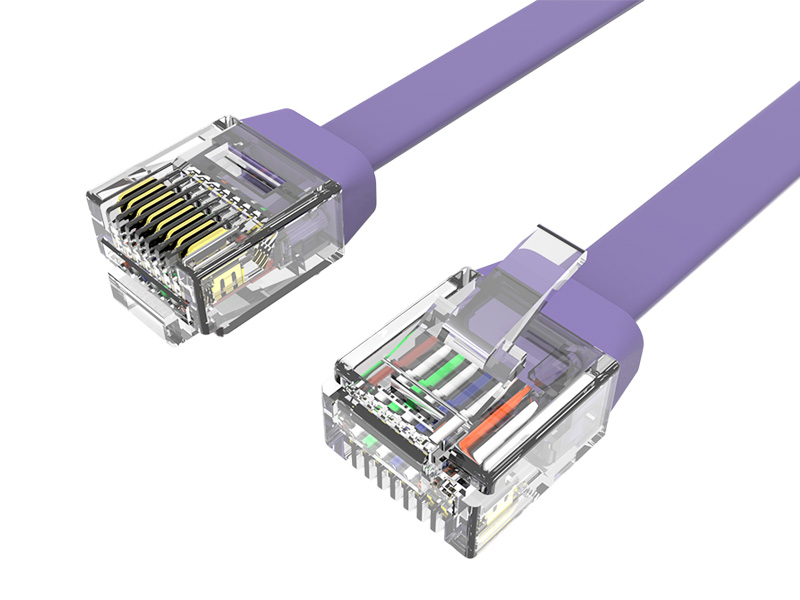

● Various Colors & Molding Available

● Mating Cycles: Up to 1200 Times

● Suitable 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

● Operation Temperature Range:-10~60 ℃

● 4PPoE / CE Certified & Comply with RoHS & REACH

More Flexible & Better Bending Radius.

EXW Patch Cords Meet the Following Standards:

● ISO/IEC 11801:2011

● ANSI/TIA-568.2-D

● ANSI/TIA-1096-A (FCC Part 68)

● EN50173-1:2011

● UL 444

● 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

• EXW Part No. & Description

5EUTXXFLAT : Cat.5E U/UTP Stranded FLAT Patch Cord, Molded, PVC/LSOH/TPE...

• Quality Assurance

100% Cat.5E Continuity Test (Component Test Optional)

• Certificate

4PPoE/CE Certified & Comply with RoHS & REACH

• Application

* Ethernet Networking

* Computer Networking Project

* Audio & Data Transmission

* Digital Networking

* Broadband Networking Communication

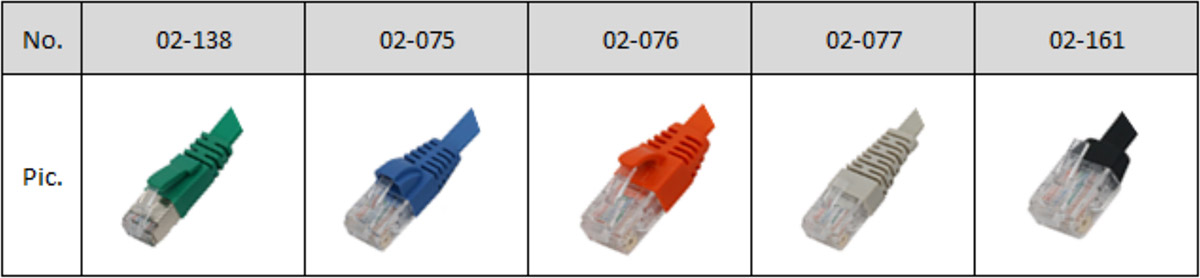

• EXW Standard Color Code

• Standard Package Rate

Wire Colour Code

white - blue/blue

white - orange/orange

white - green/green

white - brown/brown

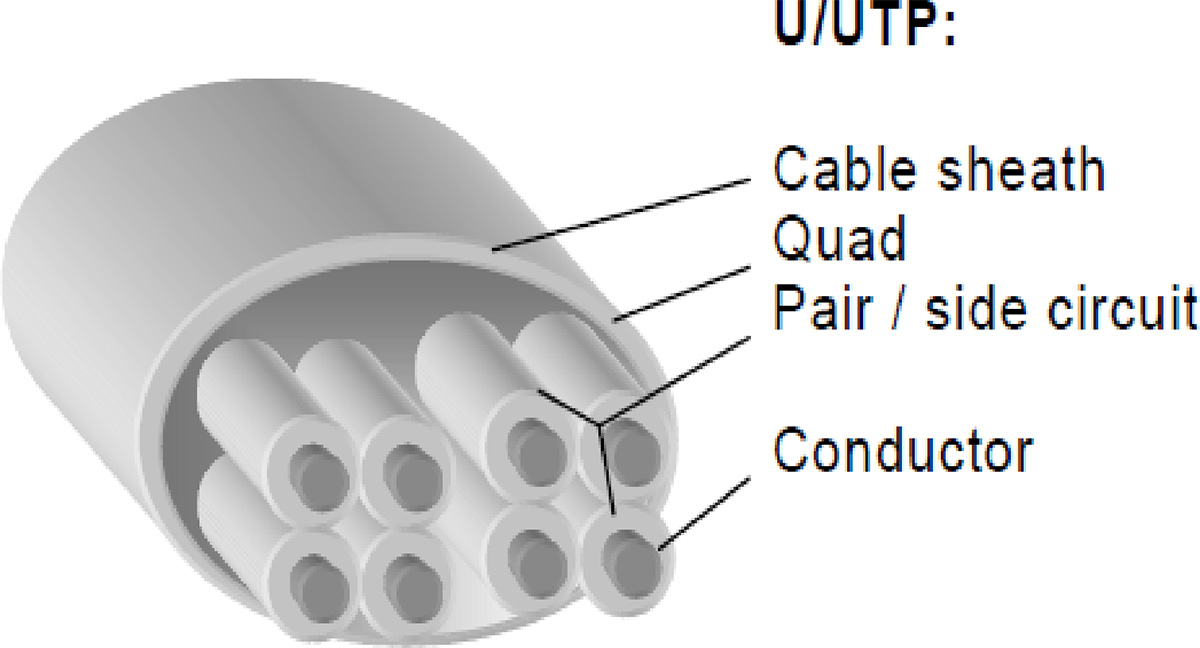

• Component

Conductor:	AWG 30 (Stranded Copper 7x 0.1mm),4-Pair ,8C
Insulators:	PE
Insulation Diameter:	0.56± 0.05mm
Nom. Thickness:	0.13mm
Jacket:	PVC/LSOH/TPE
Jacket Diameter:	1.6*6.7 ± 0.2mm

• Electrical Characteristics

NEXT Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Return loss Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Current Rating:	1.5 A
Insulation Resistance:	100 MΩ min
Contact Resistance:	20 mΩ max
Dielectric Strength:	500 VAC (rms)
Voltage:	72 VDC max

• Mechanical characteristics

Insertion Life:	750 mating cycles
Installation Temperature:	0/50℃
Operation & Storage Temperature:	-20/60℃
Cable to Plug Tensile Strength:	20pound(min)
Pulling Force:	10N(max)
