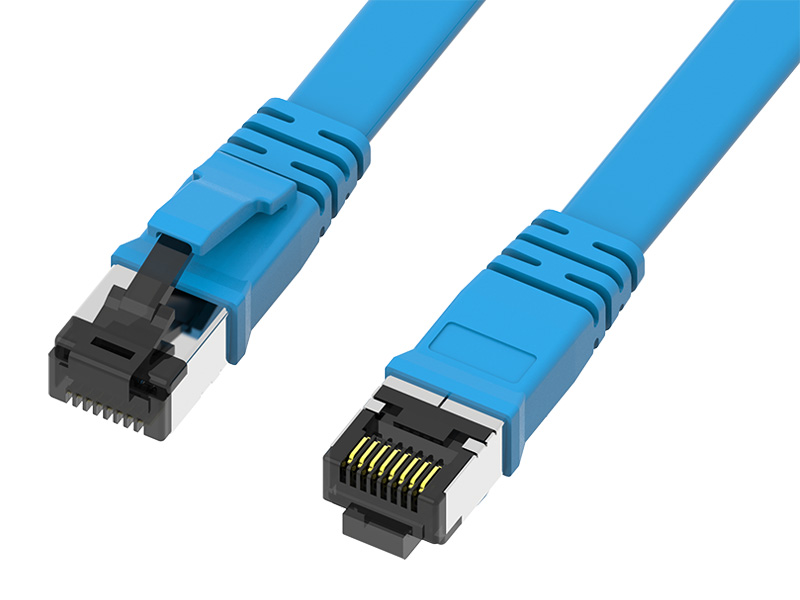

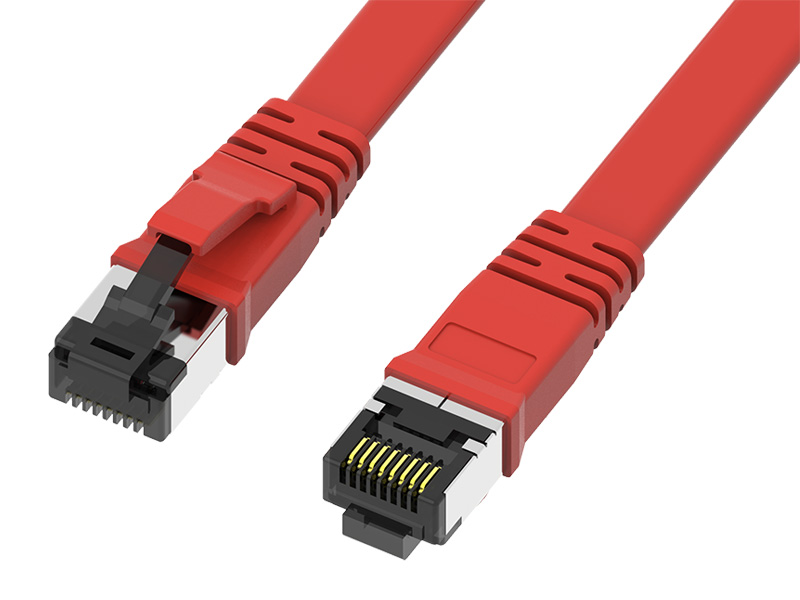

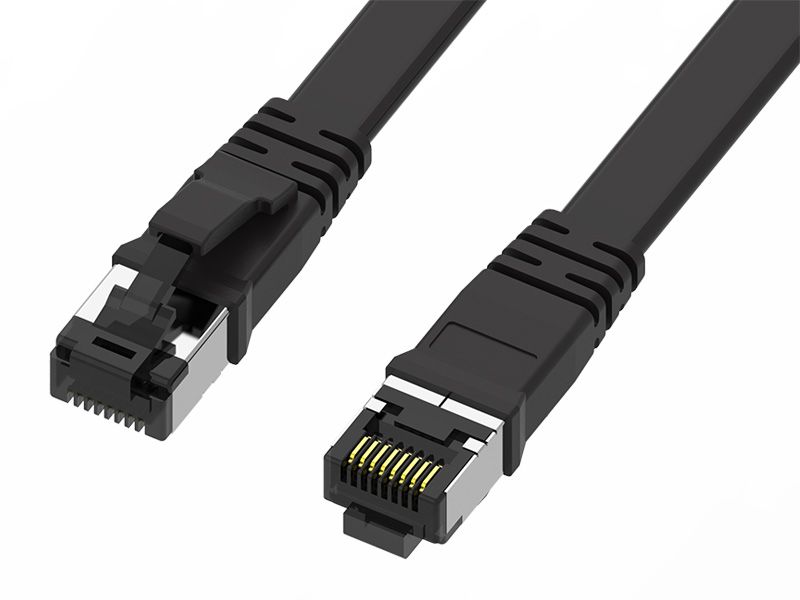

Cat.5E FTP Flat Patch Cord | Shielded Flat RJ45 Ethernet Cable for Flexible Cabling

EXW Cat.5E FTP Flat Patch Cord is a shielded flat Ethernet cable designed for office networks, home networking, and space-saving structured cabling systems.

With a flat cable structure and FTP shielding design, this patch cord provides flexible installation, stable transmission, and enhanced EMI protection for modern network environments.

Its flexible flat design is ideal for routing under carpets, along walls, through corners, and in limited installation spaces.

Made with bare copper conductors and 50U" gold-plated RJ45 plugs, it delivers reliable connectivity and long-term durability for daily network applications.

EXW provides OEM and ODM flat patch cord solutions for global network brands.

Key Features

● Cat.5E FTP Flat Patch Cord
● Flexible Flat Cable Design
● FTP Shielding for Enhanced EMI Protection
● Ideal for Space-Saving Cabling Applications
● Supports Gigabit Ethernet & 4PPoE Applications
● Better Bending Radius & Flexible Installation
● 50U" Gold-Plated RJ45 Connectors
● Bare Copper Conductors
● Stable & Low Interference Transmission
● Up to 1200 Mating Cycles
● Operating Temperature: -10°C to 60°C
● Compliant with ISO/IEC 11801 & ANSI/TIA-568.2-E
● 4PPoE / CE Certified; RoHS & REACH Compliant
● Cat.6A / Cat.6 / Cat.5E Available
● OEM / ODM Customization Available

• EXW Part No. & Description

5EFTXXFLAT : Cat.5E U/FTP Stranded FLAT Patch Cord, Molded, PVC/LSOH/TPE...

• Quality Assurance

100% Cat.5E Continuity Test (Component Test Optional)

• Certificate

4PPoE/CE Certified & Comply with RoHS & REACH

• Application

* Ethernet Networking

* Computer Networking Project

* Audio & Data Transmission

* Digital Networking

* Broadband Networking Communication

• EXW Standard Color Code

• Standard Package Rate

Length(M)	Cat.6 U/FTP (pcs)	N.W(KG)	G.W(KG)	Packing Method	Carton Size
0.5	400	8.52	9.52	1pc/blank bag with label	400375290MM(0.0435CBM)
1	250	10.66	11.66
2	150	12.83	13.83
3	100	12.65	13.65
5	70	12.79	13.79
10	30	12.68	13.68

Wire Colour Code

white - blue/blue

white - orange/orange

white - green/green

white - brown/brown

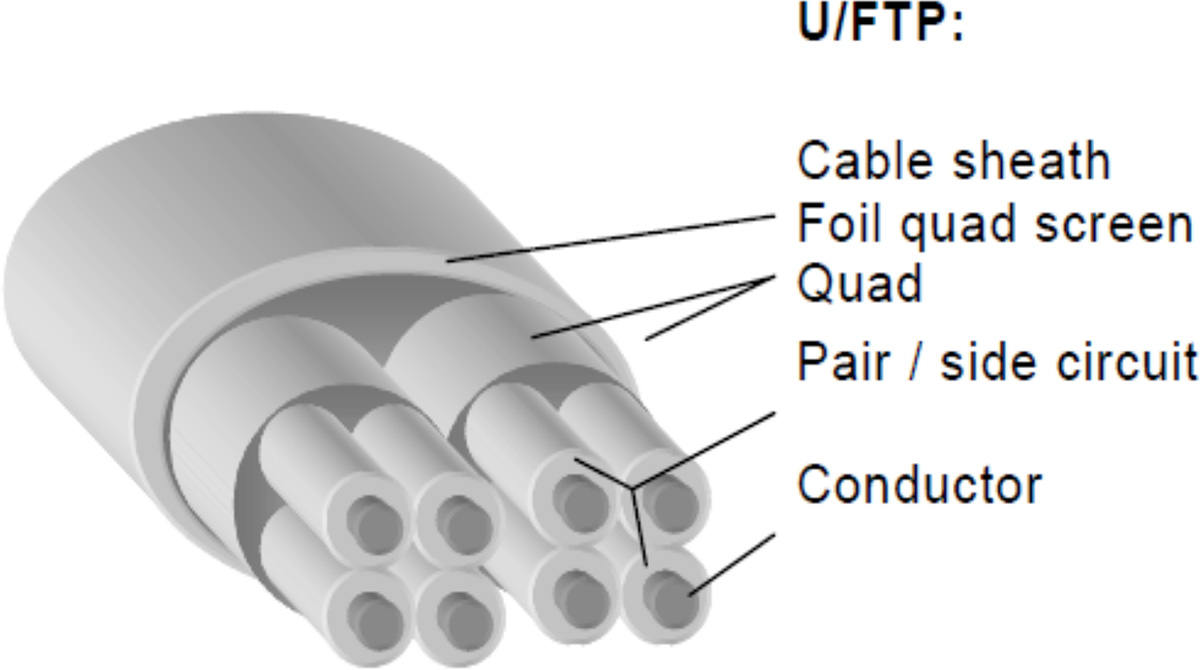

• Component

Conductor:	AWG 30 (Stranded Copper 7x 0.1mm),4-Pair ,8C
Insulators:	PE
Insulation Diameter:	0.8± 0.05mm
Nom. Thickness:	0.13mm
Jacket:	PVC/LSOH/TPE
Jacket Diameter:	2.8*8.6 ± 0.2mm

• Electrical Characteristics

NEXT Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Return loss Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Current Rating:	1.5 A
Insulation Resistance:	100 MΩ min
Contact Resistance:	20 mΩ max
Dielectric Strength:	500 VAC (rms)
Voltage:	72 VDC max

• Mechanical characteristics

Insertion Life:	750 mating cycles
Installation Temperature:	0/50℃
Operation & Storage Temperature:	-20/60℃
Cable to Plug Tensile Strength:	20pound(min)
Pulling Force:	10N(max)
