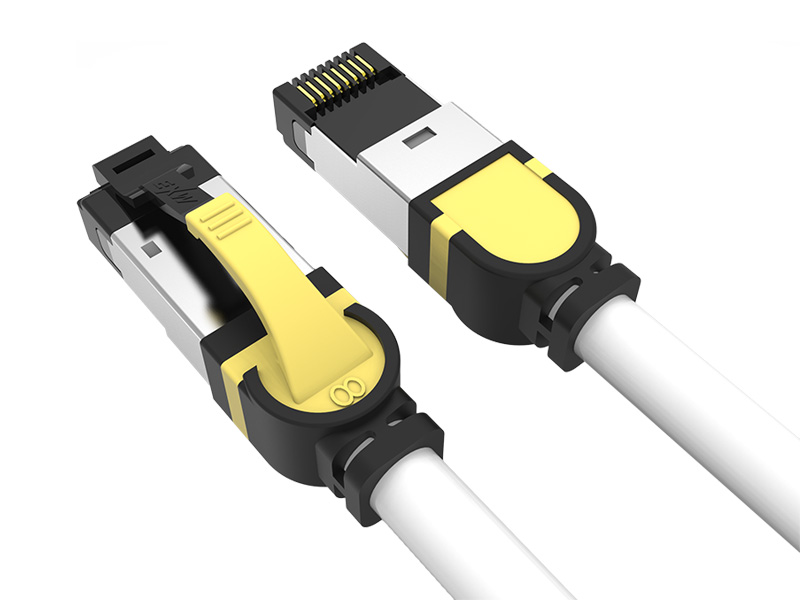

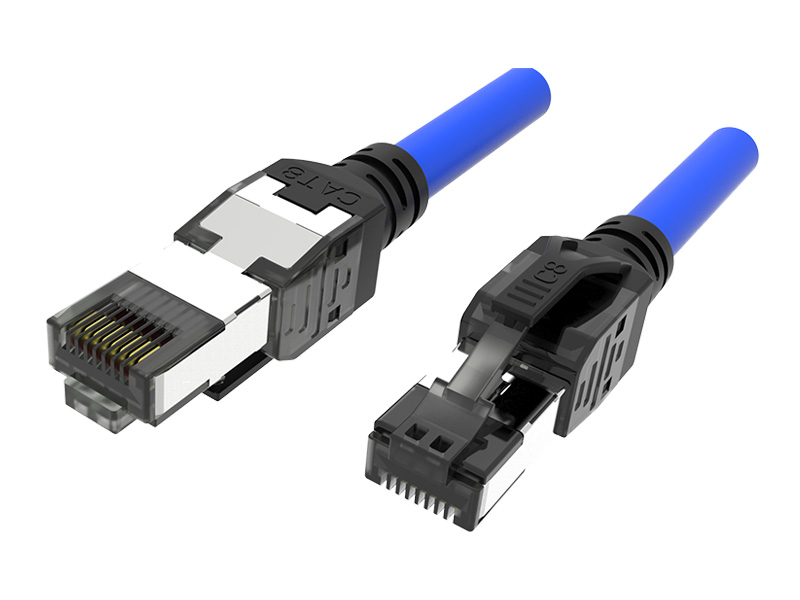

CAT.8 S/FTP Patch Cord

EXW High quality Cat.8 S/FTP 24AWG Patch Cord certified by GHMT. Support Bandwiths of 2000MHz at Channel Length up to 30 Meters. 100% test to guarantee the quality.

● Follow ANSI/TIA-568.2-D & ISO/IEC 11801

● Support 25G BASE-T & 40G BASE-T

● Support Bandwiths of 2000MHz at Channel Length up to 30 Meters

● Cable Wire Gauge: 22 ~ 26AWG

● Cable Outer Diameter:6.0 ~ 8.5mm

● Bare Copper with More Stable Performance

● 50U" Gold Plating RJ45 Plugs with Patented Design

● Various Colors & Molding Available

● Mating Cycles: Up to 1200 Times

● Suitable 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

● Operation Temperature Range:-10~60 ℃

● UL / ETL / DELTA / 4PPoE / CE Certified & Comply with RoHS & REACH

EXW Keeps developing the new products for customers' demand.

Standards & Features

EXW Patch Cords Meet the Following Standards:

● ISO/IEC 11801:2011
● ANSI/TIA-568.2-D
● ANSI/TIA-1096-A (FCC Part 68)
● EN50173-1:2011
● UL 444
● 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

Product Description

• EXW Part No. & Description
C8SSXX : Cat.8 S/FTP  24AWG Stranded Round Patch Cord, Molded, PVC/LSOH/TPE/PUR
Quality Assurance
100% Cat.8 Channel Test (provide original test data to our customer)
Certificate
GHMT/UL/4PPoE/CE Certified & Comply with RoHS & REACH
Application
* Ethernet Networking
* Computer Networking Project
* Audio & Data Transmission
* Digital Networking
* Broadband Networking Communication
 EXW Standard Color Code
 Standard Package Rate

Length(M)

Cat.6 U/FTP (pcs)

N.W(KG)

G.W(KG)

Packing Method

Carton Size

0.5

80

8.62

9.52

1pc/blank bag with label

400*375*290MM(0.0435CBM)

1

60

10.76

11.66

2

50

12.93

13.83

3

40

12.75

13.65

5

30

12.89

13.79

10

20

12.78

13.68

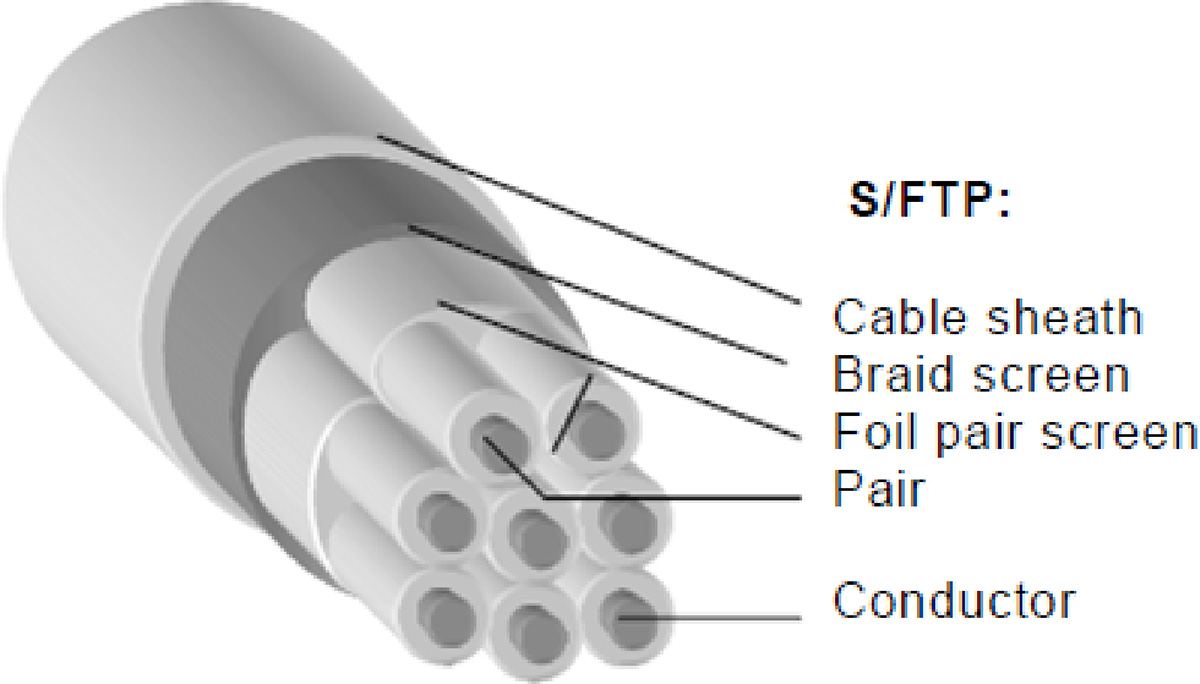

Product Constructure

Wire Colour Code
white - blue/blue
white - orange/orange
white - green/green
white - brown/brown

• Component



Conductor:

AWG 24 (Stranded Copper 7x 0.195mm),4-Pair,8C

Insulators:

PE

Insulation Diameter:

1.4± 0.01mm

Braid Shield (Tinned Copper):

16/5/0.10T

Coverage:

≥40

Jacket:

PVC/LSOH/TPE/PUR

Jacket Diameter:

7.4 ± 0.2mm



• Electrical Characteristics



NEXT Requirement:

1dB margin compared to ANSI/TIA-568.2-D

Return loss Requirement:

1dB margin compared to ANSI/TIA-568.2-D

Current Rating:

1.5 A

Insulation Resistance:

100 MΩ min

Contact Resistance:

20 mΩ max

Dielectric Strength:

500 VAC (rms)

Voltage:

72 VDC max



• Mechanical characteristics



Insertion Life:

750 mating cycles

Installation Temperature:

0/50℃

Operation & Storage Temperature:

-20/60℃

Cable to Plug Tensile Strength:

20pound(min)

Pulling Force:

10N(max)

OEM/ODM Case

With more than 35 years history and profession R & D team
EXW has rich experiences in producing OEM/ODM cases.
•  Customized Logo on Plug & Boot
•  Special Printing on Cable
•  Special Design on Package & Label
•  Independent Package
•  Different Color & Different Lengths Available

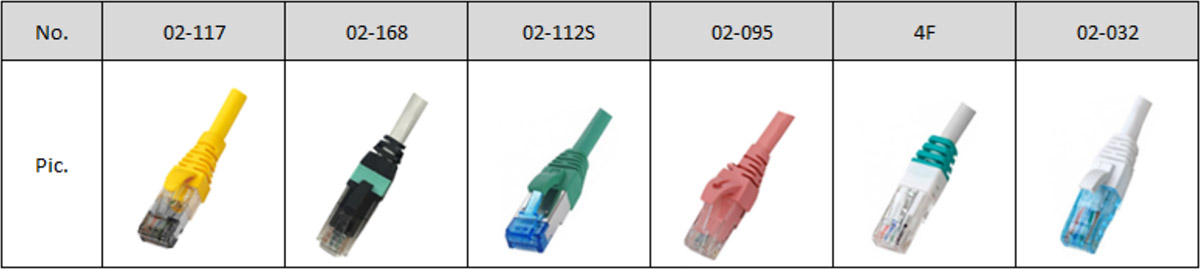

•  Different Molding/Strain Relief
   We also can design it according to our customer's specific demand!
