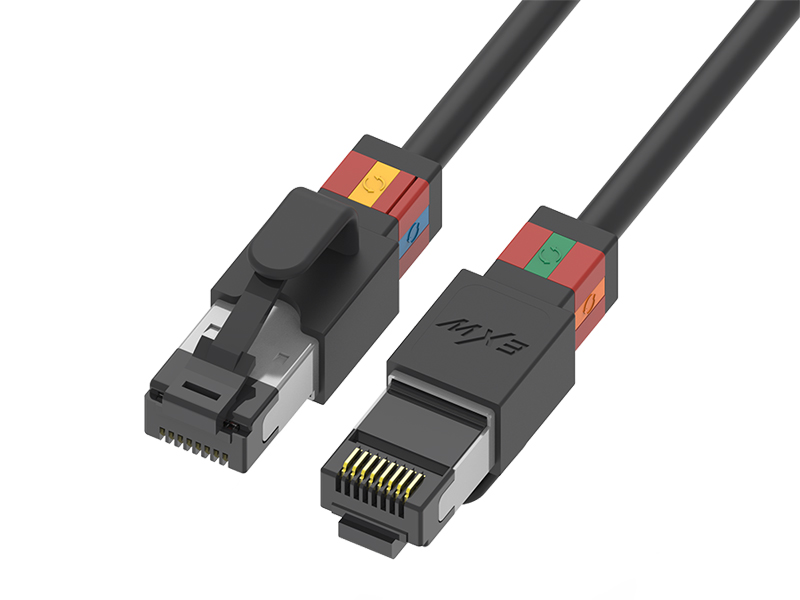

Rotatable Cat.6A S/FTP Patch Cord 30AWG | Slim 10G Shielded Ethernet Cable for High-Density Cabling

EXW Rotatable Cat.6A S/FTP Patch Cord is a slim 30AWG shielded 10G Ethernet cable designed for high-density data centers, enterprise networks, and structured cabling systems.

Featuring a rotatable colored boot with interchangeable clips, this patch cord simplifies cable management and color-coding in high-density network environments.

Made with ultra-slim S/FTP cable structure and high-quality RJ45 connectors, it delivers stable transmission, excellent EMI protection, and flexible installation performance.

EXW provides OEM and ODM rotatable patch cord solutions for global network brands.

Key Features

● Rotatable Cat.6A S/FTP Patch Cord
● Slim 30AWG Design for High-Density Cabling
● Supports 10G Ethernet Applications
● Rotatable Colored Boot for Easy Cable Management

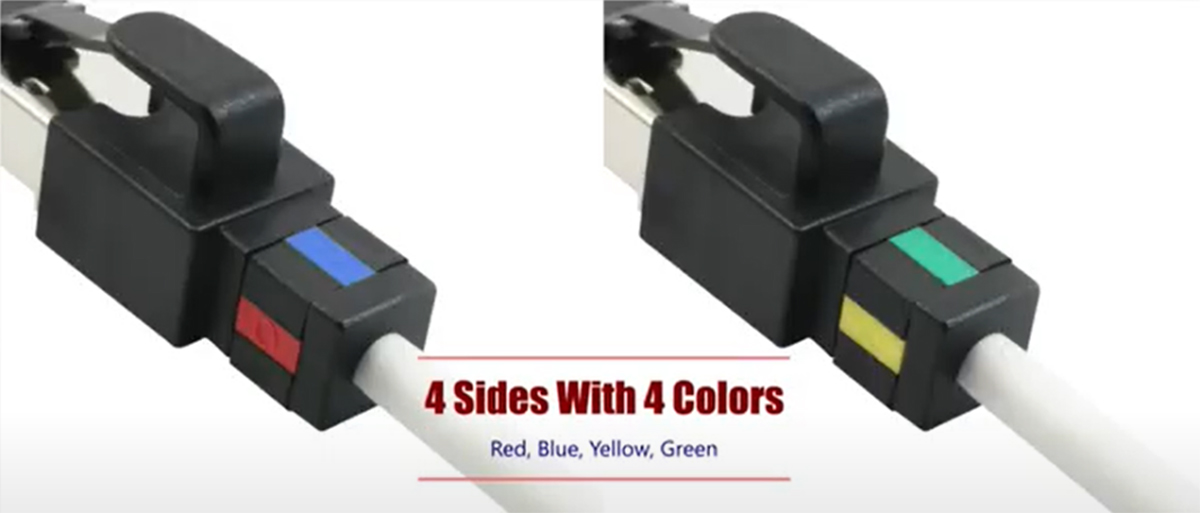

● 4-Side Interchangeable Color Clips for Color-Coding
● Excellent EMI Protection with S/FTP Shielding
● Lightweight & Flexible Cable Design
● High-Quality RJ45 Connectors
● UL Certified; RoHS & REACH Compliant
● OEM / ODM Customization Available

• EXW Part No. & Description

6ASSXXRotatable : Cat.6A S/FTP Stranded Round Rotatable SLIM Patch Cord, Molded, PVC/LSOH/TPE/PUR

• Quality Assurance

100% Cat.6A Component Test for the length within 5M (provide original test data to our customer)

• Certificate

UL/ETL/4PPoE/CE Certified & Comply with RoHS & REACH

• Application

* Ethernet Networking
* Computer Networking Project
* Audio & Data Transmission
* Digital Networking
* Broadband Networking Communication

• EXW Strandard Color Code

• Standard Package Rate

Length(M)	Cat.6A S/FTP (pcs)	N.W(KG)	G.W(KG)	Packing Method	Carton Size
0.5	200	6.36	7.36	1pc/blank bag with label	400375290MM(0.0435CBM)
1	120	6.28	7.58
2	100	9.03	10.03
3	80	9.89	10.89
5	50	9.75	10.75
10	25	9.73	10.73

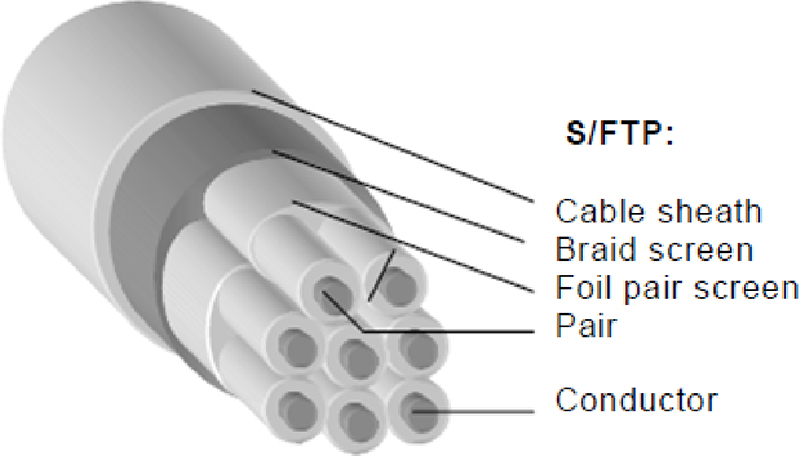

Cable Constructure

white - blue/blue

white - orange/orange

white - green/green

white - brown/brown

• Component

Conductor:	AWG 30 (Stranded Copper 7x 0.1mm),4-Pair ,8C
Insulation:	PE
Insulation Diameter:	0.68 ± 0.05mm
Braid Shield (Tinned Copper):	16/5/0.10T
Coverage:	≥50%
Jacket:	PVC/LSOH/TPE/PUR
Jacket Diameter:	4.5 ± 0.2mm

• Electrical Characteristics

NEXT Requirement:	1dB margin compared to ANSI/TIA/EIA-568-C.2 Limit
Return loss Requirement:	1dB margin compared to ANSI/TIA/EIA-568-C.2 Limit
Current Rating:	1.5 A
Insulation Resistance:	100 MΩ min.
Contact Resistance:	20 mΩ max.
Dielectric Strength:	500 VAC (rms)
Voltage:	72 VDC max.

• Mechanical characteristics

Insertion Life:	750 mating cycles
Installation Temperature:	0/50℃
Operation & Storage Temperature:	-20/60℃
Cable to Plug Tensile Strength:	20pound(min)
Pulling Force:	10N(max)
