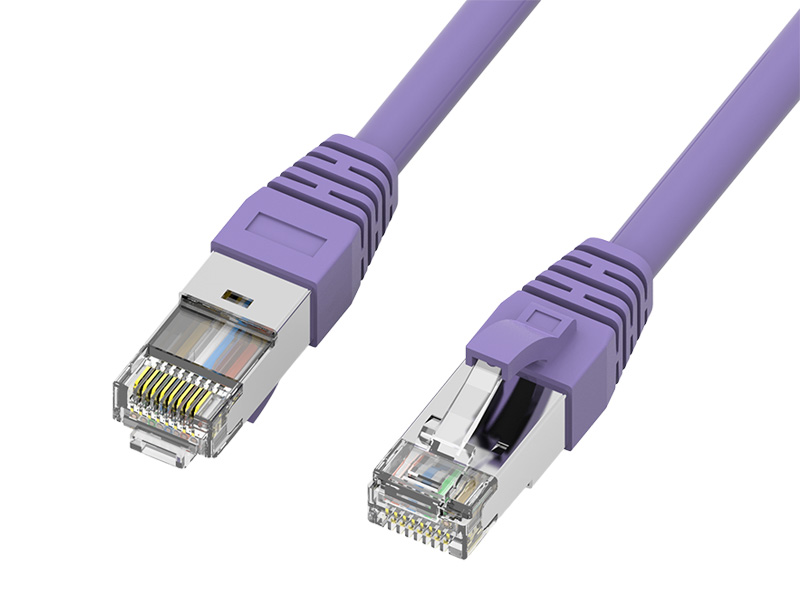

Cat.6A U/FTP Patch Cord | Fluke Tested 10G Shielded RJ45 Ethernet Cable

EXW Cat.6A U/FTP Patch Cord is a shielded 10G Ethernet cable designed for data centers, enterprise networks, PoE applications, and high-speed structured cabling systems.

It supports stable 10G transmission and 4PPoE applications, with 100% Fluke component testing by DSX-8000 & DSX-5000 to ensure reliable network performance and low interference transmission.

Made with bare copper conductors and 50U" gold-plated RJ45 plugs, this Cat.6A patch cord provides excellent shielding performance and stable connectivity for high-density network environments.

EXW provides OEM and ODM Cat.6A patch cord solutions for global network brands.

Key Features

● Fluke Tested Cat.6A U/FTP Patch Cord
● Supports 10G Ethernet & 4PPoE Applications
● 100% Component Tested by DSX-8000 & DSX-5000
● U/FTP Shielding for Excellent EMI Protection
● 50U" Gold-Plated RJ45 Connectors
● Bare Copper Conductors
● Stable & Low Interference Transmission
● Up to 1200 Mating Cycles
● Operating Temperature: -10°C to 60°C
● Compliant with ISO/IEC 11801 & ANSI/TIA-568.2-E
● UL, ETL, DELTA, CE Certified; RoHS & REACH Compliant
● OEM / ODM Customization Available

• EXW Part No. & Description

6AUFXX : Cat.6A U/FTP Stranded Round Patch Cord, Molded,PVC/LSOH/TPE/PUR

• Quality Assurance

100% Cat.6A Component Test (provide original test data to our customer)

• Certificate

UL/ETL/DELTA/4PPoE/CE Certified & Comply with RoHS & REACH

• Application

* Ethernet Networking

* Computer Networking Project

* Audio & Data Transmission

* Digital Networking

* Broadband Networking Communication

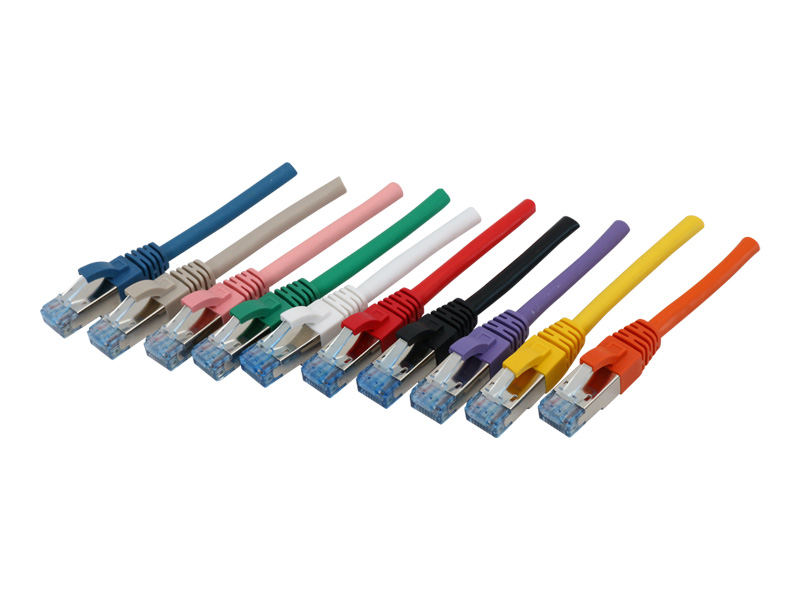

• EXW Standard Color Code

• Standard Package Rate

Length(M)	Cat.6A U/FTP (pcs)	N.W(KG)	G.W(KG)	Packing Method	Carton Size
0.5	200	6.61	7.61	1pc/blank bag with label	400375290MM(0.0435CBM)
1	120	6.53	7.53
2	100	9.28	10.28
3	80	10.14	11.14
5	50	10.00	11.00
10	25	9.98	10.98
15	25	14.40	15.40
20	18	13.56	14.56

Wire Colour Code

white - blue/blue

white - orange/orange

white - green/green

white - brown/brown

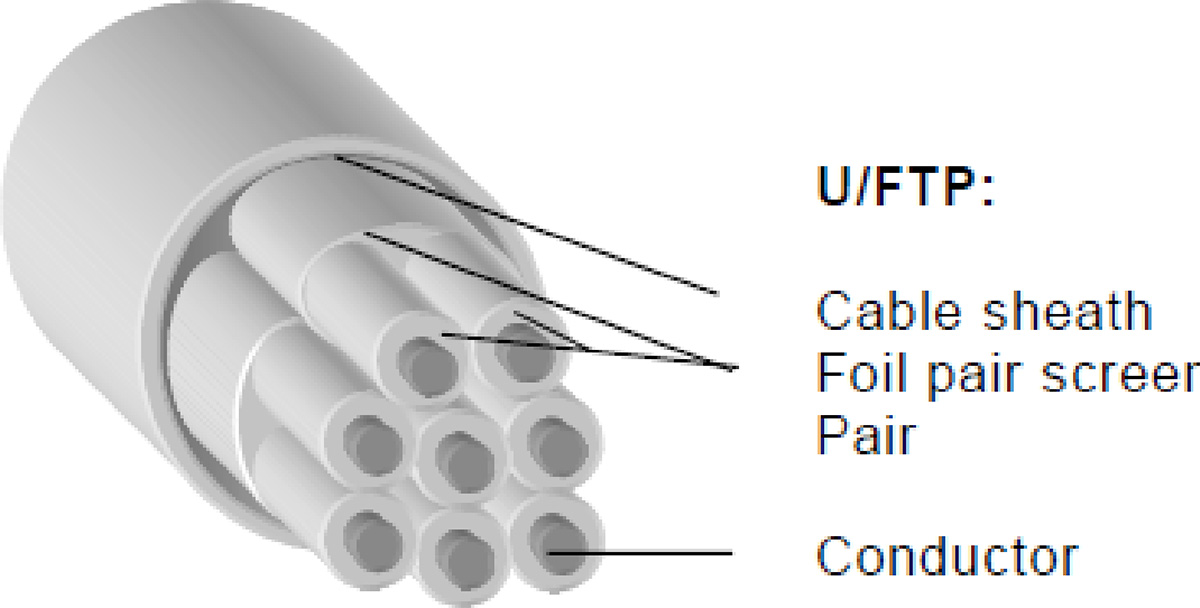

• Component

Conductor:	AWG 26 (Stranded Copper 7x 0.16mm),4-Pair ,8C
Insulators:	PE
Insulators Diameter:	1.02 ± 0.05mm
Braid Shield (Tinned Copper):	Aluminum/Polyester
Coverage:	≥125%
Jacket:	PVC/LSOH/TPE/PUR
Jacket Diameter:	6.2 ± 0.2mm

• Electrical Characteristics

NEXT Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Return loss Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Current Rating:	1.5 A
Insulation Resistance:	100 MΩ min
Contact Resistance:	20 mΩ max
Dielectric Strength:	500 VAC (rms)
Voltage:	72 VDC max

• Mechanical characteristics

Insertion Life:	750 mating cycles
Installation Temperature:	0/50℃
Operation & Storage Temperature:	-20/60℃
Cable to Plug Tensile Strength:	20pound(min)
Pulling Force:	10N(max)
