Cat.6A STP 3R Modular Plug | Shielded RJ45 8P8C Connector for 10G Ethernet Cabling

EXW Cat.6A STP 3R Modular Plug is a high-quality shielded RJ45 8P8C connector designed for 10G Ethernet cabling, structured network installations, and 4PPoE applications.

With STP shielding structure, this modular plug delivers stable transmission and enhanced EMI protection for demanding network environments and high-speed networking applications.

Supporting 24AWG to 26AWG cables, it provides reliable connectivity and long-term durability for enterprise and data network installations.

Made with imported raw materials and high-quality gold-plated contacts, it offers excellent conductivity and stable signal performance.

Each modular plug is inspected by AOI (Automatic Optical Inspection) machines to ensure stable quality and consistent production performance.

EXW provides OEM and ODM modular plug solutions for global network brands.

Key Features

● Cat.6A STP 3R Modular Plug
● Shielded RJ45 8P8C Connector for 10G Ethernet
● Supports 4PPoE Applications
● Supports 24AWG to 26AWG Cable
● Gold Plating Options: 50u", 30u", 15u", 6u", 3u", Flash
● Excellent EMI Protection
● Up to 1200 Mating Cycles
● AOI Inspected for Stable Quality
● Compliant with ISO/IEC 11801-1 & ANSI/TIA-568.2-E
● Follow IEC 60603-7 for RJ45 8-Way Connector
● Meet FCC Standard
● UL / PoE+ / CE Certified
● RoHS & REACH Compliant
● Special Designed Boot Available
● OEM / ODM Customization Available

• Part No. & Description

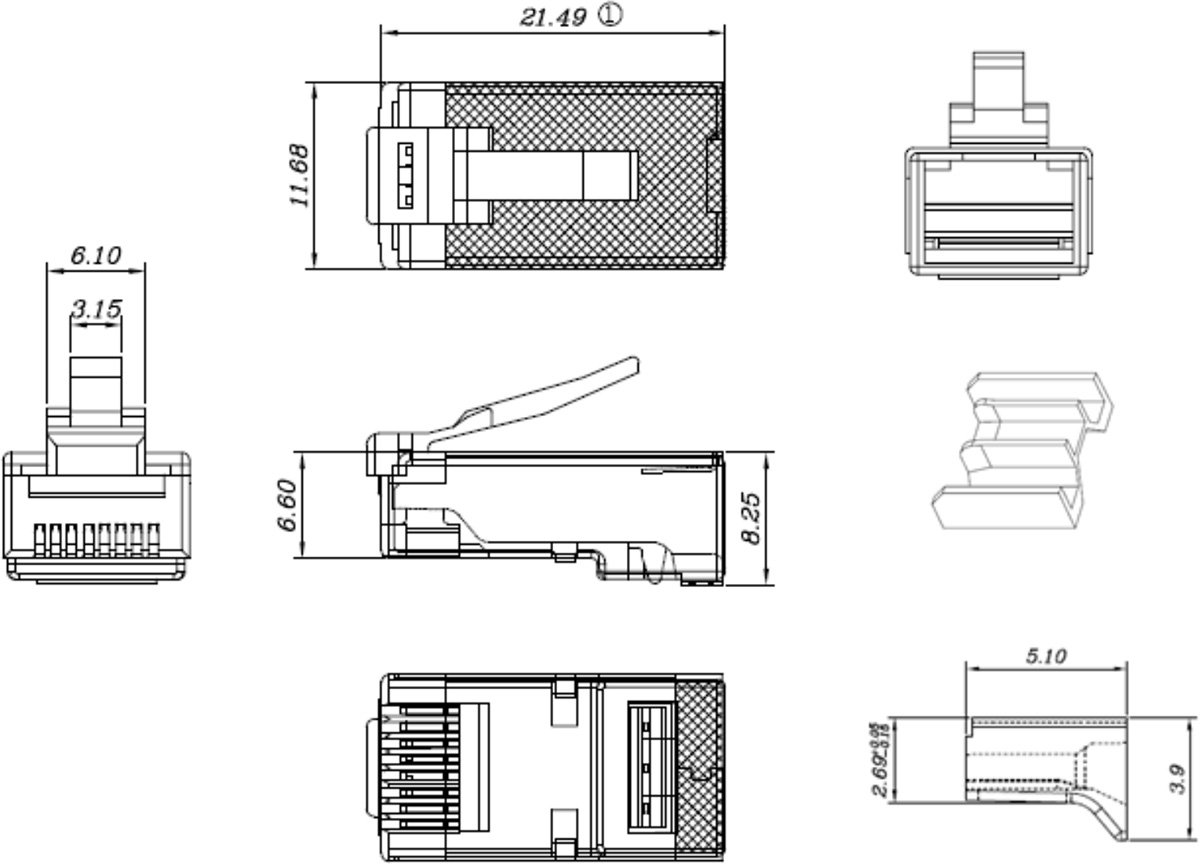

C6R5Z50V2SIL-3R : Cat.6A STP modular plug designed for Cat.6A Solid & Stranded STP lan cable.

• Quality Assurance

Each modular plug is inspected by AOI machine (Automatic Optic Inspection) to guarantee the quality.

• Certificate

UL/4PPoE Certified & Comply with RoHS & REACH

• Application

Meet the stringent requirement of LAN and sustain a consistent impedance at high frequencies up to 500MHz.

• Different Color Available

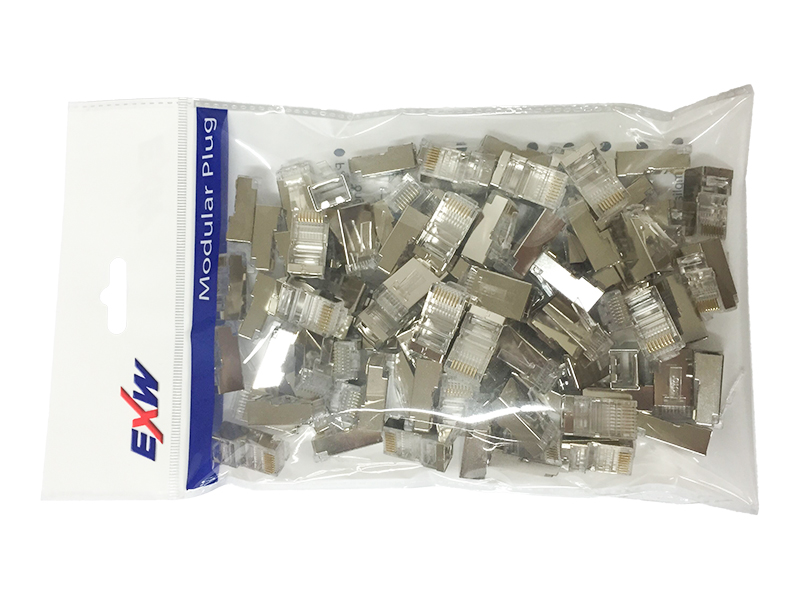

• Standard Package Rate

Spec.	Packing Rate (pcs)	N.W(KG)	G.W(KG)	Packing Method	Carton Size
Cat.6A STP Plug	10,000	23.50	24.80	1,000pcs/blank bag 2 inner boxes/Carton	516362320MM(0.06CBM)

•Electrical Characteristics

UL Application:	250 Valts AC max, AT AMP
Dielectric Withstanding Voltage:	500 Volts AC
Insulation Resistance:	100MΩ
Termination:	Resistance 20MΩ max after environmental testing

•Mechanical characteristics

Insertion Life:	750 mating cycles
Installation Temperature :	0/50℃
Operation & Storage Temperature :	-20/60℃
Cable to Plug Tensile Strength:	20pound(min)
Pulling Force:	10N(max)

•Component

Housing:	Polycarbonate, UL94V-2 or UL94V-0
Gold Plating:	50u", 30u", 15u", 6u", 3u" or flash
Contact Blade:	Copper Alloy
Contact:	Stradded or Solid Wire, from 24 AWG to 26AWG
Color:	Transparent or other color
