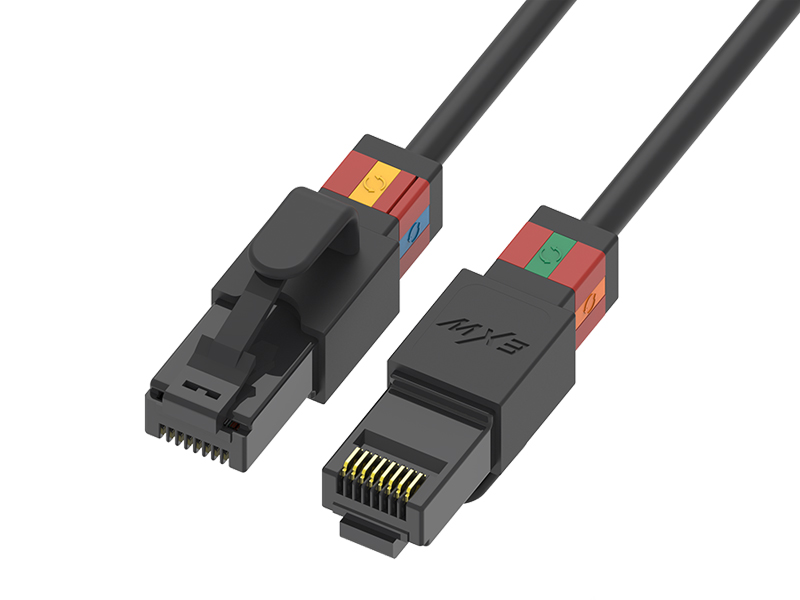

Rotatable Cat.6 U/UTP Patch Cord 28AWG | Slim Gigabit Ethernet Cable for High-Density Cabling

EXW Rotatable Cat.6 U/UTP Patch Cord is a slim 28AWG Ethernet cable designed for enterprise networks, office cabling, and high-density structured cabling systems.

Featuring a rotatable colored boot with interchangeable clips, this patch cord simplifies cable management and color-coding for organized network installation.

Made with an ultra-slim and lightweight cable structure, it delivers stable Gigabit Ethernet transmission and flexible installation performance in limited spaces.

EXW provides OEM and ODM rotatable patch cord solutions for global network brands.

Key Features

● Rotatable Cat.6 U/UTP Patch Cord
● Slim 28AWG Design for High-Density Cabling
● Supports Gigabit Ethernet Applications
● Rotatable Colored Boot for Easy Cable Management
● 4-Side Interchangeable Color Clips for Color-Coding
● Lightweight & Flexible Cable Design
● Stable Transmission Performance
● High-Quality RJ45 Connectors
● UL Certified; RoHS & REACH Compliant
● OEM / ODM Customization Available

• EXW Part No. & Description

6UTXXrotatable : Cat.6 U/UTP Stranded Round Rotatable SLIM Patch Cord, Molded, PVC/LSOH/TPE/PUR

• Quality Assurance

100% Cat.6 Component Test for the length within 5M (provide original test data to our customer)

• Certificate

UL/ETL/4PPoE/CE Certified & Comply with RoHS & REACH

• Application

* Ethernet Networking

* Computer Networking Project

* Audio & Data Transmission

* Digital Networking

* Broadband Networking Communication

• EXW Strandard Color Code

• Standard Package Rate

Length(M)	Cat.6A U/UTP (pcs)	N.W(KG)	G.W(KG)	Packing Method	Carton Size
0.5	500	7.03	8.03	1pc/blank bag with label	400375290MM(0.0435CBM)
1	300	8.44	9.44
2	200	9.79	10.79
3	150	12.66	13.66
5	80	11.67	12.67
10	40	11.25	12.25

Wire Colour Code

white - blue/blue

white - orange/orange

white - green/green

white - brown/brown

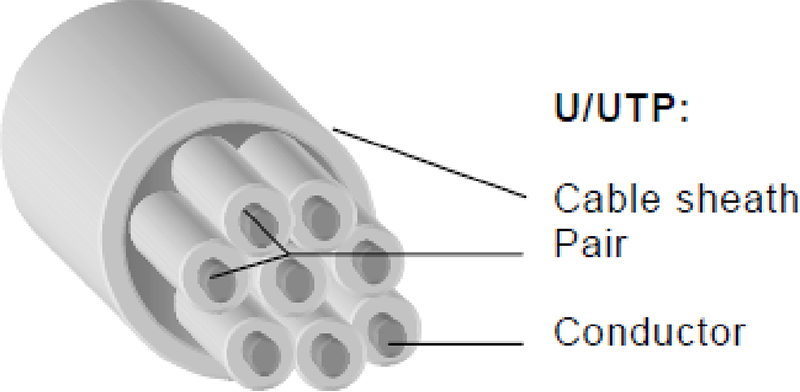

• Component

Conductor:	AWG 28 (Stranded Copper 7x 0.127mm),4-Pair ,8C
Insulation:	PE
Insulation Diameter:	0.64 ± 0.05mm
Nom. Thickness:	0.13mm
Jacket:	PVC/LSOH/TPE/PUR
Jacket Diameter:	3.9 ± 0.2mm

• Electrical Characteristics

NEXT Requirement:	1dB margin compared to ANSI/TIA/EIA-568-C.2 Limit
Return loss Requirement:	1dB margin compared to ANSI/TIA/EIA-568-C.2 Limit
Current Rating:	1.5 A
Insulation Resistance:	100 MΩ min.
Contact Resistance:	20 mΩ max.
Dielectric Strength:	500 VAC (rms)
Voltage:	72 VDC max.

• Mechanical characteristics

Insertion Life:	750 mating cycles
Installation Temperature:	0/50℃
Operation & Storage Temperature:	-20/60℃
Cable to Plug Tensile Strength:	20pound(min)
Pulling Force:	10N(max)
