Cat.6 UTP RJ45 Modular Plug | 8P8C Ethernet Connector for Structured Cabling

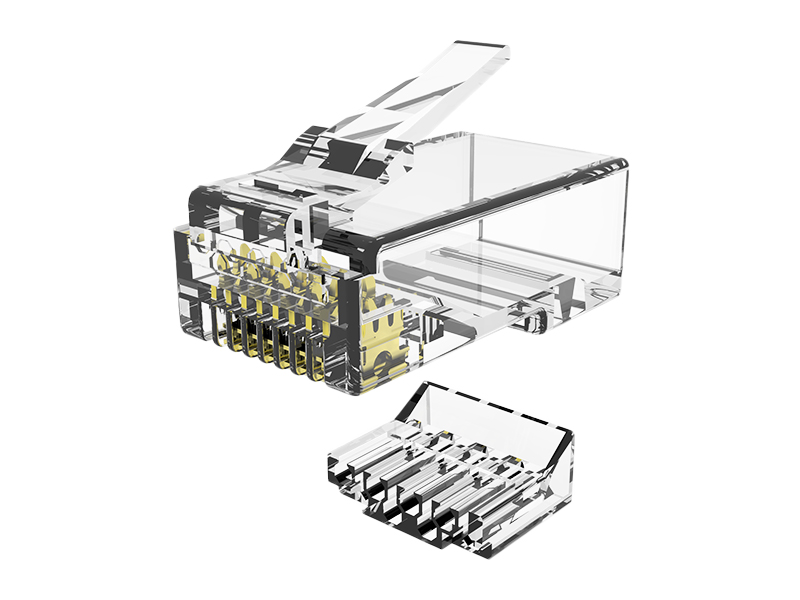

EXW Cat.6 UTP RJ45 Modular Plug is a high-quality 8P8C Ethernet connector designed for structured cabling, Gigabit Ethernet networks, and 4PPoE applications.

Featuring a 4+4 plug hole structure design, this modular plug provides stable wire arrangement, reliable termination performance, and consistent signal transmission for network installations.

Designed for 24AWG to 26AWG cables, it delivers reliable connectivity and long-term durability for enterprise and daily networking environments.

Made with imported raw materials and high-quality gold-plated contacts, it offers excellent conductivity and stable network performance.

Each modular plug is inspected by AOI (Automatic Optical Inspection) machines to ensure stable quality and consistent production performance.

EXW provides OEM and ODM RJ45 modular plug solutions for global network brands.

Key Features

● Cat.6 UTP RJ45 Modular Plug
● 8P8C Ethernet Connector Design
● 4+4 Plug Hole Structure Design
● Supports 4PPoE Applications
● Supports 24AWG to 26AWG Cable
● Gold Plating Options: 50u", 30u", 15u", 6u", 3u", Flash
● Up to 1200 Mating Cycles
● AOI Inspected for Stable Quality
● Compliant with ISO/IEC 11801-1 & ANSI/TIA-568.2-E
● Follow IEC 60603-7 for RJ45 8-Way Connector
● Meet FCC Standard
● UL / PoE+ / CE Certified
● RoHS & REACH Compliant
● Special Designed Boot Available
● OEM / ODM Customization Available

• Part No. & Description

P88R5Z50V2IT: Cat.6 UTP modular plug designed for Cat.6 Solid & Stranded UTP lan cable.

• Quality Assurance

Each modular plug is inspected by AOI machine (Automatic Optic Inspection) to guarantee the quality.

• Certificate

UL/4PPoE Certified & Comply with RoHS & REACH

• Application

Meet the stringent requirement of LAN and sustain a consistent impedance at high frequencies up to 250MHz.

• Different Color Available

• Standard Package Rate

Spec.	Packing Rate (pcs)	N.W(KG)	G.W(KG)	Packing Method	Carton Size
Cat.6 UTP Plug	10,000	15.20	16.34	1,000pcs/blank bag 2 inner boxes/Carton	516362320MM(0.06CBM)

•Electrical Characteristics

UL Application:	250 Valts AC max, AT AMP
Dielectric Withstanding Voltage:	500 Volts AC
Insulation Resistance:	100MΩ
Termination:	Resistance 20MΩ max after environmental testing

•Mechanical characteristics

Insertion Life:	750 mating cycles
Installation Temperature :	0/50℃
Operation & Storage Temperature :	-20/60℃
Cable to Plug Tensile Strength:	20pound(min)
Pulling Force:	10N(max)

•Component

Housing:	Polycarbonate, UL94V-2 or UL94V-0
Gold Plating:	50u", 30u", 15u", 6u", 3u" or flash
Contact Blade:	Copper Alloy
Contact:	Stradded or Solid Wire, from 24 AWG to 26AWG
Color:	Transparent or other color
