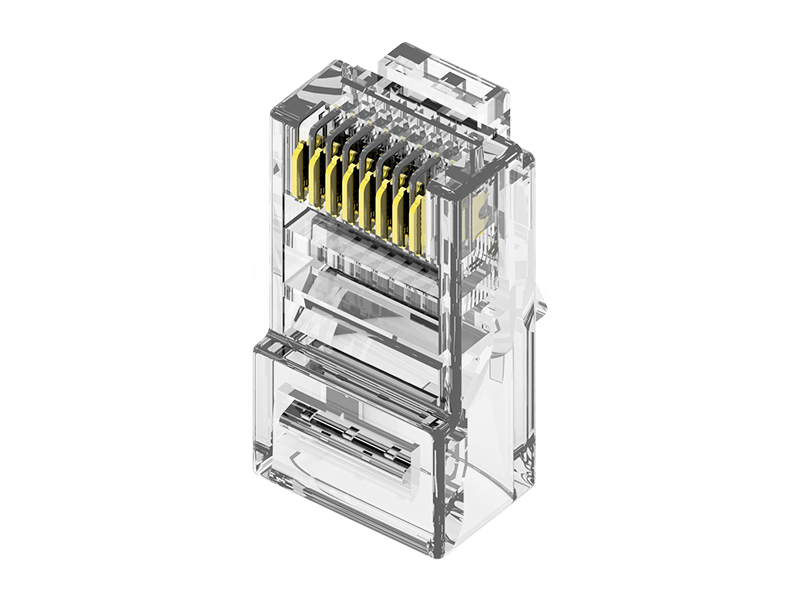

Cat.5E UTP 8P8C Modular Plug | RJ45 Ethernet Connector for Structured Cabling

EXW Cat.5E UTP 8P8C Modular Plug is a high-quality RJ45 Ethernet connector designed for structured cabling, Gigabit Ethernet networks, and 4PPoE applications.

Designed for stable transmission and reliable connectivity, this modular plug is suitable for office networks, telecom systems, and daily networking environments.

Supporting 24AWG to 26AWG cables, it provides reliable termination performance and long-term durability for Ethernet cabling applications.

Made with imported raw materials and high-quality gold-plated contacts, it offers excellent conductivity and stable network performance.

Each modular plug is inspected by AOI (Automatic Optical Inspection) machines to ensure stable quality and consistent production performance.

EXW provides OEM and ODM RJ45 modular plug solutions for global network brands.

Key Features
● Cat.5E UTP 8P8C Modular Plug
● RJ45 Ethernet Connector Design
● Supports 4PPoE Applications
● Supports 24AWG to 26AWG Cable
● Gold Plating Options: 50u", 30u", 15u", 6u", 3u", Flash
● Up to 1200 Mating Cycles
● AOI Inspected for Stable Quality
● Compliant with ISO/IEC 11801-1 & ANSI/TIA-568.2-E
● Follow IEC 60603-7 for RJ45 8-Way Connector
● Meet FCC Standard
● UL / PoE+ / CE Certified
● RoHS & REACH Compliant
● Special Designed Boot Available
● OEM / ODM Customization Available

• Part No. & Description

P88RE50V2 : Cat.5E UTP Modular Plug designed for Stranded UTP Lan Cable.
P88RY50V2 : Cat.5E UTP Modular Plug designed for Stranded & Solid UTP Lan Cable.

• Quality Assurance

Each modular plug is inspected by AOI machine (Automatic Optic Inspection) to guarantee the quality.

• Certificate

UL/4PPoE Certified & Comply with RoHS & REACH

• Application

Meet the stringent requirement of LAN and sustain a consistent impedance at high frequencies up to 100MHz.

• Different Color Available

• Standard Package Rate

Spec.	Packing Rate (pcs)	N.W(KG)	G.W(KG)	Packing Method	Carton Size
Cat.5E UTP Plug	10,000	15.7	17.0	1,000pcs/blank bag 2 inner boxes/Carton	400375290MM(0.0435CBM)

•Electrical Characteristics

UL Application:	250 Valts AC max, AT AMP
Dielectric Withstanding Voltage:	500 Volts AC
Insulation Resistance:	100MΩ
Termination:	Resistance 20MΩ max after environmental testing

•Mechanical characteristics

Insertion Life:	750 mating cycles
Installation Temperature :	0/50℃
Operation & Storage Temperature :	-20/60℃
Cable to Plug Tensile Strength:	20pound(min)
Pulling Force:	10N(max)

•Component

Housing:	Polycarbonate, UL94V-2 or UL94V-0
Gold Plating:	50u", 30u", 15u", 6u", 3u" or flash
Contact Blade:	Copper Alloy
Contact:	Stradded or Solid Wire, from 24 AWG to 26AWG
Color:	Transparent or other color
