Cat.6 Antibacterial S/FTP Patch Cord | Antimicrobial Shielded Ethernet Cable for Healthcare Networks

EXW Cat.6 Antibacterial S/FTP Patch Cord is an antimicrobial shielded Ethernet cable designed for hospitals, healthcare facilities, hotels, and hygiene-sensitive network environments.

Made with special antibacterial materials for the cable, plug, and molding, this patch cord helps reduce bacterial growth and supports cleaner network installations.

Its antimicrobial performance complies with ISO 22196:2011, while S/FTP shielding structure and 100% Fluke component testing by DSX-8000 & DSX-5000 ensure stable transmission, excellent EMI protection, and reliable network performance.

Made with bare copper conductors and 50U" gold-plated RJ45 plugs, it provides long-term durability and stable connectivity for demanding network applications.

EXW provides OEM and ODM antibacterial patch cord solutions for global network brands.

Key Features

● Antibacterial Cat.6 S/FTP Patch Cord
● Antimicrobial Performance Complies with ISO 22196:2011
● Supports Gigabit Ethernet & 4PPoE Applications
● 100% Fluke Component Tested by DSX-8000 & DSX-5000

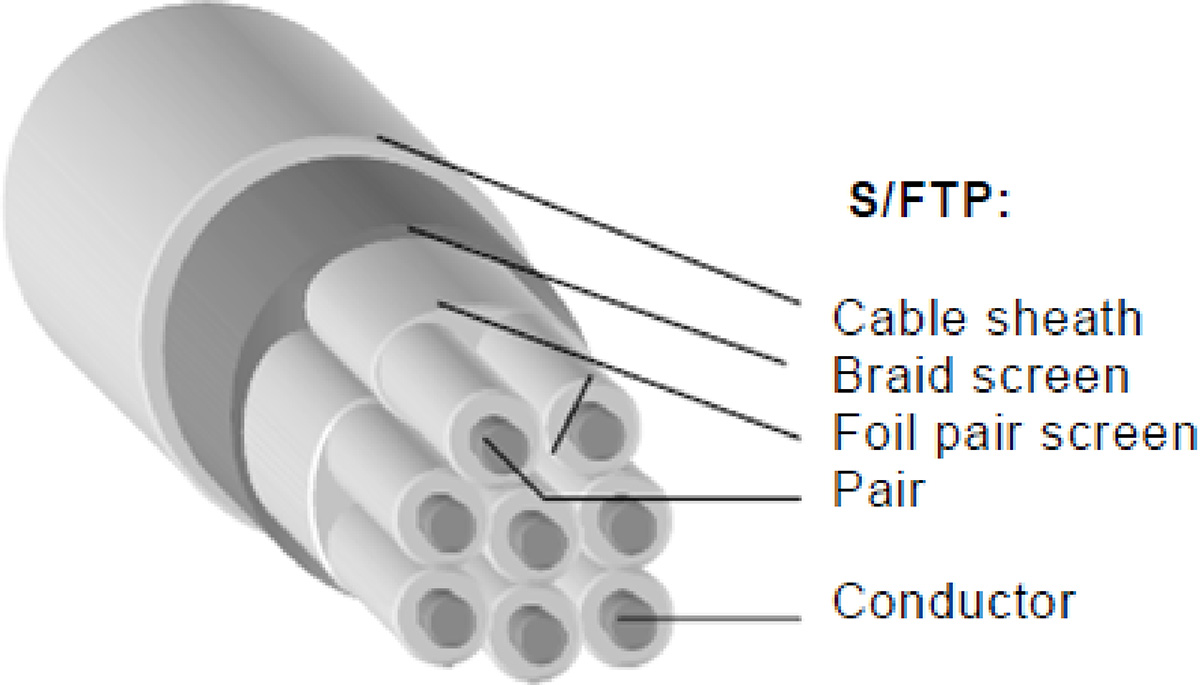

● S/FTP Shielding for Excellent EMI Protection
● Special Antibacterial Cable, Plug & Molding Materials
● 50U" Gold-Plated RJ45 Connectors
● Bare Copper Conductors
● Stable & Low Interference Transmission
● Up to 1200 Mating Cycles
● Operating Temperature: -10°C to 60°C
● Compliant with ISO/IEC 11801 & ANSI/TIA-568.2-E
● UL, ETL, DELTA, CE Certified; RoHS & REACH Compliant
● Suitable for Hospitals, Hotels & Healthcare Applications
● OEM / ODM Customization Available

• EXW Part No. & Description

6SSXXAntibacterial : Cat.6 S/FTP Stranded Round Antibacterial Patch Cord, Molded, PVC/LSOH/TPE/PUR

• Quality Assurance

100% Cat.6 Component Test (provide original test data to our customer)

• Certificate

UL/ETL/DELTA/4PPoE/CE Certified & Comply with RoHS & REACH

• Application

* Ethernet Networking

* Computer Networking Project

* Audio & Data Transmission

* Digital Networking

* Broadband Networking Communication

• EXW Standard Color Code

• Standard Package Rate

Length(M)	Cat.6 S/FTP (pcs)	N.W(KG)	G.W(KG)	Packing Method	Carton Size
0.5	200	6.67	7.67	1pc/blank bag with label	400375290MM(0.0435CBM)
1	120	6.59	7.59
2	100	9.34	10.34
3	80	10.20	11.20
5	50	10.06	11.06
10	25	10.04	11.04
15	25	14.46	15.46
20	18	13.62	14.62

Wire Colour Code

white - blue/blue

white - orange/orange

white - green/green

white - brown/brown

• Component

Conductor:	AWG 26 (Stranded Copper 7x 0.16mm),4-Pair ,8C
Insulators:	PE
Insulation Diameter:	1.02 ± 0.05mm
Braid Shield (Tinned Copper):	16/5/0.10T
Coverage:	≥40%
Jacket:	PVC/LSOH/TPE/PUR
Jacket Diameter:	6.2 ± 0.2mm

• Electrical Characteristics

NEXT Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Return loss Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Current Rating:	1.5 A
Insulation Resistance:	100 MΩ min
Contact Resistance:	20 mΩ max
Dielectric Strength:	500 VAC (rms)
Voltage:	72 VDC max

• Mechanical characteristics

Insertion Life:	750 mating cycles
Installation Temperature:	0/50℃
Operation & Storage Temperature:	-20/60℃
Cable to Plug Tensile Strength:	20pound(min)
Pulling Force:	10N(max)
