90 Degree Angled Patch Cord | Cat.6A U/UTP RJ45 Ethernet Cable for Tight Space Cabling

EXW 90 Degree Angled Patch Cord is a Cat.6A U/UTP Ethernet cable designed for tight spaces, special bending situations, and high-density structured cabling systems.

Featuring a 90-degree angled connector design, this patch cord helps reduce cable bending stress and improve cable routing in limited installation environments.

With 100% component testing, it delivers stable transmission and reliable network connectivity for enterprise and daily network applications.

Made with bare copper conductors and 50U" gold-plated RJ45 plugs, it provides long-term durability and stable network performance.

EXW provides OEM and ODM angled patch cord solutions for global network brands.

Key Features

● 90 Degree Angled RJ45 Patch Cord Design
● Cat.6A U/UTP Ethernet Cable
● Ideal for Tight Space & Special Bending Applications
● Supports 10G Ethernet & 4PPoE Applications
● 100% Component Tested
● 50U" Gold-Plated RJ45 Connectors
● Bare Copper Conductors
● Stable Transmission Performance
● Up to 1200 Mating Cycles
● Operating Temperature: -10°C to 60°C
● Compliant with ISO/IEC 11801 & ANSI/TIA-568.2-E
● UL, ETL, DELTA, CE Certified; RoHS & REACH Compliant
● Cat.6A / Cat.6 / Cat.5E Shielded & Unshielded Available
● OEM / ODM Customization Available

• EXW Part No. & Description

6AUTXX90Degree : Cat.6A 90 Degree Angled U/UTP Stranded Round Patch Cord, Molded, PVC/LSOH/TPE/PUR

• Quality Assurance

100% Cat.6A Component Test (provide original test data to our customer)

• Certificate

UL/ETL/DELTA/4PPoE/CE Certified & Comply with RoHS & REACH

• Application

* Ethernet Networking

* Computer Networking Project

* Audio & Data Transmission

* Digital Networking

* Broadband Networking Communication

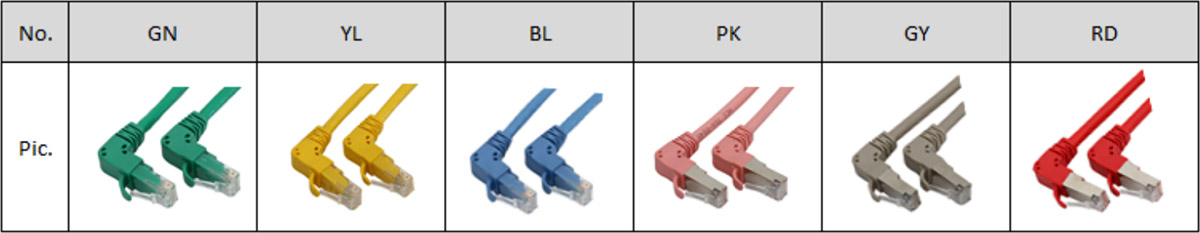

• EXW Standard Color Code

• Standard Package Rate

Length(M)	Cat.6A S/FTP (pcs)	N.W(KG)	G.W(KG)	Packing Method	Carton Size
0.5	200	6.67	7.67	1pc/blank bag with label	400375290MM(0.0435CBM)
1	120	6.59	7.59
2	100	9.34	10.34
3	80	10.20	11.20
5	50	10.06	11.06
10	25	10.04	11.04
15	25	14.46	15.46
20	18	13.62	14.62

Wire Colour Code

white - blue/blue

white - orange/orange

white - green/green

white - brown/brown

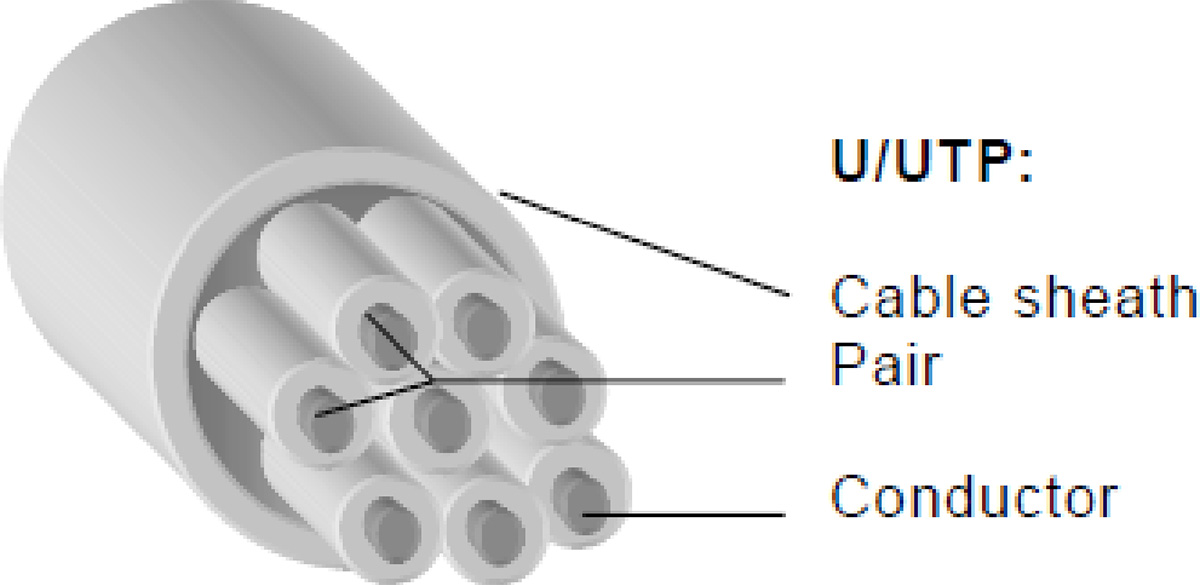

• Component

Conductor:	AWG 24 (Stranded Copper 7x 0.2mm),4-Pair ,8C
Insulators:	PE
Insulation Diameter:	0.97 ± 0.05mm
Nom. Thickness:	0.18mm
Separator:	PE Cross
Jacket:	PVC/LSOH/TPE/PUR
Jacket Diameter:	6.0 ± 0.2mm

• Electrical Characteristics

NEXT Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Return loss Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Current Rating:	1.5 A
Insulation Resistance:	100 MΩ min
Contact Resistance:	20 mΩ max
Dielectric Strength:	500 VAC (rms)
Voltage:	72 VDC max

• Mechanical characteristics

Insertion Life:	750 mating cycles
Installation Temperature:	0/50℃
Operation & Storage Temperature:	-20/60℃
Cable to Plug Tensile Strength:	20pound(min)
Pulling Force:	10N(max)
