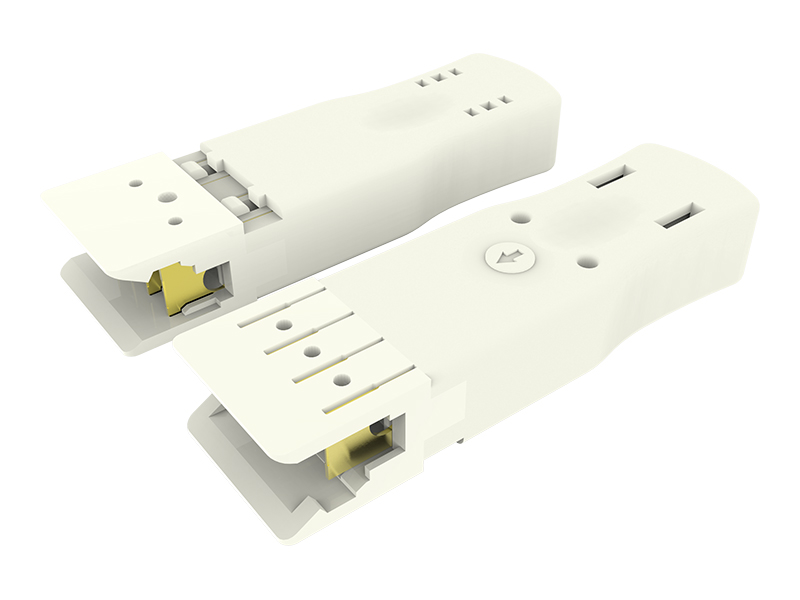

2 pairs 110 Connector

EXW has high quality 110 4 pairs & 110 2 pairs & 110 1 pair connector.

We have complete production lines with flexible lead-time.

● Meet the Date & Fax & Voice Application

● 110 4Paris / 2 Pairs / 1 Pair Available

● Connector Color: Transparent / Ivory Color for Option

● Certified by CE

● Comply with RoHS & REACH

● Operation Temperature Range:-10~60 ℃.

Welcome OEM/ODM. EXW is Your Best Choice!

Standards & Features

Features:

● Comply with RoHS & REACH
● 110 4Pairs,2Pairs,1Pairs are all available.

Product Description

Part No. & Description
110 2Pairs : 110 2pairs connector.
Quality Assurance
100% inspection before shipment.
Certificate
Comply with RoHS & REACH
Application
Meet the stringent requirement of LAN and sustain a consistent impedance at high frequencies up to 100MHz.
Different Color Available
Standard Package Rate

Spec.

Packing Rate(pcs)

N.W(KG)

G.W(KG)

Packing Method

Carton Size

110 2PR Plug

1,600

8.44

9.44

1,000pcs/blank bag 2 inner boxes/Carton

496*362*265MM(0.05CBM)

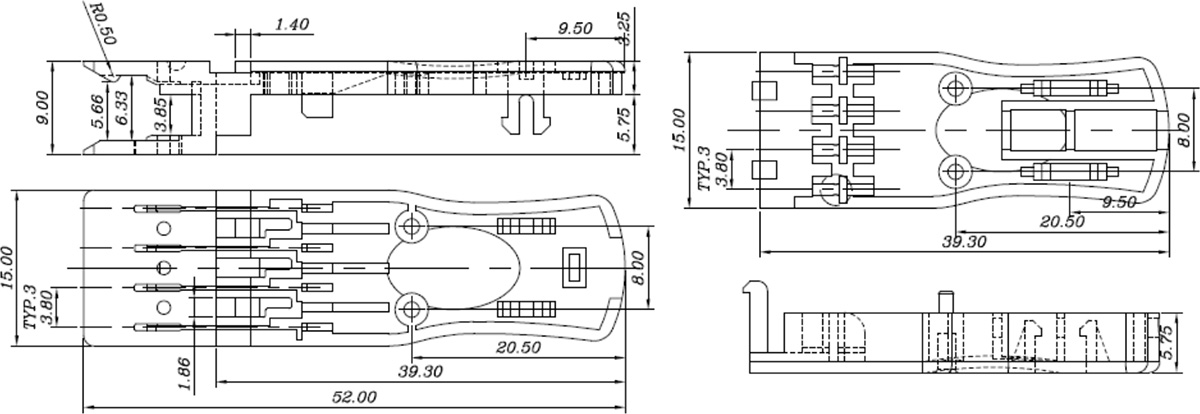

Product Constructure



 •Electrical Characteristics



UL Application:  250 Valts AC max, AT AMP
Dielectric Withstanding Voltage:   500 Volts AC
Insulation Resistance: 100MΩ
Termination: Resistance 20MΩ max after environmental testing



 •Mechanical characteristics



Insertion Life:  750 mating cycles
Installation Temperature : 0/50℃
Operation & Storage Temperature : -20/60℃
Cable to Plug Tensile Strength: 20pound(min)
Pulling Force:    10N(max)



 •Component



Housing: Polycarbonate, UL94V-2 or UL94V-0
Gold Plating: 3U / 0FU"
Contact Blade: Copper Alloy
Contact: Stradded or Solid Wire, from 24 AWG to 26AWG
Color:  Transparent or other color

OEM/ODM Case

With more than 35 years history and profession R & D team,
EXW has rich experiences in producing OEM/ODM cases.
•  Customized Logo on  the Latch of Plug
•  Special Design on Package & Label
•  Different Package Rate Available
•  Different Color Available

110 Connector--1 Pairs, 2Pairs, 4Pairs are all available.
