Cat.5E Dual Color F/UTP Patch Cord | Shielded RJ45 Ethernet Cable for Color-Coded Cabling

EXW Cat.5E Dual Color F/UTP Patch Cord is a shielded Ethernet cable designed for office networks, home networking, and structured cabling systems with color-coded cable management needs.

Featuring a dual-color molding design, this patch cord helps improve cable identification and simplify cable organization in network environments.

With F/UTP shielding structure and 100% continuity testing, it delivers stable transmission, enhanced EMI protection, and reliable network performance. Component testing is also available upon request.

Made with bare copper conductors and 50U" gold-plated RJ45 plugs, it provides stable connectivity and long-term durability.

EXW provides OEM and ODM dual-color patch cord solutions for global network brands.

Key Features

● Dual Color Molded Patch Cord Design
● Cat.5E F/UTP Shielded Ethernet Cable
● Ideal for Color-Coded Cable Management
● 100% Continuity Tested
● Component Test Available Upon Request
● Supports Gigabit Ethernet & 4PPoE Applications
● F/UTP Shielding for Enhanced EMI Protection
● 50U" Gold-Plated RJ45 Connectors
● Bare Copper Conductors
● Stable & Low Interference Transmission
● Up to 1200 Mating Cycles
● Operating Temperature: -10°C to 60°C
● Compliant with ISO/IEC 11801 & ANSI/TIA-568.2-E
● UL, ETL, DELTA, CE Certified; RoHS & REACH Compliant
● Various Colors & Molding Available
● OEM / ODM Customization Available

• EXW Part No. & Description

5EFTXXDual-Color : Cat.5E FTP Stranded Round Dual-Color Patch Cord, Molded, PVC/LSOH/TPE/PUR

• Quality Assurance

100% Continuity Test (Component Test Optional)

• Certificate

UL/ETL/DELTA/4PPoE/CE Certified & Comply with RoHS & REACH

• Application

* Ethernet Networking

* Computer Networking Project

* Audio & Data Transmission

* Digital Networking

* Broadband Networking Communication

• EXW Standard Color Code

• Standard Package Rate

Length(M)	Cat.SE FTP (pcs)	N.W(KG)	G.W(KG)	Packing Method	Carton Size
0.5	300	8.43	9.43	1pc/blank bag with label	400375290MM(0.0435CBM)
1	150	7.21	8.21
2	100	8.91	9.91
3	80	9.89	10.89
5	50	9.51	10.51
10	25	9.38	10.38
15	20	11.46	12.46
20	20	15.65	16.65

Wire Colour Code

white - blue/blue

white - orange/orange

white - green/green

white - brown/brown

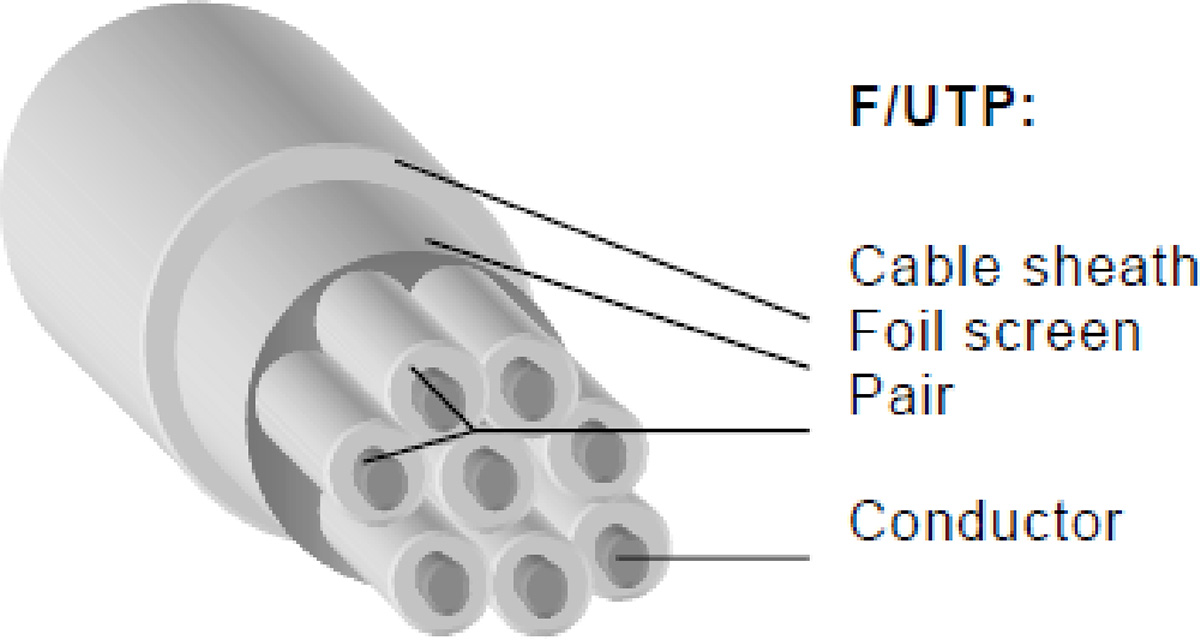

• Component

Conductor:	AWG 26 (Stranded Copper 7x 0.16mm),4-Pair ,8C
Insulators:	PE
Insulation Diameter:	0.9 ± 0.05mm
Shield (Tinned Copper):	Aluminum/Polyester
Coverage:	≥125%
Jacket:	PVC/LSOH/TPE/PUR
Jacket Diameter:	6.0 ± 0.2mm

• Electrical Characteristics

NEXT Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Return loss Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Current Rating:	1.5 A
Insulation Resistance:	100 MΩ min
Contact Resistance:	20 mΩ max
Dielectric Strength:	500 VAC (rms)
Voltage:	72 VDC max

• Mechanical characteristics

Insertion Life:	750 mating cycles
Installation Temperature:	0/50℃
Operation & Storage Temperature:	-20/60℃
Cable to Plug Tensile Strength:	20pound(min)
Pulling Force:	10N(max)
