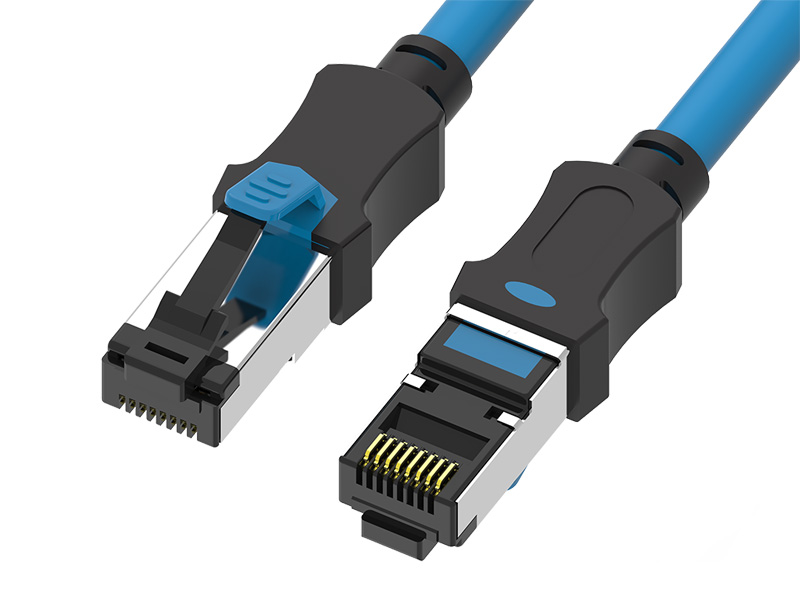

Cat.6A Dual Color S/FTP Patch Cord | 10G Shielded RJ45 Ethernet Cable for Color-Coded Cabling

EXW Cat.6A Dual Color S/FTP Patch Cord is a 10G shielded Ethernet cable designed for enterprise networks, data centers, and structured cabling systems with color-coded cable management needs.

Featuring a dual-color molding design, this patch cord helps simplify cable identification and improve cable organization in high-density network environments.

With S/FTP shielding structure and 100% Fluke component testing by DSX-8000 & DSX-5000, it delivers stable transmission, excellent EMI protection, and reliable network performance.

Made with bare copper conductors and 50U" gold-plated RJ45 plugs, it provides long-term durability and stable connectivity.

EXW provides OEM and ODM dual-color patch cord solutions for global network brands.

Key Features

● Dual Color Molded Patch Cord Design
● Cat.6A S/FTP 10G Shielded Ethernet Cable
● Ideal for Color-Coded Cable Management
● 100% Fluke Component Tested by DSX-8000 & DSX-5000
● Supports 10G Ethernet & 4PPoE Applications
● S/FTP Shielding for Excellent EMI Protection
● 50U" Gold-Plated RJ45 Connectors
● Bare Copper Conductors
● Stable & Low Interference Transmission
● Up to 1200 Mating Cycles
● Operating Temperature: -10°C to 60°C
● Compliant with ISO/IEC 11801 & ANSI/TIA-568.2-E
● UL, ETL, DELTA, CE Certified; RoHS & REACH Compliant
● Various Colors & Molding Available
● OEM / ODM Customization Available

• EXW Part No. & Description

6ASSXXDual-Color : Cat.6A S/FTP Stranded Round Dual-Color Patch Cord, Molded, PVC/LSOH/TPE/PUR

• Quality Assurance

100% Cat.6A Component Test (provide original test data to our customer)

• Certificate

UL/ETL/DELTA/4PPoE/CE Certified & Comply with RoHS & REACH

• Application

* Ethernet Networking

* Computer Networking Project

* Audio & Data Transmission

* Digital Networking

* Broadband Networking Communication

• EXW Standard Color Code

• Standard Package Rate

Length(M)	Cat.6A S/FTP (pcs)	N.W(KG)	G.W(KG)	Packing Method	Carton Size
0.5	200	6.67	7.67	1pc/blank bag with label	400375290MM(0.0435CBM)
1	120	6.59	7.59
2	100	9.34	10.34
3	80	10.20	11.20
5	50	10.06	11.06
10	25	10.04	11.04
15	25	14.46	15.46
20	18	13.62	14.62

Wire Colour Code

white - blue/blue

white - orange/orange

white - green/green

white - brown/brown

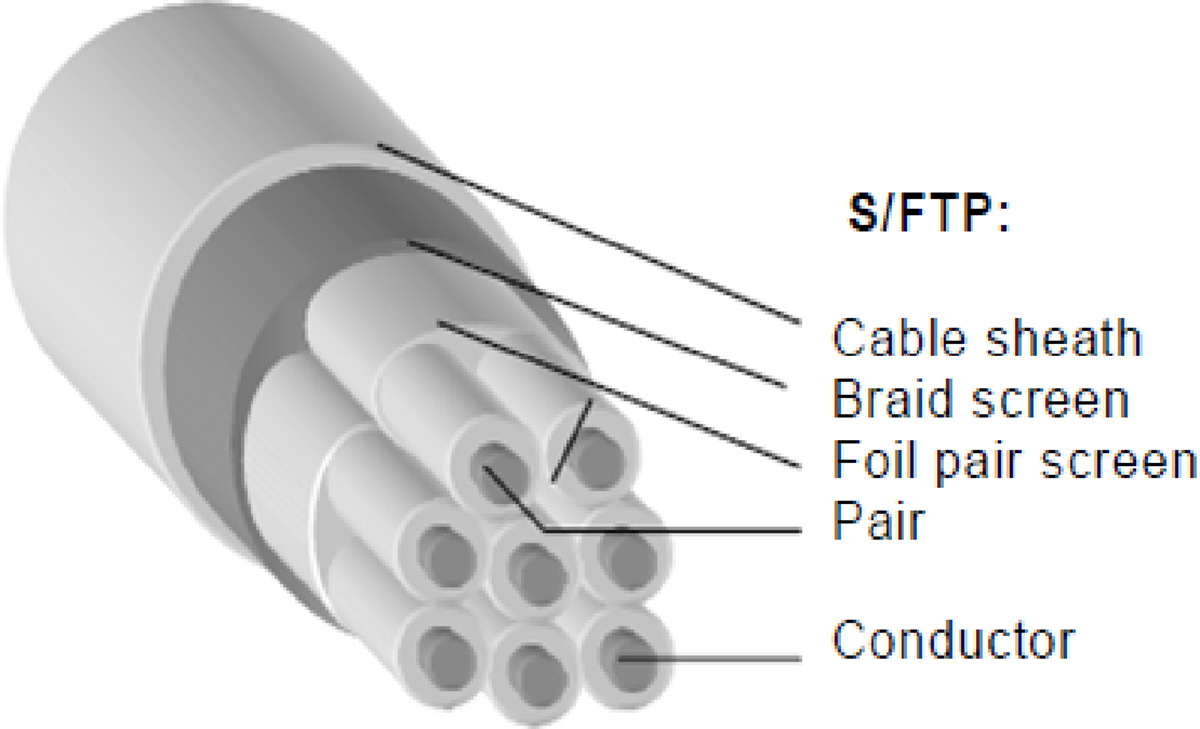

• Component

Conductor:	AWG 26 (Stranded Copper 7x 0.16mm),4-Pair ,8C
Insulators:	PE
Insulation Diameter:	1.02 ± 0.05mm
Braid Shield (Tinned Copper):	16/5/0.10T
Coverage:	≥40%
Jacket:	PVC/LSOH/TPE/PUR
Jacket Diameter:	6.2 ± 0.2mm

• Electrical Characteristics

NEXT Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Return loss Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Current Rating:	1.5 A
Insulation Resistance:	100 MΩ min
Contact Resistance:	20 mΩ max
Dielectric Strength:	500 VAC (rms)
Voltage:	72 VDC max

• Mechanical characteristics

Insertion Life:	750 mating cycles
Installation Temperature:	0/50℃
Operation & Storage Temperature:	-20/60℃
Cable to Plug Tensile Strength:	20pound(min)
Pulling Force:	10N(max)
